12x8x8m Professional Aluminum Stage Roof System with PA Wings

5 0 Reviews

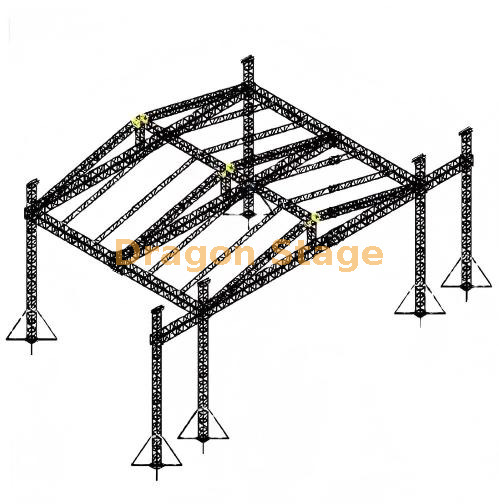

Professional 12m x 8m Aluminum Stage Roof Lighting Truss System - 8m High 4-Pillar Ground Support Structure with Central Reinforcement Beam and Dual 2m Speaker Wings

Price: ￥ 83820


Availability:



Inquire

Brand:
Dragonstage

Product Description

Heavy-duty 12m x 8m aluminum stage roof lighting truss system with an 8m height. Features a robust 4-pillar ground support design, a specialized central reinforcement beam, and dual 2m wide speaker wings. Engineered for professional outdoor concerts, festivals, and high-capacity rigging.

packing weight:2150kg

packing volume:20cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
12.00 m Beam(front)	3 sets	3.00 m	50×3.0	CS389×389	12pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	0pcs
8.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS389×389	4pcs
		2.00 m	50×3.0	CS389×389	2pcs
		1.00 m	50×3.0	CS389×389	0pcs
7.00 m Pillar	4 sets	3.00 m	50×3.0	CS289×289	8pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	4pcs
beam cube	6 faces	CS389×389			2pcs
Frame Tower	Spigot Sleeve Block S				4pcs
	Steel Base S				4pcs
	Top Section S				4pcs
	Manual hoist,BA05 2Tons				4pcs
	Spigot Hinge Section,Height 1m				4pcs
	Fibre sling,BA04,2 tons 3m				4pcs
	Long outrigger				16pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	3 sets	1.20 m	50×3.0	CS289×289	3pcs
8.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	2pcs
		2.00 m	50×3.0	CS289×289	1pcs
		1.00 m	50×3.0	CS289×289	0pcs
6.20 m Oblique Beam	4 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	4pcs
		1.20 m	50×3.0	CS289×289	4pcs
6.20 m Ladder truss	6 sets	3.00 m	50×3.0	CL30,289*50	6pcs
		2.00 m	50×3.0	CL30,289*50	6pcs
		1.20 m	50×3.0	CL30,289*50	6pcs
Roof Components	4	roof conner 4 ways, use for roof beam truss		CS289×289	2pcs
	5	roof conner 5 ways, use for roof beam truss		CS289×289	0pcs
	1	Connect plate with clamp		CS289×289	3pcs
		Single clamp			12pcs
		Double clamp			8pcs
		roof canopy material:pvc, Blue Colour or customized.		179.36	1pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
2.00 m Wings Beam	2 sets	3.00 m	50×3.0	CS389×389	0pcs
		2.00 m	50×3.0	CS389×389	2pcs
		1.00 m	50×3.0	CS389×389	0pcs
7.00 m Wings Pillar	2 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	2pcs
Wings Tower	Spigot Sleeve Block S				2pcs
	Steel Base S				2pcs
	Top Section S				2pcs
	Manual hoist,BA05 2Tons				2pcs
	Spigot Hinge Section,Height 1m				2pcs
	Fibre sling,BA04,2 tons 3m				2pcs
	Long outrigger				8pcs
Truss Accessory		Conical coupler & Safrty clip & pin			whole set
