12x12x9m Heavy-Duty Aluminum Arched Roof Stage Truss System

5 0 Reviews

Elevate your events with our professional 12m x 12m aluminum arched roof stage truss system, featuring a 9m height and dedicated 2m wide speaker wings. This heavy-duty, TUV-certified structure is ideal for large-scale concerts, festivals, and productions, offering superior strength, weather protection, and easy assembly.

Price: ￥ 81667


Availability:



Inquire

Brand:
Dragonstage

Product Description

This professional-grade, heavy-duty aluminum stage and roof truss system is engineered for large-scale outdoor and indoor events, providing a robust and aesthetically appealing solution for your productions. The innovative curved roof design ensures efficient water drainage and adds a dynamic visual element to any venue.

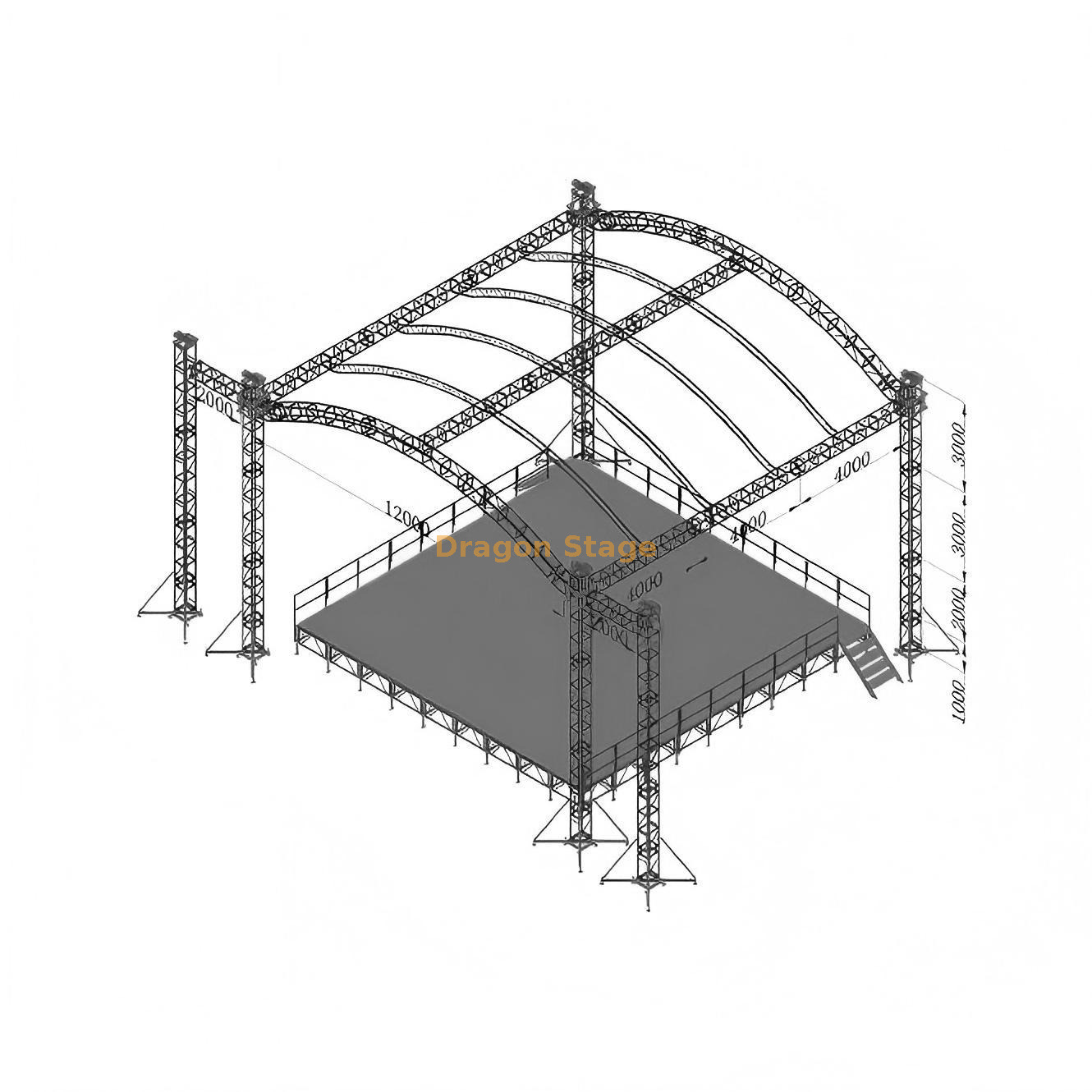

12m x 12m Heavy-Duty Aluminum Arched Roof Stage Truss System

packing weight:2000kg

packing volume:15cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
12.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS389×389	8 pcs
		2.00 m	50×3.0	CS389×389	pcs
		1.00 m	50×3.0	CS389×389	pcs
9.00 m Pillar	4 sets	3.00 m	50×3.0	CS289×289	8 pcs
		2.00 m	50×3.0	CS289×289	4 pcs
		1.00 m	50×3.0	CS289×289	pcs
Tower	Spigot Sleeve Block S				4 pcs
	Steel Base S				4 pcs
	Top Section S				4 pcs
	Manual hoist,BA05 2Tons				4 pcs
	Spigot Hinge Section,Height 1m				4 pcs
	Fibre sling,BA04,2 tons 3m				4 pcs
	Long outrigger				16 pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
12.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	4 pcs
		2.00 m	50×3.0	CS289×289	pcs
		1.00 m	50×3.0	CS289×289	pcs
14.00 m Arch Beam	2 sets	3.00 m	50×3.0	CS289×289	8 pcs
		2.00 m	50×3.0	CS289×289	pcs
		1.00 m	50×3.0	CS289×289	4 pcs
14.00 m Ladder truss	4 sets	3.00 m	50×3.0	CL40,389*50	16 pcs
		2.00 m	50×3.0	CL40,389*50	pcs
		1.00 m	50×3.0	CL40,389*50	8 pcs
Roof Components		spigot multi cube, use for roof beam truss		CS289×289	2 pcs
		Single clamp			16 pcs
		curve truss connector			4 pcs
		roof canopy material:pvc, Blue Colour or customized.		216.48	1 pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
2.00 m Wings Beam	2 sets	3.00 m	50×3.0	CS389×389	pcs
		2.00 m	50×3.0	CS389×389	2 pcs
		1.00 m	50×3.0	CS389×389	pcs
9.00 m Wings Pillar	2 sets	3.00 m	50×3.0	CS289×289	4 pcs
		2.00 m	50×3.0	CS289×289	2 pcs
		1.00 m	50×3.0	CS289×289	pcs
Wings Tower	Spigot Sleeve Block S				2 pcs
	Steel Base S				2 pcs
	Top Section S				2 pcs
	Manual hoist,BA05 2Tons				2 pcs
	Spigot Hinge Section,Height 1m				2 pcs
	Fibre sling,BA04,2 tons 3m				2 pcs
	Long outrigger				8 pcs
Truss Accessory		Conical coupler & Safrty clip & pin			whole set
