Heavy Duty Aluminum Stage Roof Truss System for Large Outdoor Concert Events 21x18x10m

5 0 Reviews

Elevate your large-scale events with our heavy-duty aluminum stage roof truss system. This 21m x 18m modular gable roof provides superior strength for concerts, festivals, and major productions. TUV certified, durable, and easy to assemble.

Price: ￥ 356560


Availability:



Inquire

Brand:
Dragonstage

Product Description

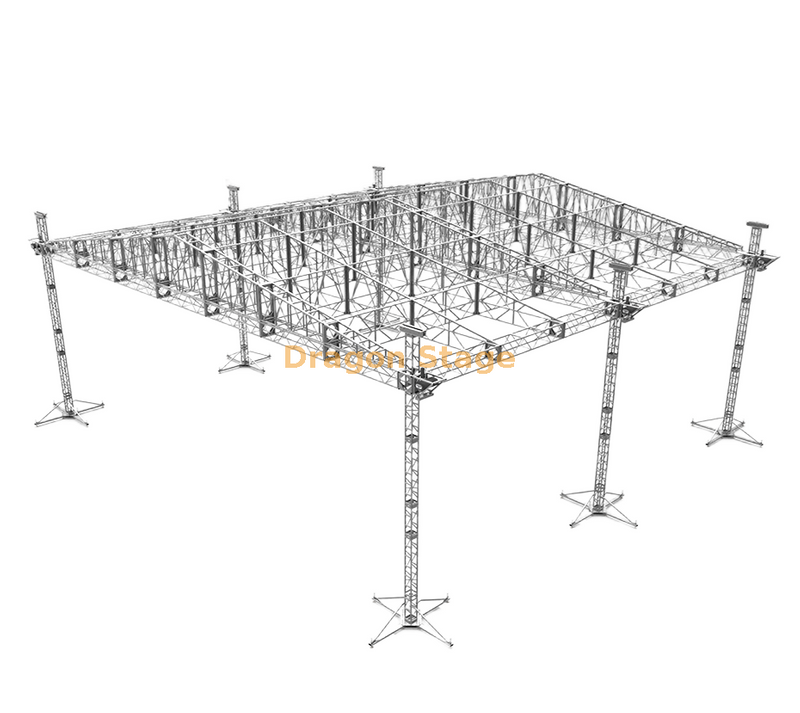

This heavy-duty aluminum stage truss system is a robust and versatile solution for large-scale events, offering reliable structural integrity for concerts, festivals, trade shows, and major productions. It features a gable roof assembly with a 6-pillar ground support structure and is constructed from high-strength, corrosion-resistant 6061-T6 Aluminum Alloy.

Key Specifications:

Total Dimensions: 21m (Length) x 18m (Depth) x 10m (Height)
Material: 6061-T6 Aluminum Alloy
Design: Gable roof, 6-pillar ground support
Certification: TUV certified

Its modular design allows for flexible configuration, and it is engineered to handle substantial static and dynamic loads for equipment and performer safety.

Heavy Duty Aluminum Stage Roof Truss System for Large Outdoor Concert Events 21x18x10m

packing weight:5270kg

packing volume:75cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
21.00 m Beam(front)	3 sets	3.00 m	50×4.0	CS520×760	21pcs
		2.00 m	50×4.0	CS520×760	0pcs
		1.00 m	50×4.0	CS520×760	0pcs
18.00 m Beam(side)	3 sets	3.00 m	50×4.0	CS520×760	18pcs
		2.00 m	50×4.0	CS520×760	0pcs
		1.00 m	50×4.0	CS520×760	0pcs
9.00 m Pillar	6 sets	3.00 m	50×3.0	CS389×389	18pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	0pcs
beam cube	Spigot cube 520x760				0pcs
Frame Tower	Spigot Sleeve Block L				6pcs
	Steel Base L				6pcs
	Top Section L				6pcs
	1. Dragon stage brand, Load:1000kg, 2. Chain length:25m, 3. lifting speed:4m/min, 4. 380V-3phrase-50HZ 5. Double brake 6. G100 load chain, meeting 8:1/10:1 safety factor. 7. With 0.5M 4Pin-16A Europe plug 8. waterproof: IP54				6pcs
	1control 8pcs, with Handle case				1pcs
	Spigot Hinge Section,Height 1m				6pcs
	Fibre sling,BA04,2 tons 3m				6pcs
	Long outrigger				24pcs
