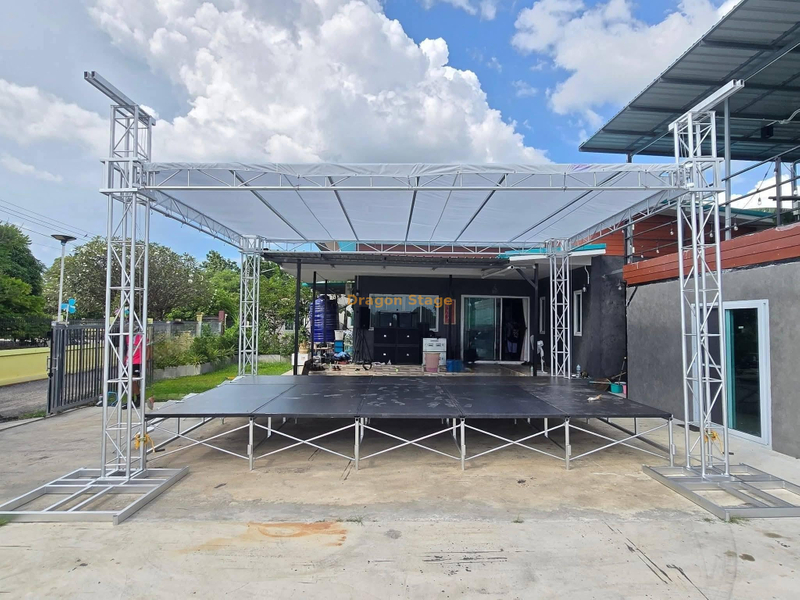

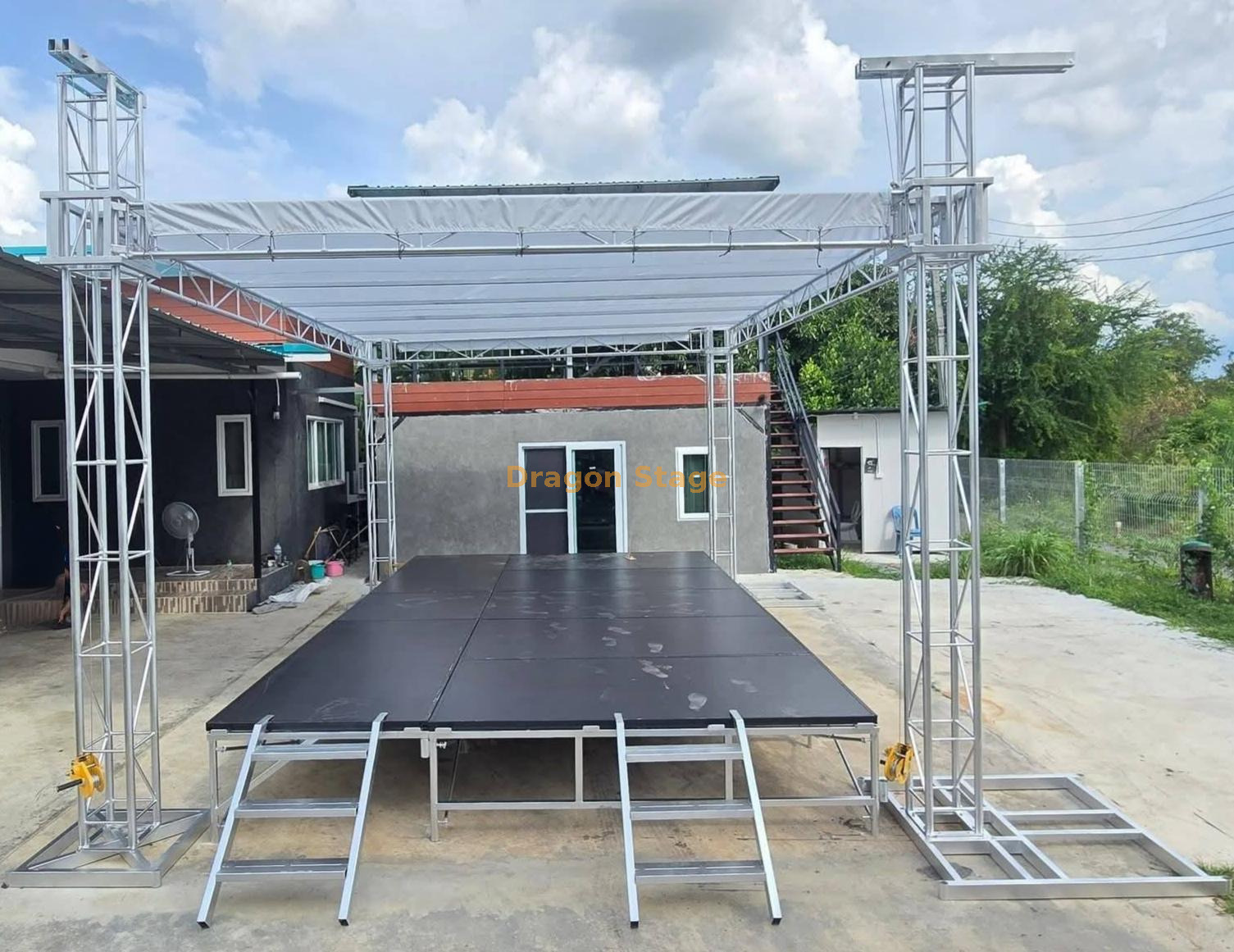

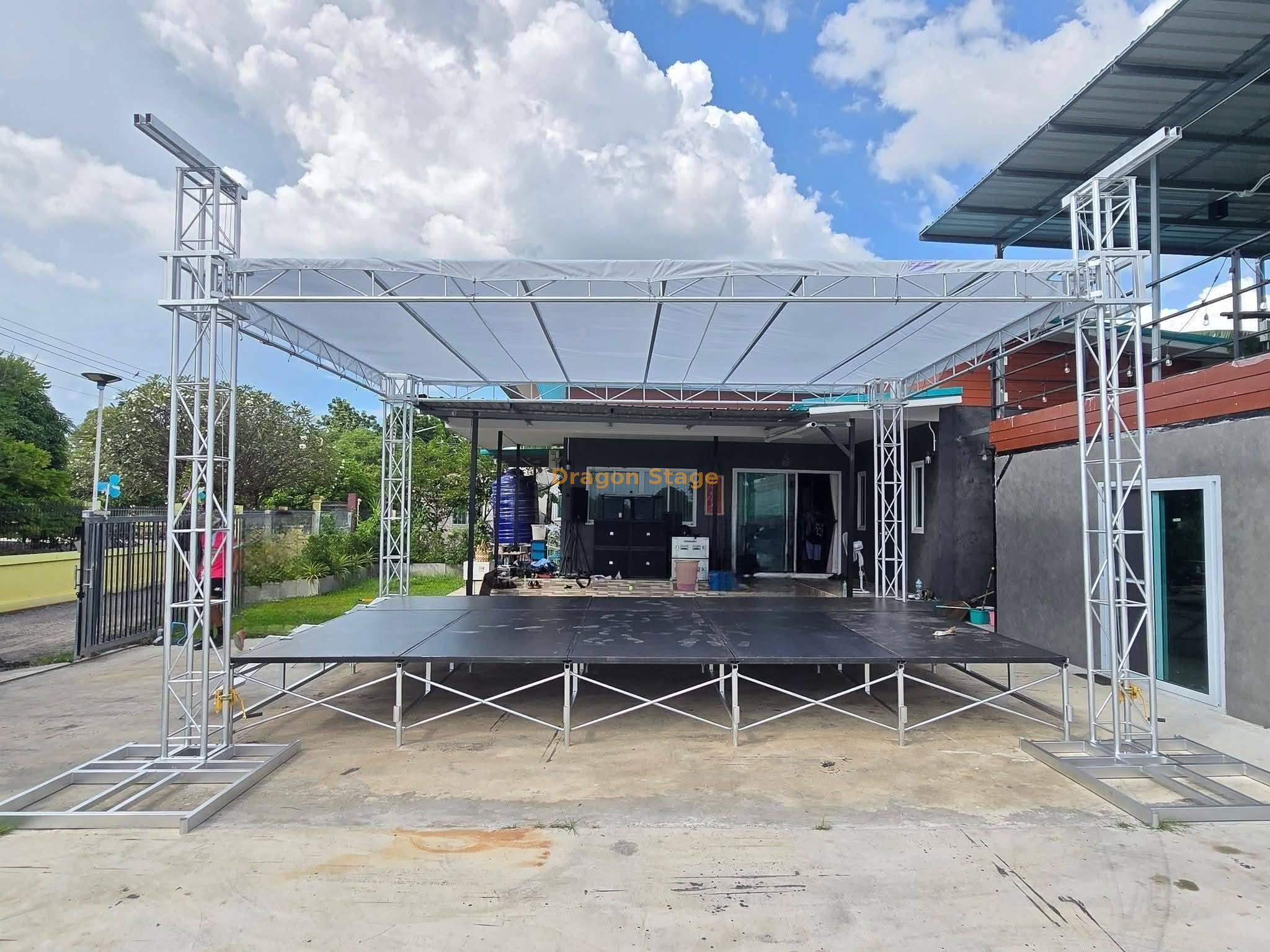

6x4x4m Outdoor Aluminum Stage Truss System with Flat Roof Canopy

Professional open-air theater stages and community festival temporary roof grids must deliver absolute structural reliability to handle sudden outdoor wind actions and suspended equipment payloads safely indynamic venue environments. By utilizing a high-performanceConnection & Material Systembased on 6061-T6 aluminum alloy, this 6x4x4m flat roof structure achieves exceptional structural equilibrium, effectively mitigating the lateral force vectors caused by crosswinds pushing against the canopy skin. The entire architecture is grounded in a sophisticatedmodular design / modular system logic, allowing the standard upright columns, heavy base steel parameters, corner junction nodes, and horizontal cross-beams to lock together flawlessly with tapered pins while strictly adhering to internationalsafety and quality standards. To guarantee total operational security during public gatherings or live band performances, every roof canopy setup is supported by a rigorousload capacity / load analysis, ensuring maximum durability forprofessional stage equipmentwhere quick field breakdown, reduced storage volumes, and verified physical overturning resistance work in absolute unison.

• This 6x4x4m outdoor aluminum stage truss system is produced by aprofessional stage & truss manufacturerusing precision-welded main chords and structural cross-webbing to guarantee clean axial alignment under load.

• As a premierconcert & event stage solution, it streamlines open-air live production setups by combining an integrated overhead lighting rig grid with a tough, protective rain shield.

• The system'smodular design / modular system logicutilizes standard truss sections that can be completely disassembled and repurposed into independent display booths, goalposts, or ground-supported banner arches.

• Every multi-way corner node, structural brace block, and conical receiver face is technically accurate and engineered to meet strict global quality benchmarks, includingTUV, SGS, and CE certifications.

• Our commitment to providing hardware that withstands rigorousload capacity / load analysisconfirms our dedication to professional safety for theglobal festival management, community promotion, and regional AV production rental sectors.




This high-quality 6m x 4m x 4m (Length x Depth x Height) aluminum stage truss system is a versatile and durable solution for professional outdoor and indoor events, including concerts, festivals, trade shows, and weddings.

• Robust Construction: Crafted from lightweight yet strong aluminum alloy (typically 6082-T6) for exceptional load-bearing capacity and corrosion resistance.

• Modular & Portable: Designed for quick, simple assembly and disassembly using a user-friendly spigot connection system, making transport efficient.

• Integrated Weather Protection: Includes a durable, silver-grey (or black) PVC top canopy that is waterproof, fireproof, and UV resistant, offering reliable shade and rain protection.

• Safety Certified: Carefully manufactured by certified welders with TUV, CE, and SGS certifications, ensuring a safe and stable structure for your production needs.

• Versatile Use: The flat roof design and square truss sections (e.g., 290mm x 290mm) provide ample hanging points for lighting fixtures, LED screens, speakers, and other rigging equipment.

• Length: 6 meters (approx. 19.7 ft)

• Depth: 4 meters (approx. 13.1 ft)

• Height: 4 meters (approx. 13.1 ft)

FAQ

1. Can this flat roof system be raised using ground-support sleeve blocks and manual hand winches?

• Yes, depending on your preferred rigging layout, this system can be supplied as a standard dead-hang fixed frame or upgraded with our standard guide towers and sleeve blocks to allowlow-altitude lighting building and safe overhead lifting.

2. How does the flat roof canopy prevent rainwater from pooling on top?

• Following ourModular System Logic, the PVC canopy features custom structural internal slope tensioners or subtle pitch offsets that guide water runoff away from the performance area, as detailed in ouroutdoor setup instructions.

3. What is the maximum uniform distributed load capacity for hanging lighting fixtures from this structure?

• The overall weight capacity is strictly regulated by the span length and profile thickness of the cross-beams; you must refer directly to our certifiedload capacity analysis documentationto calculate safe weight limits for your specific fixture layout.
