9x9x8m Aluminum Stage Roof Truss System with Speaker Wings 2m Wide

5 0 Reviews

Elevate your events with our 9m x 9m aluminum stage roof truss system, featuring 8m height clearance and integrated 2m speaker wings. This heavy-duty, TUV-certified structure provides reliable support for concert lighting, audio, and visual equipment, ensuring a professional and safe outdoor production.

Price: ￥ 70828


Availability:



Inquire

Brand:
Dragonstage

Product Description

This professional-grade, ground-supported aluminum truss structure is engineered for large outdoor events, concerts, and festivals. Designed for durability and quick assembly, it offers a robust solution for suspending significant lighting, audio, and video equipment safely above the stage area.

Key Features:

Overall Dimensions: 9m (Length) x 9m (Depth) x 8m (Height).
Integrated Speaker Wings: Includes two 2m-wide side wings, purpose-built for hanging line array speaker systems, optimizing sound distribution.
Material: Constructed from high-grade, TUV-certified aluminum alloy for an excellent strength-to-weight ratio and superior corrosion resistance.
Modular Design: The system's modular components allow for flexible configurations and easy transport, ideal for touring productions and rental companies.
Versatile Application: Perfect for professional stage performances, large-scale event production, exhibitions, and any venue requiring reliable overhead support.

This system ensures a professional appearance and the structural integrity required to meet rigorous safety standards for any event.

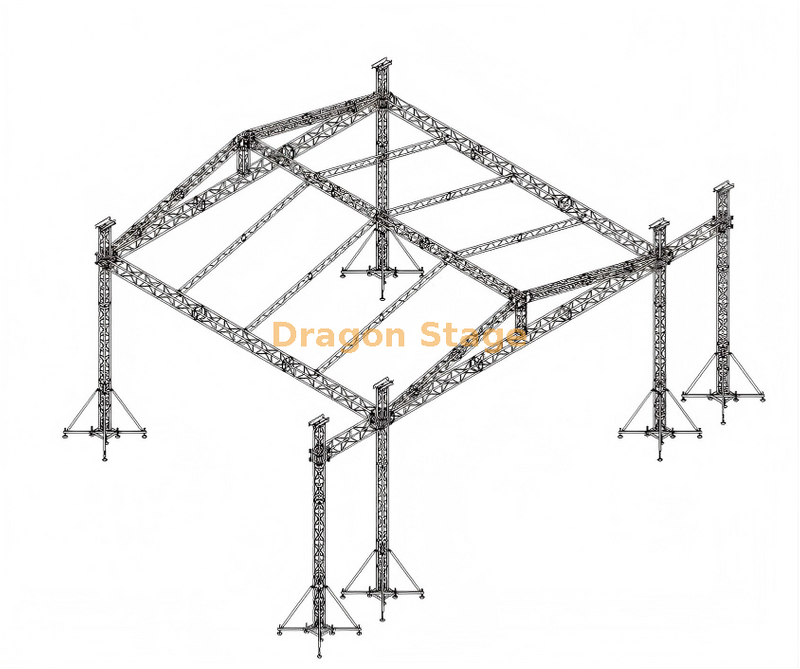

9x9x8m Aluminum Stage Roof Truss System with Speaker Wings 2m Wide

packing weight:1900kg

packing volume:14cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
9.00 m Beam(front)	2 sets	3.00 m	50×3.0	CS289×289	6pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
9.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS289×289	6pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
7.00 m Pillar	4 sets	3.00 m	50×3.0	CS289×289	8pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	4pcs
beam cube	6 faces	CS289×289			0pcs
Frame Tower	Spigot Sleeve Block S				4pcs
	Steel Base S				4pcs
	Top Section S				4pcs
	Manual hoist,BA05 2Tons				4pcs
	Spigot Hinge Section,Height 1m				4pcs
	Fibre sling,BA04,2 tons 3m				4pcs
	Long outrigger				16pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	2 sets	.90 m	50×3.0	CS289×289	2pcs
9.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	3pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
4.70 m Oblique Beam	4 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.70 m	50×3.0	CS289×289	4pcs
4.70 m Ladder truss	8 sets	3.00 m	50×3.0	CL30,289*50	8pcs
		2.00 m	50×3.0	CL30,289*50	0pcs
		1.70 m	50×3.0	CL30,289*50	8pcs
Roof Components	4	roof conner 4 ways, use for roof beam truss		CS289×289	2pcs
	5	roof conner 5 ways, use for roof beam truss		CS289×289	0pcs
	1	Connect plate with clamp		CS289×289	2pcs
		Single clamp			16pcs
		Double clamp			8pcs
		roof canopy material:pvc, Blue Colour or customized.		150.06	1pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
2.00 m Wings Beam	2 sets	3.00 m	50×3.0	CS289×289	0pcs
		2.00 m	50×3.0	CS289×289	2pcs
		1.00 m	50×3.0	CS289×289	0pcs
7.00 m Wings Pillar	2 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	2pcs
Wings Tower	Spigot Sleeve Block S				2pcs
	Steel Base S				2pcs
	Top Section S				2pcs
	Manual hoist,BA05 2Tons				2pcs
	Spigot Hinge Section,Height 1m				2pcs
	Fibre sling,BA04,2 tons 3m				2pcs
	Long outrigger				8pcs
Truss Accessory		Conical coupler & Safrty clip & pin			whole set
