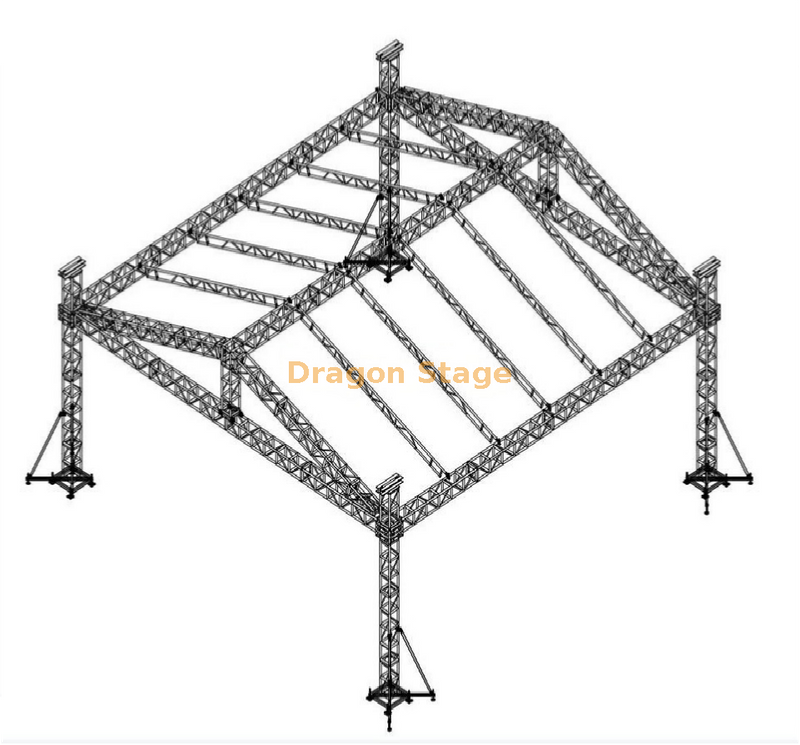

12x12x8m Heavy-Duty Aluminum Outdoor Stage Roof Truss System

5 0 Reviews

Elevate your large-scale events with a professional-grade 12m x 12m x 8m aluminum outdoor event truss system, engineered for stability and performance at major concerts and festivals.

Price: ￥ 75046


Availability:



Inquire

Brand:
Dragonstage

Product Description

This professional-grade 12m x 12m aluminum outdoor event truss system, with an 8-meter height, is designed for large-scale productions and festivals. It provides a safe structure for lighting, LED displays, and audio equipment.

Key Features:

Dimensions: 12m x 12m footprint and 8m height for ample space and clear sightlines.
Material: High-grade, non-corrosive aluminum alloy 6082-T6.
Design: Features a ground support design with central reinforcement. The modular, spigot connection design allows for quick assembly and disassembly.
Versatility: Suitable for concerts, festivals, corporate events, and trade shows.

Do you need help with generating a bill of materials or finding a suitable PVC roof canopy for this system?

12x12x8m Heavy-Duty Aluminum Outdoor Stage Roof Truss System

packing weight:1820kg

packing volume:17cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
12.00 m Beam(front)	2 sets	3.00 m	50×3.0	CS389×389	8pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	0pcs
12.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS389×389	8pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	0pcs
7.00 m Pillar	4 sets	3.00 m	50×3.0	CS289×289	8pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	4pcs
beam cube	6 faces	CS389×389			0pcs
Frame Tower	Spigot Sleeve Block S				4pcs
	Steel Base S				4pcs
	Top Section S				4pcs
	Manual hoist,BA05 2Tons				4pcs
	Spigot Hinge Section,Height 1m				4pcs
	Fibre sling,BA04,2 tons 3m				4pcs
	Long outrigger				16pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	2 sets	1.20 m	50×3.0	CS289×289	2pcs
12.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
6.20 m Oblique Beam	4 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	4pcs
		1.20 m	50×3.0	CS289×289	4pcs
6.20 m Ladder truss	10 sets	3.00 m	50×3.0	CL30,289*50	10pcs
		2.00 m	50×3.0	CL30,289*50	10pcs
		1.20 m	50×3.0	CL30,289*50	10pcs
Roof Components	4	roof conner 4 ways, use for roof beam truss		CS289×289	2pcs
	5	roof conner 5 ways, use for roof beam truss		CS289×289	0pcs
	1	Connect plate with clamp		CS289×289	2pcs
		Single clamp			20pcs
		Double clamp			8pcs
		roof canopy material:pvc, Blue Colour or customized.		238.56	1pcs
