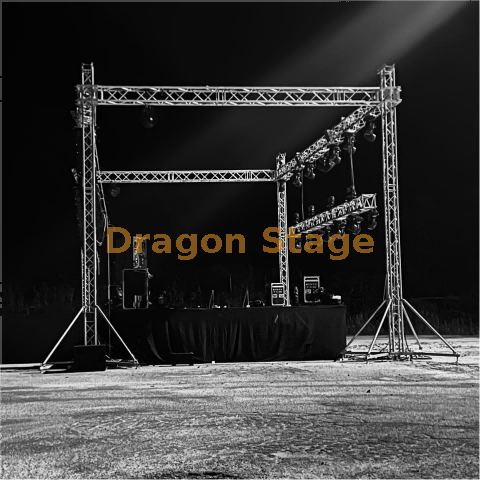

Professional 11x7x7m Aluminum Outdoor Event Stage Truss System

5 0 Reviews

Elevate large-scale events with our professional 11m x 7m aluminum outdoor stage truss system. This heavy-duty, modular solution is engineered for superior stability & quick assembly. Ideal for concerts, festivals, and major corporate events. Shop now!

The Professional 11x7x7m Aluminum Outdoor Event Stage Truss System is an industrial-grade, multi-axis concert & event stage solution engineered to provide massive overhead fixture suspension, high dead-load lifting capacities, and clear arena-scale sightlines for open-air music festivals, mid-sized stadium live tours, and high-profile public activations. Measuring exactly 11*7m in floor footprint with a structural clearance tower height of $7\text{ m}$, this technically accurate ground-support roof system is manufactured from premium structural-grade 6061-T6 aluminum and utilizes a high-performance conical Connection & Material System. Designed to be configured with a heavy-duty, weather-resistant PVC canopy top, it functions flawlessly as a fully self-supporting outdoor theater stage and an ultra-stable backbone for extensive automated moving lighting grids, heavy line-array sound reinforcement clusters, high-resolution LED multimedia video screens, and vertical weather-resistant branding banners. It establishes an exceptionally robust, professional, and stable environment for industrial-grade stage productions where intense environmental wind resistance, rapid tool-free field assembly, and absolute structural safety work in perfect harmony.


Availability:



Inquire

Brand:
Dragonstage

Product Description

Professional open-air entertainment presentations and high-capacity festival networks must deliver absolute structural reliability to handle severe environmental weather variables, heavy rigging dead-loads, and dynamic kinetic forces safely indynamic venue environments. By utilizing a high-performanceConnection & Material Systembased on a thick-wall 6061-T6 aluminum alloy formulation, this professional $11 \times 7 \times 7\text{ m}$ outdoor roof structure achieves exceptional torsional stiffness, effectively eliminating center sagging across the horizontal clear spans while easily resisting the massive uplifting aerodynamic force vectors acting upon the canopy under high wind loads. The entire architecture is grounded in a sophisticatedmodular design / modular system logic, allowing individual heavy-duty box truss segments, specialized sleeve blocks, top pulley gantry heads, and robust base steel outriggers to lock together flawlessly via precision tapered pins and locking R-clips while strictly adhering to internationalsafety and quality standards. To guarantee total operational security directly over performance artists, technical crews, and front-row audience zones, every large-scale grid configuration setup is backed by a rigorousload capacity / load analysis, ensuring maximum durability forprofessional stage equipmentwhere fast single-technician installation speeds, flat-packing transport volume efficiency, and verified physical load paths work in absolute unison.

Feature	Benefit
Material Premium	Structural 6061-T6 Aluminum with high-integrity conicalConnection System
Massive Clearance	Precision $11 \times 7 \times 7\text{ m}$ footprint engineered for optimal performance space and audio/video rigging height
Ground Support System	Utilizes mechanical towers, sleeve blocks, and top hinges for safe ground-level assembly and overhead lifting
Safety Certification	Fully certified under strictTUV, SGS, and CE safety benchmarks
Logistics Mastery	Component-based breakdown architecture designed forspace-efficient transport and fast site strikes

This professional $11\times7\times7\text{ m}$ aluminum outdoor event stage truss system is produced by aprofessional stage & truss manufacturerusing precision automated welding equipment and face-machined couplers to guarantee perfectly flat, flush seams across extended clear spans.
As a premierconcert & event stage solution, its ground-support design allows crews to safely assemble the entire horizontal lighting grid at waist height before hoisting it to its full $7\text{ m}$ peak using manual or electric chain hoists.
The system'smodular design / modular system logicensures that all linear segments are highly interchangeable, enabling sound and lighting crews to easily integrate additional lighting pipes, side wings for audio line-arrays, or background LED wall supports.
Every load-bearing vertical tower chord, diagonal structural webbing brace, and connection face coupler is technically accurate and engineered to meet strict global quality benchmarks, includingTUV, SGS, and CE certifications.
Our commitment to providing hardware that withstands rigorousload capacity / load analysisconfirms our dedication to professional safety for theglobal festival organization, heavy sound reinforcement, live stadium tour management, and event equipment rental industries.

Elevate your large-scale productions with this professional 11m (W) x 7m (D) x 7m (H) aluminum outdoor event truss system. Engineered for stability and versatility, this ground support structure is a premier solution for demanding environments such as major concerts, festivals, and corporate events.

Premium Material: Fabricated from high-strength 6082-T6 aluminum alloy for exceptional durability and corrosion resistance.
Modular Design: Features a conical connection system for quick, easy, and efficient assembly and disassembly, saving significant time and labor costs during setup.
Robust Support: Designed to support heavy loads of lighting equipment, speakers, and LED screens while ensuring maximum structural integrity and safety.
Versatile Application: Suitable for both indoor and outdoor applications, providing a reliable and visually appealing structure for a wide range of performances and displays.
Certified Quality: Our systems are manufactured to meet high safety standards and TUV specifications, ensuring reliable performance.

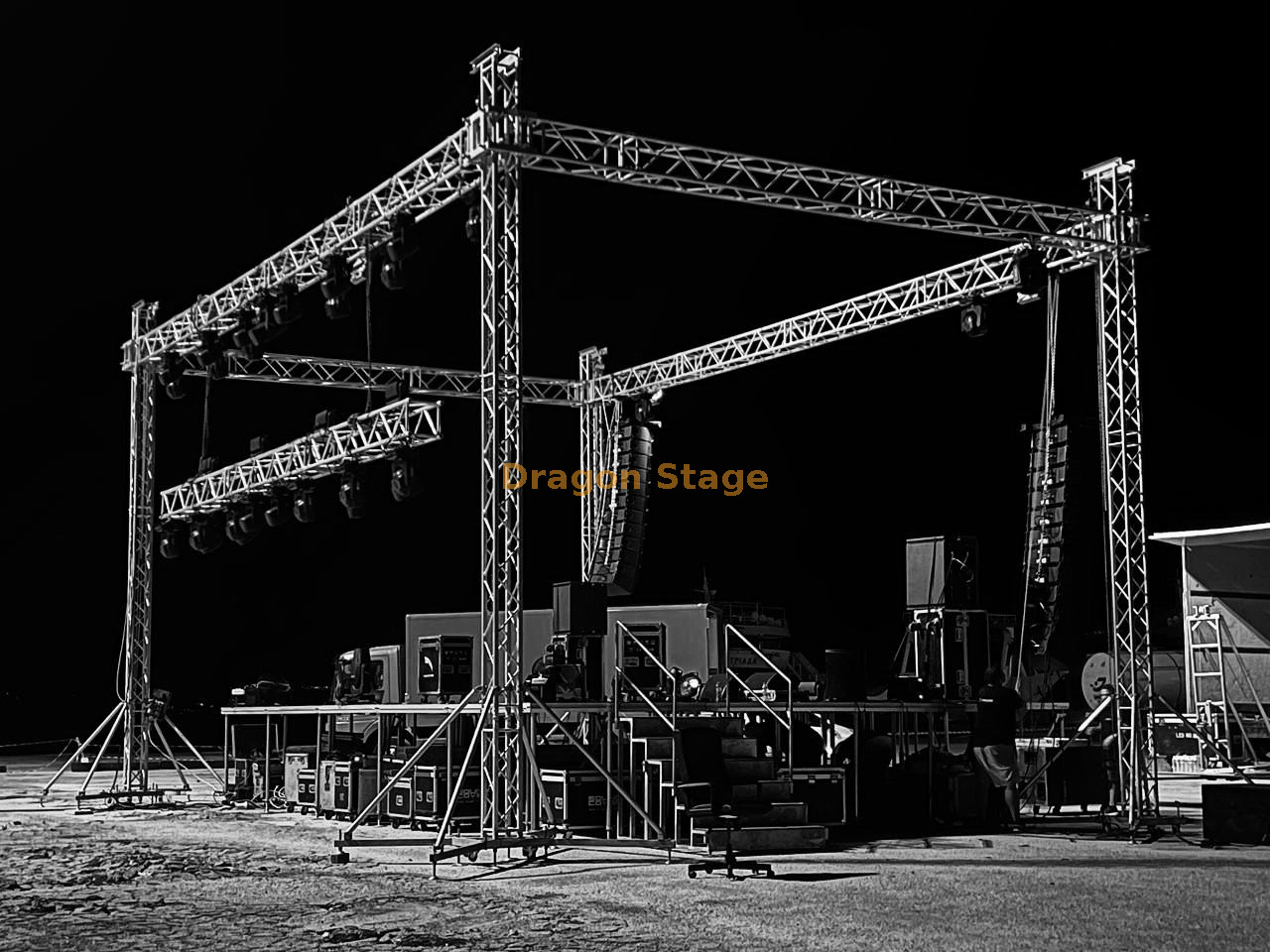

11m stage truss

FAQ

How does a ground-support tower network improve setup safety compared to standard rigging grids?

Following ourModular System Logic, the ground-support tower design utilizes hinge kits at the base of the four $7 m$ pillars, allowing them to be assembled horizontally on the ground and swiveled upright. Because the main $11 \times 7 m$ roof grid connects via sleeve blocks around these pillars, technicians can mount all heavy lighting fixtures, speakers, and cables while standing safely on the ground before lifting the entire system as detailed in oursetup options.

What kind of ballast and terrain anchoring is required to secure this $11 \times 7 \times 7 m$ structure outdoors?

Due to the large surface area of the PVC canopy roof, wind uplift forces can be substantial. The structure must be built on stable ground using heavy steel base plates equipped with long outriggers. Additionally, calculated concrete or water-tank ballast blocks must be fastened to the base plates according to the local wind velocity requirements specified in our engineering guides.

Where can I locate the exact weight loading limits and maximum deflection metrics for a specific horizontal clear span?

Safe distributed weight limits and maximum center deflection metrics change strictly based on the specific truss profile series and overall assembly configuration; please consult our official engineeringload capacity analysis documentationto calculate the precise parameters for your equipment layout.
