10x7x6m Aluminum Arched Stage Roof Truss System with Speaker Wings

5 0 Reviews

Elevate your events with our professional 10m x 7m aluminum arched stage roof truss system. This heavy-duty, modular structure features a 6m internal clearance and dual 2m wide PA speaker wings, offering an ideal, high-tech solution for concerts, festivals, and large outdoor events.

Price: ￥ 59487


Availability:



Inquire

Brand:
Dragonstage

Product Description

Our 10m long, 7m deep, and 6m high outdoor aluminum arched roof truss system (plus 2m wide speaker wings on each side) is engineered for exceptional performance, durability, and visual impact at large-scale events. This complete, tower-based structure provides a robust and aesthetically pleasing solution for professional event production.

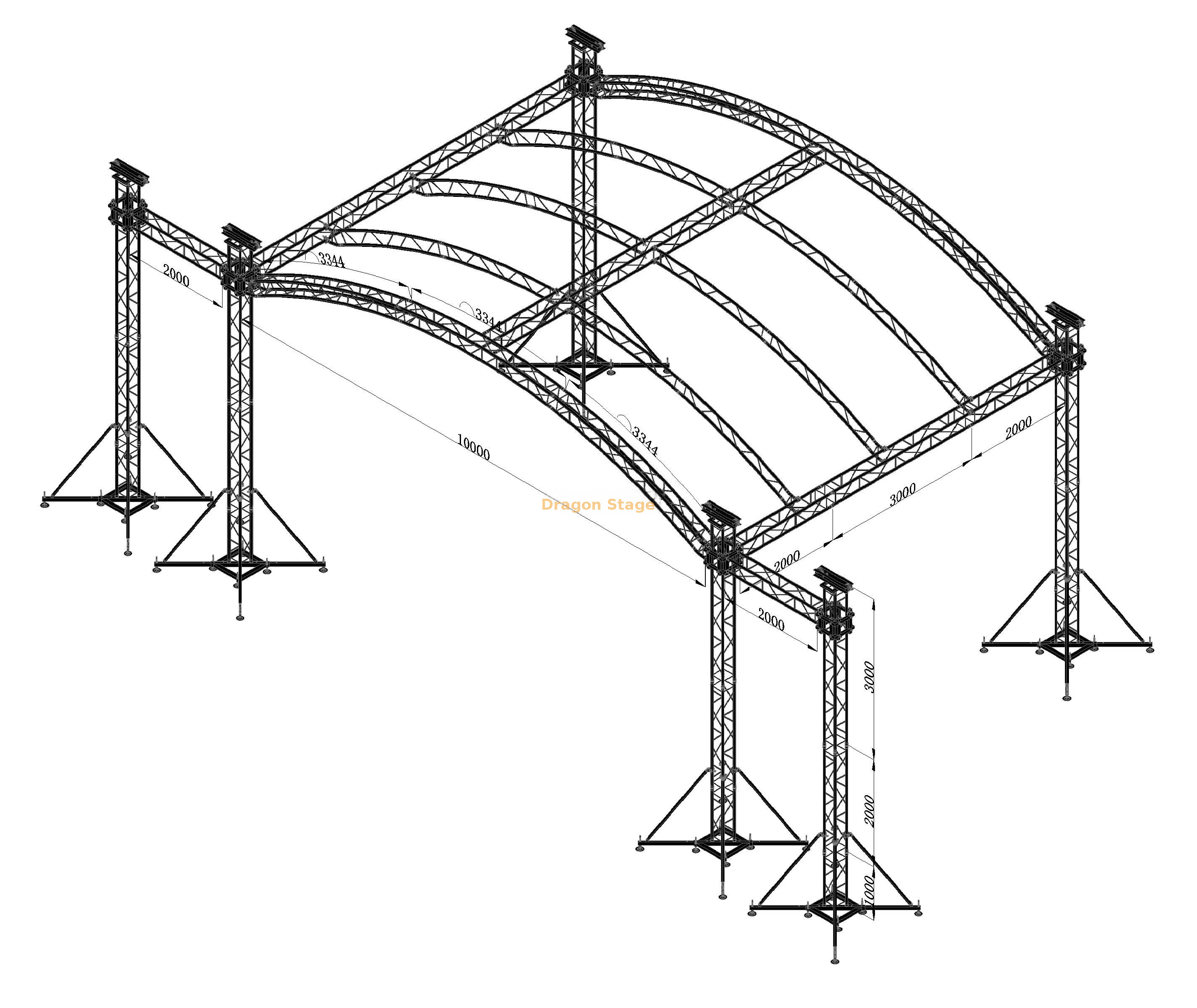

10x7x6m Aluminum Arched Stage Roof Truss System with Speaker Wings

packing weight: 1550kg

packing volume: 12cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
7.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS289×289	4 pcs
		2.00 m	50×3.0	CS289×289	pcs
		1.00 m	50×3.0	CS289×289	2 pcs
6.00 m Pillar	4 sets	3.00 m	50×3.0	CS289×289	4 pcs
		2.00 m	50×3.0	CS289×289	4 pcs
		1.00 m	50×3.0	CS289×289	pcs
Tower	Spigot Sleeve Block S				4 pcs
	Steel Base S				4 pcs
	Top Section S				4 pcs
	Manual hoist,BA05 2Tons				4 pcs
	Spigot Hinge Section,Height 1m				4 pcs
	Fibre sling,BA04,2 tons 3m				4 pcs
	Long outrigger				16 pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
7.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	2 pcs
		2.00 m	50×3.0	CS289×289	pcs
		1.00 m	50×3.0	CS289×289	1 pcs
12.00 m Arch Beam	2 sets	3.00 m	50×3.0	CS289×289	8 pcs
		2.00 m	50×3.0	CS289×289	pcs
		.00 m	50×3.0	CS289×289	pcs
12.00 m Ladder truss	3 sets	3.00 m	50×3.0	CL30,289*50	10 pcs
		2.00 m	50×3.0	CL30,289*50	pcs
		.00 m	50×3.0	CL30,289*50	pcs
Roof Components		spigot multi cube, use for roof beam truss		CS289×289	2 pcs
		Single clamp			10 pcs
		curve truss connector			4 pcs
		roof canopy material:pvc, Blue Colour or customized.		118.08	1 pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
2.00 m Wings Beam	2 sets	3.00 m	50×3.0	CS289×289	pcs
		2.00 m	50×3.0	CS289×289	2 pcs
		1.00 m	50×3.0	CS289×289	pcs
6.00 m Wings Pillar	2 sets	3.00 m	50×3.0	CS289×289	2 pcs
		2.00 m	50×3.0	CS289×289	2 pcs
		1.00 m	50×3.0	CS289×289	pcs
Wings Tower	Spigot Sleeve Block S				2 pcs
	Steel Base S				2 pcs
	Top Section S				2 pcs
	Manual hoist,BA05 2Tons				2 pcs
	Spigot Hinge Section,Height 1m				2 pcs
	Fibre sling,BA04,2 tons 3m				2 pcs
	Long outrigger				8 pcs
Truss Accessory		Conical coupler & Safrty clip & pin			whole set
