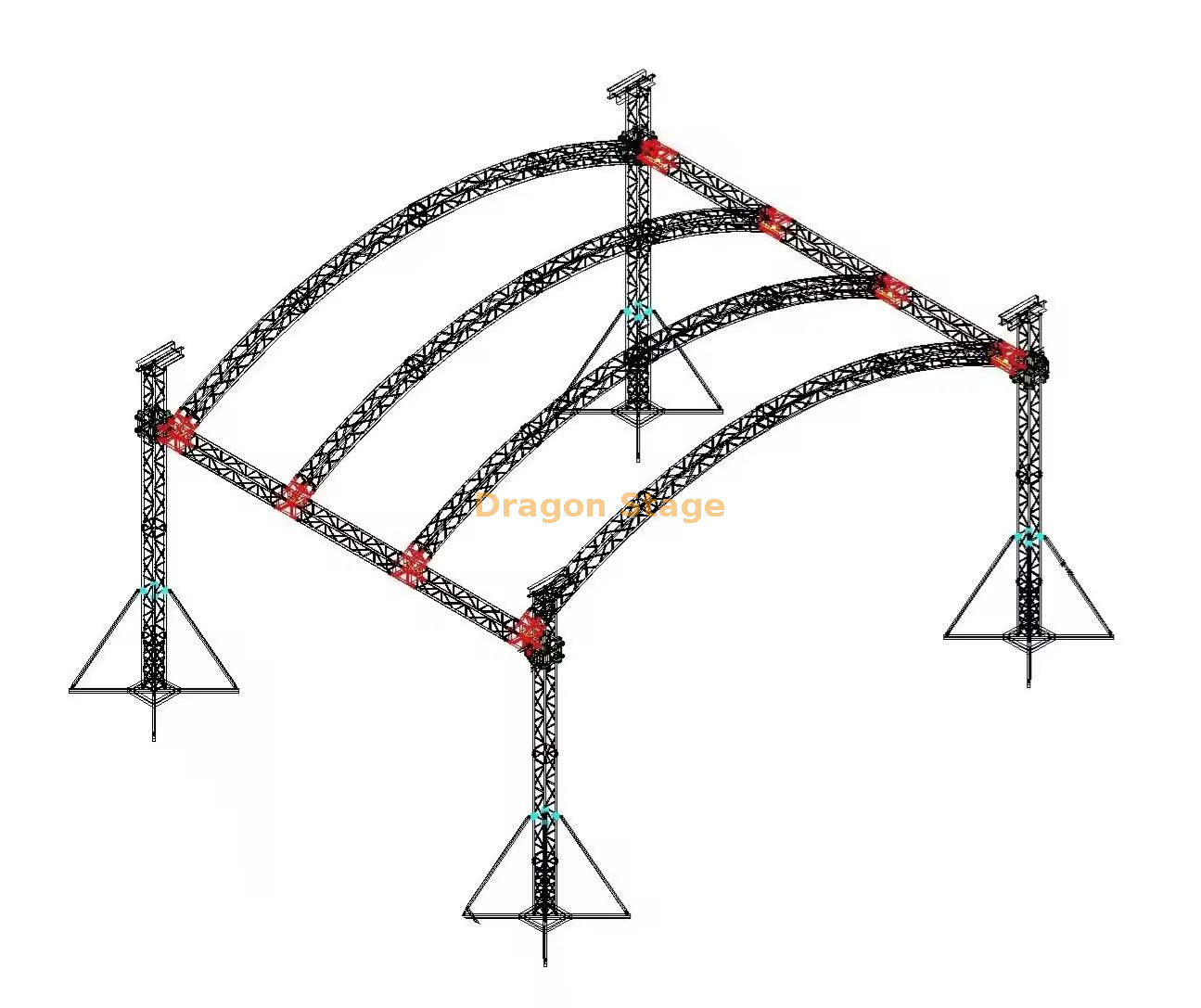

6x3x5m Aluminum Arched Roof Stage Truss System

5 0 Reviews

Elevate your events with our durable 6m x 3m aluminum arched roof stage truss system. Ideal for outdoor concerts, festivals, and mobile productions, this high-quality, 5m high structure offers superior strength and a sleek, professional look.

Price: ￥ 42029


Availability:



Inquire

Brand:
Dragonstage

Product Description

This professional-grade aluminum curved roof stage truss system is a versatile and robust solution designed for a wide range of indoor and outdoor events. Crafted from high-grade, lightweight aluminum alloy, the structure is easy to transport and assemble while ensuring exceptional structural integrity and load-bearing capacity.

The elegant arc design provides a commanding visual presence and offers enhanced aesthetic flexibility for creative lighting and production effects. The modular components allow for rapid deployment and can be customized with various accessories, such as PVC roof covers or side walls, to suit your specific event requirements.

Key Specifications:

Length: 6 meters
Depth: 3 meters
Height: 5 meters
Material: High-strength aluminum alloy
Design: Arched roof/curved canopy
Application: Concerts, festivals, exhibitions, corporate events, weddings, parties

6x3x5m Aluminum Arched Roof Stage Truss System

packing weight：1040kg

packing volume：8cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
3.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS289×289	pcs
		2.00 m	50×3.0	CS289×289	pcs
		1.00 m	50×3.0	CS289×289	6 pcs
5.00 m Pillar	4 sets	3.00 m	50×3.0	CS289×289	4 pcs
		2.00 m	50×3.0	CS289×289	pcs
		1.00 m	50×3.0	CS289×289	4 pcs
Tower	Spigot Sleeve Block S				4 pcs
	Steel Base S				4 pcs
	Top Section S				4 pcs
	Manual hoist,BA05 2Tons				4 pcs
	Spigot Hinge Section,Height 1m				4 pcs
	Fibre sling,BA04,2 tons 3m				4 pcs
	Long outrigger				16 pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
3.00 m Top Beam	sets	3.00 m	50×3.0	CS289×289	pcs
		2.00 m	50×3.0	CS289×289	pcs
		1.00 m	50×3.0	CS289×289	3 pcs
8.00 m Arch Beam	4 sets	3.00 m	50×3.0	CS289×289	pcs
		2.00 m	50×3.0	CS289×289	16 pcs
		.00 m	50×3.0	CS289×289	pcs
8.00 m Ladder truss	sets	3.00 m	50×3.0	CL30,289*50	pcs
		2.00 m	50×3.0	CL30,289*50	pcs
		.00 m	50×3.0	CL30,289*50	pcs
Roof Components		spigot multi cube, use for roof beam truss		CS289×289	4 pcs
		Single clamp			pcs
		curve truss connector			8 pcs
		roof canopy material:pvc, Blue Colour or customized.		43.68	1 pcs
