Views: 12 Author: Site Editor Publish Time: 2026-07-25 Origin: Site
Standard products are designed to follow fixed dimensions and repeated manufacturing processes.
Custom temporary structures are different.
Every customized project may involve unique:
Dimensions
Connection details
Installation environments
Load requirements
Transportation limitations
Customer expectations
For this reason, producing components according to drawings is not always enough.
A structure that looks correct on paper may still encounter unexpected problems during onsite installation:
Connection errors
Missing components
Dimension mismatch
Installation sequence issues
Adjustment difficulties
To reduce these risks, Dragon Stage applies a Factory Trial Assembly Process for customized temporary structures before shipment.
The purpose is simple:
Verify the structure before the customer verifies it onsite.
A successful temporary structure project follows a complete process:
Engineering Design
↓
CAD Drawing Verification
↓
Component Manufacturing
↓
Factory Trial Assembly
↓
Packing & Shipment
↓
Customer Installation
Each stage reduces uncertainty.
The earlier potential problems are discovered, the lower the project risk.
For customized Ringlock structures, this process is especially important because the final structure often combines multiple modular components.
Learn more about Ringlock manufacturing:
How Are Steel Ringlock Structures Manufactured for Event Applications
A CAD drawing represents the design concept.
However, real production involves:
Material thickness
Welding tolerance
Connection accuracy
Component interference
Installation sequence
Factory trial assembly allows engineers to compare:
Designed Structure
vs.
Manufactured Structure
before shipment.
This ensures:
Dimensions are correct
Connections match
Components fit together
Installation logic is practical
A customized project may contain hundreds or thousands of individual components.
For example, a Ringlock access structure may include:
Vertical standards
Horizontal ledgers
Diagonal braces
Platform supports
Deck panels
Handrails
Stair components
Connection accessories
During factory assembly, each component can be checked according to the assembly drawing.
This reduces the possibility of:
Missing parts
Incorrect components
Wrong quantities
Installation delays
Temporary structures depend heavily on connection accuracy.
A structure may have correct dimensions but still fail to assemble smoothly if connection details are not verified.
Factory trial assembly checks:
Component compatibility
Connection positions
Locking systems
Structural alignment
For modular systems such as Ringlock, connection quality directly affects installation efficiency and structural performance.
Related Ringlock knowledge:
What Is a Steel Ringlock Structure? Applications, Advantages and Event Uses
One of the biggest benefits of factory trial assembly is simulating the real installation process.
Engineers and production teams can confirm:
Assembly sequence
Required tools
Installation time
Possible difficulties
Adjustment methods
This creates a smoother installation experience for the customer.
Instead of discovering problems at the event site, problems are solved before shipment.
Before assembly begins:
CAD drawings are reviewed
Dimensions are confirmed
Component lists are checked
The team ensures that production follows the approved design.
All manufactured components are organized according to:
Assembly sequence
Component category
Installation position
This step verifies that the complete system is available.
The structure is assembled following the same procedure used onsite.
For a Ringlock structure:
Position base supports
Install vertical standards
Connect horizontal ledgers
Install diagonal braces
Add platforms and accessories
Complete safety components
After assembly, engineers verify:
Overall length
Width
Height
Connection positions
Component alignment
This ensures the final structure matches the original design.
The factory assembly process also provides valuable information for:
Installation instructions
Packing lists
Customer communication
Future maintenance

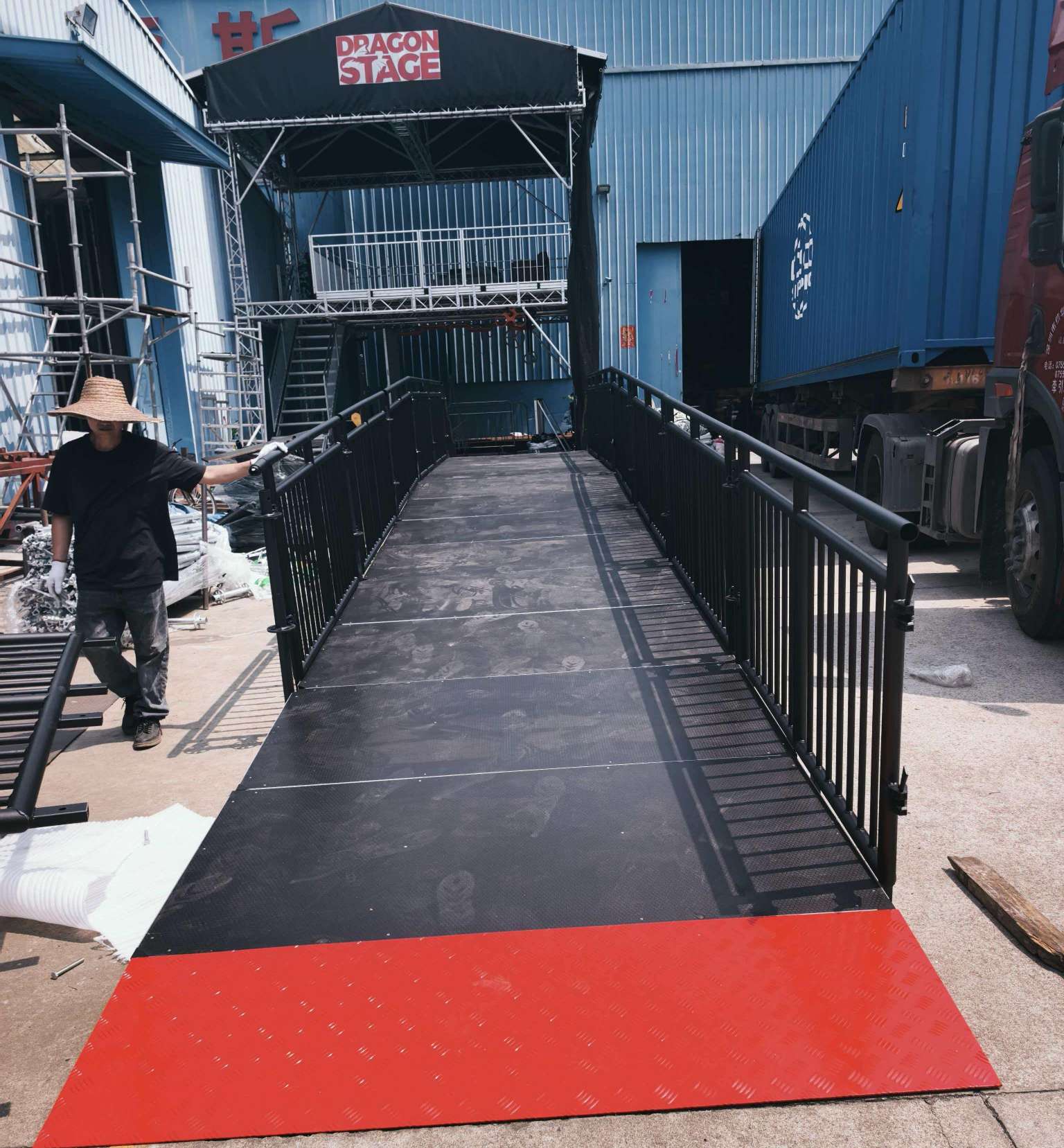

The Australian Ringlock Access Platform project is a good example of why factory trial assembly is important.
The project included:
Custom Ringlock supporting structure
Approximately 14m ramp length
Integrated platform section
Stair connection
Safety handrails
Black finish
The project process followed:
The engineering team developed the customized layout according to customer requirements.
↓
The complete structure was assembled before shipment.
↓
The customer received a verified system that could be installed according to the approved design.
Project details:
Custom Ringlock Access Platform with Ramp and Stair System Temporary Event Access Solution
For customized temporary structures, the lowest purchase price is not always the lowest project cost.
A cheaper structure may create additional costs through:
Installation delays
Site modification
Missing components
Engineering corrections
Event schedule risks
Factory trial assembly helps customers reduce these hidden risks.
The value is not only the physical structure.
The value is:
Confidence that the structure will work before it arrives onsite.
At Dragon Stage, customized temporary structures are treated as engineering projects rather than simple products.
Our process focuses on:
Ensuring the structure matches customer requirements.
Ensuring every component is produced correctly.
Ensuring the system works before shipment.
Helping customers complete projects efficiently.
This approach is especially important for international projects where onsite corrections are expensive and time-consuming.
Although the Australian project uses Ringlock technology, factory trial assembly is valuable for many customized temporary structures, including:
Concert stage systems
Roof truss structures
Hospitality platforms
Exhibition structures
Special event structures
Custom aluminum truss systems
Any project involving complex customization benefits from pre-shipment verification.
Usually not. Standard products follow established manufacturing processes.
However, customized structures benefit greatly from trial assembly because every project has unique requirements.
Yes, slightly.
However, it significantly reduces installation risks and potential delays onsite.
Yes. For customized projects, Dragon Stage can provide assembly photos and technical information before shipment.
No.
It verifies the design and assembly process before shipment, while final installation still depends on the customer's site conditions.
Custom temporary structures require more than accurate drawings and quality materials.
They require verification.
Factory trial assembly transforms a design concept into a proven physical structure before it reaches the customer.
Through:
Drawing verification
Component checking
Connection testing
Installation simulation
Dragon Stage reduces uncertainty and improves project reliability.
For customized Ringlock structures, event platforms, and temporary architectural solutions, factory trial assembly is not an additional step.
It is an essential part of professional engineering practice.
