packing weight: 1500kg

packing volume: 14cbm

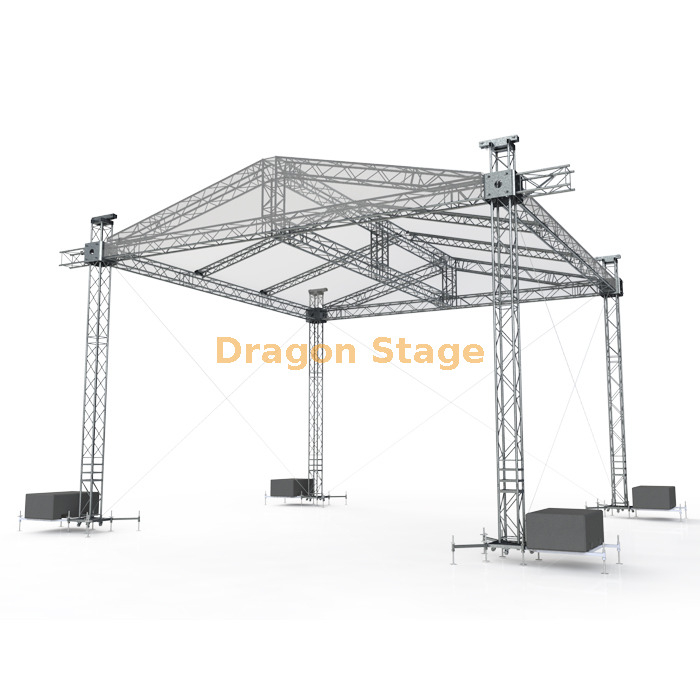

Professional 12x5x7m Aluminum Outdoor Concert Roof Stage Truss

1. Introduction

Modern outdoor event production requires a delicate balance between expansive stage coverage and structural portability. The DragonStage 12x5x7m Aluminum Outdoor Concert Roof Truss is the ideal mid-to-large scale solution for festivals, corporate events, and live performances. With a 12-meter clear span and a 7-meter height, this system provides the "trim height" necessary for professional lighting designs and high-fidelity sound projection. Engineered for reliability, this concert speaker roof truss serves as a robust overhead foundation that ensures performer safety while delivering high visual impact.

2. Industry Challenges & Professional Solutions

Event contractors often face the challenge of providing massive structural support without the logistical burden of heavy steel. Managing wind loads on a 7-meter structure while maintaining a fast setup time is a primary concern for touring crews.

DragonStage solves these issues by utilizing high-grade aluminum bolt trussing (BS400 for beams and BS300 for pillars). Our design incorporates 50x3.0mm main tubes, providing superior rigidity-to-weight ratios compared to standard consumer-grade trussing. To address stability, the system includes sixteen long outriggers and heavy-duty steel bases that create a wide, secure footprint. For rapid deployment, the inclusion of manual 2-ton hoists and hinge sections allows the roof to be assembled at ground level and safely elevated, significantly reducing the risks associated with working at height (Source:https://www.dragontruss.com/Stage-Truss-pl3452133.html).

3. Key Features & Operational Benefits

The 12x5m outdoor stage truss is more than just a frame; it is a fully integrated production environment.

Optimized Load Distribution and Sound Projection

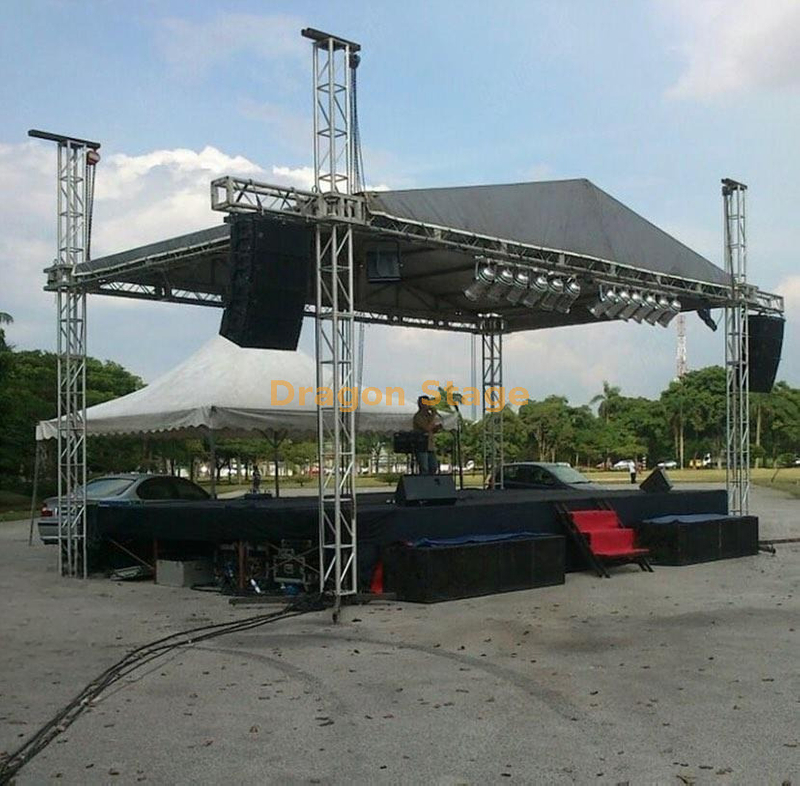

The BS400 main beams are specifically designed to handle the dynamic loads of professional audio-visual equipment. The system’s 12m width is perfect for hanging integrated line array speaker wings, allowing sound engineers to achieve optimal acoustic coverage without obstructing the audience's view. This modular concert truss architecture allows for the secure attachment of LED screens and complex lighting rigs, all while maintaining the structural integrity verified by our TUV-certified engineering standards (Source:https://www.dragontruss.com/TUV-Report-dc249965.html).

All-Weather PVC Protection

To protect high-value electronic equipment, each system comes with a custom-fitted PVC roof canopy. Available in blue or customized colors, the canopy is designed for maximum tension to prevent water pooling during heavy rainfall—a common point of failure in inferior designs. This weatherproof stage roof ensures that your event continues regardless of the elements, providing a dry workspace for performers and technical staff. Furthermore, our trussing adheres to international rigging standards, ensuring that every connection point meets the safety requirements demanded by the world’s leading event venues (Source:https://www.plasa.org).

4. Practical FAQ for Stage Professionals

5. Strong Call to Action (CTA)

Don't compromise on the safety and scale of your next outdoor production. Choose the industry-standard for reliability and engineering excellence.

Contact DragonStage’s engineering department today to receive a custom quote or download the full technical rigging schematics for your 12x5x7m roof truss system.
