packing weight: 1500kg
packing volume: 11cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 8.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 2pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 4.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 2pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 2pcs |
| 4.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 4pcs |
| beam cube | 6 faces | CS289×289 | 0pcs |
| Frame Tower | Spigot Sleeve Block S | 4pcs |
| Steel Base S | 4pcs |
| Top Section S | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 2 sets | .80 m | 50×3.0 | CS289×289 | 2pcs |
| 4.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 1pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 1pcs |
| 4.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.20 m | 50×3.0 | CS289×289 | 4pcs |
| 4.20 m Ladder truss | 2 sets | 3.00 m | 50×3.0 | CL30,289*50 | 2pcs |
| 2.00 m | 50×3.0 | CL30,289*50 | 0pcs |
| 1.20 m | 50×3.0 | CL30,289*50 | 2pcs |
| Roof Components | 4 | roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs |
| 5 | roof conner 5 ways, use for roof beam truss | CS289×289 | 0pcs |
| 1 | Connect plate with clamp | CS289×289 | 2pcs |
| Single clamp | 4pcs |
| Double clamp | 8pcs |
| roof canopy material:pvc, Blue Colour or customized. | 81.76 | 1pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 2.00 m Wings Beam | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 0pcs |
| 2.00 m | 50×3.0 | CS289×289 | 2pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 4.00 m Wings Pillar | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 2pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 2pcs |
| Wings Tower | Spigot Sleeve Block S | 2pcs |
| Steel Base S | 2pcs |
| Top Section S | 2pcs |
| Manual hoist,BA05 2Tons | 2pcs |
| Spigot Hinge Section,Height 1m | 2pcs |
| Fibre sling,BA04,2 tons 3m | 2pcs |
| Long outrigger | 8pcs |
| Truss Accessory |
| Conical coupler & Safrty clip & pin | whole
set |
Elevate Your Event with Professional-Grade Trussing

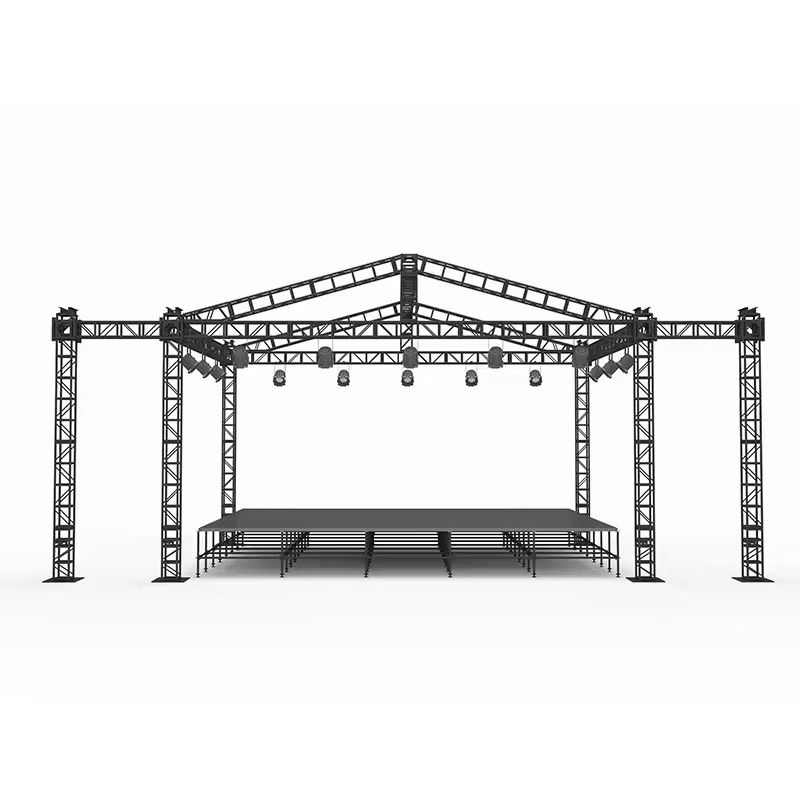

For event organizers and concert stage setup companies, the foundation of any memorable performance is a reliable, safe, and versatile stage structure. The Lightweight Concert Stage Truss 8x4x5m from DRAGON STAGE is engineered to meet these exact demands. This Aluminum Roof Truss System is the perfect solution for creating a stunning and secure framework for your next outdoor concert.
But what makes this truss system the right choice for your large-scale event? Let's address the key questions professionals like you are asking.
1. What Are the Exact Specifications and Can I Customize It?
This isn't a one-size-fits-all product; it's a comprehensive system. The main structure measures 8m (width) x 4m (depth) x 5m (height), providing a substantial footprint for performers and equipment. It includes 2m wide sound truss wings for optimal speaker placement.
Key Components Included:
Main Beams & Pillars: Constructed from high-grade 50x3.0mm aluminum for the main tubes (CS289x289).
Roof System: Features a 4m top beam and 4.20m oblique beams for a stable A-frame roof design.
Support Towers: Includes four main frame towers and two wing towers with manual hoists (2T capacity), steel bases, and long outriggers for maximum stability.
Full Roof Canopy: A durable PVC canopy (81.76 sqm, blue or customizable) is included for weather protection.
Yes, it's customizable. We understand that every event is unique. We offer custom engineering for different sizes, shapes, and load requirements.
2. Is This Aluminum Truss Strong and Safe for Outdoor Events?
Absolutely. The use of Aluminum Concert Stage Truss material offers the ideal balance of strength and lightweight properties. It's resistant to corrosion, making it perfect for outdoor concert stage truss applications.
Safety is our top priority:
Robust Construction: The 50x3.0mm aluminum tubes and CS289x289 truss profile provide exceptional load-bearing capacity.

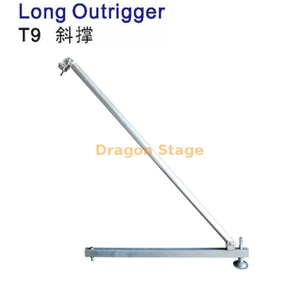

Stable Base: Each tower is equipped with long outriggers to prevent tipping, even in challenging conditions.
Certified Components: The system includes 2-ton manual hoists and fiber slings, ensuring safe lifting and rigging of your lighting and sound equipment.
3. How Easy and Quick is the Assembly Process?
We designed this Large Concert Stage Truss with efficiency in mind. The modular components use a spigot and conical coupler system, allowing for a tool-free and intuitive assembly. Our clear, step-by-step documentation and online video support ensure your team can set up and dismantle the structure quickly, saving you valuable time and labor costs.
4. What About Logistics, Packaging, and Overall Value?
We streamline the process from our factory to your venue.
Consolidated Packaging: The entire system is packed efficiently into a volume of 11 CBM with a total weight of 1500kg.
Direct Manufacturer Pricing: As a leading concert stage truss factory in China, we offer competitive ex-works prices, providing you with exceptional value without compromising on quality.
Global Shipping: We have extensive experience in shipping complete truss systems worldwide, ensuring they arrive safely and on time.
Conclusion: Partner with a Trusted Manufacturer
The Lightweight Concert Stage Truss 8x4x5m is more than just a product; it's a reliable partner for your event production business. It answers the critical needs for strength, safety, ease of use, and overall value.
As a professional concert stage setup company, you need equipment you can trust. DRAGON STAGE delivers exactly that.
