packing weight: 7400kg
packing volume: 70cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 24.00 m Beam(front) | 3 sets | 3.00 m | 50×4.0 | CS520×760 | 24pcs |
| 2.00 m | 50×4.0 | CS520×760 | 0pcs |
| 1.00 m | 50×4.0 | CS520×760 | 0pcs |
| 10.00 m Beam(side) | 2 sets | 3.00 m | 50×4.0 | CS520×760 | 4pcs |
| 2.00 m | 50×4.0 | CS520×760 | 4pcs |
| 1.00 m | 50×4.0 | CS520×760 | 0pcs |
| 7.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS389×389 | 8pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 4pcs |
| beam cube | 6 faces | CS520×760 | 2pcs |
| Frame Tower | Spigot Sleeve Block L | 4pcs |
| Steel Base L | 4pcs |
| Top Section L | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 3 sets | 2.40 m | 50×3.0 | CS389×389 | 3pcs |
| 10.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS389×389 | 2pcs |
| 2.00 m | 50×3.0 | CS389×389 | 2pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 12.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS389×389 | 8pcs |
| 2.00 m | 50×3.0 | CS389×389 | 4pcs |
| 4.20 m | 50×3.0 | CS389×389 | 4pcs |
| 12.20 m Ladder truss | 8 sets | 3.00 m | 50×3.0 | CL40,389*50 | 16pcs |
| 2.00 m | 50×3.0 | CL40,389*50 | 8pcs |
| 4.20 m | 50×3.0 | CL40,389*50 | 8pcs |
| Roof Components | 4 | roof conner 4 ways, use for roof beam truss | CS389×389 | 2pcs |
| 5 | roof conner 5 ways, use for roof beam truss | CS389×389 | 1pcs |
| 1 | Connect plate with clamp | CS389×389 | 3pcs |
| Single clamp | 16pcs |
| Double clamp | 8pcs |
| roof canopy material:pvc, Blue Colour or customized. | 415.36 | 1pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 4.00 m Wings Beam | 12 sets | 3.00 m | 50×4.0 | CS520×760 | 0pcs |
| 2.00 m | 50×4.0 | CS520×760 | 24pcs |
| 1.00 m | 50×4.0 | CS520×760 | 0pcs |
| 7.00 m Wings Pillar | 12 sets | 3.00 m | 50×3.0 | CS389×389 | 24pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 12pcs |
| Wings Tower | Spigot Sleeve Block L | 12pcs |
| Steel Base L | 12pcs |
| Top Section L | 12pcs |
| Manual hoist,BA05 2Tons | 12pcs |
| Spigot Hinge Section,Height 1m | 12pcs |
| Fibre sling,BA04,2 tons 3m | 12pcs |
| Long outrigger | 48pcs |
| Truss Accessory |
| Conical coupler & Safrty clip & pin | whole
set |
Of course! Here is a product introduction for your webpage, written in English and structured around the questions your potential customers are asking. It's designed to be engaging, easy to read, and effective for SEO.

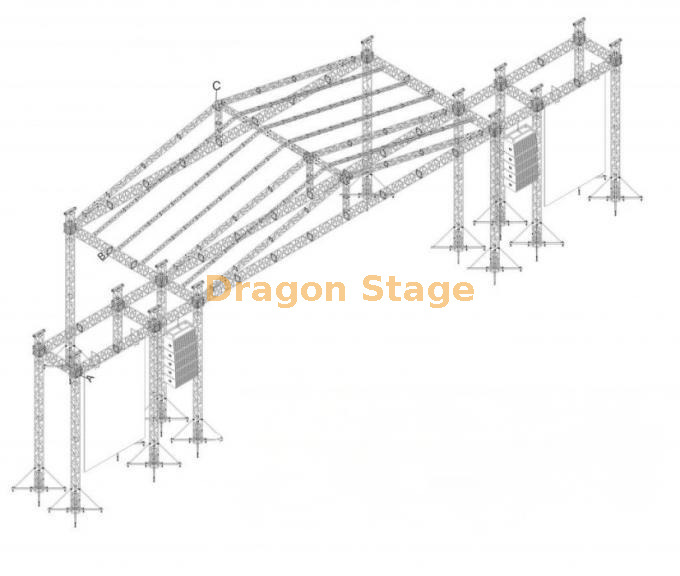

The 24x10x8m Concert Stage Truss: Your Solution for Large-Scale Event Production
Planning a major concert or festival? Building a stage that is both impressive and safe for a large audience involves complex challenges. We've answered your biggest questions below to show you why our Large Concert Stage Truss System is the reliable solution you need.
1. "Is it large and sturdy enough for a full professional setup?"
Absolutely. This system is engineered for scale and performance.
Our 24m (long) x 10m (deep) x 8m (high) aluminum truss framework provides a massive, professional-grade platform. It's specifically designed to hold everything you need:
Main Stage:A 24-meter wide front beam creates a commanding performance area.
Dedicated Speaker Wings: Two 3-meter wide wings are perfectly configured for heavy line array speakers.
Video Screen Wings: Two 6-meter wide wings provide solid support for large LED walls.
Heavy-Duty Capacity: With a total system weight of 7400kg, it's built to safely hold top-tier audio, lighting, and video equipment.
2. "We produce outdoor events. How does it handle tough weather?"
Built for the elements, so you can focus on the show.
Outdoor events demand reliability. Our truss system delivers:
Robust Aluminum Construction: Features 50x4.0mm main tubes that resist corrosion and provide exceptional strength.
Integrated Roof Canopy: A 415.36 sqm PVC roof (available in blue or custom colors) protects your gear and performers from sun and rain.
Engineered Stability: The system includes long outriggers, fiber slings, and 2-ton manual hoists to create a rock-solid structure that stands up to wind and weather.
3. "Our setup time is always tight. How quickly can it be assembled?"
Its modular design is made for fast and efficient installation.
We understand that time is money on show day. This system saves you both:
Pre-Engineered Modules: Composed of standard 3-meter sections that connect quickly and logically.
Clear Component Labeling: All parts are clearly identified, minimizing errors and speeding up the process.
Complete Kit: Comes with all necessary couplers, safety clips, and pins—no last-minute missing parts.
4. "Is it versatile enough for my different types of events?"
A flexible framework for any large-scale production.
This isn't a one-size-fits-all solution; it's a versatile system that adapts to your needs.
Perfect for:
Major Music Festivals & Outdoor Concerts
Arena Tours and Stadium Shows
Large Corporate Events and Brand Launches
Television Broadcasts and Live Streams
Scalable by Design: It seamlessly integrates with other trussing and staging components from the Dragon Stage range.
5. "As a production manager, I need to justify the investment. What's the long-term value?"
A durable asset that pays for itself over time.
This is more than a purchase; it's an investment in your production company's future.
Long-Lasting Durability: Made from high-grade aluminum for a service life that can exceed a decade.
Low Maintenance: Standardized parts make repairs and replacements straightforward.
Strong Rental Value: Professional trussing is always in demand, providing an excellent return through rental income.
Manufacturer Direct Support: You get the quality assurance and technical backing of Dragon Stage, a trusted name in event infrastructure.
Technical Specifications at a Glance:
Overall Dimensions: 24m (L) x 10m (D) x 8m (H)
Packing:7400 kg weight | 70 CBM volume
Main Material: Aluminum Alloy (50x4.0mm main tubes)
Included: Frame towers, hoists, roof components, and a full set of safety accessories.
Ready to Build a Stage That Impresses?
Stop worrying about your stage structure and start focusing on creating an unforgettable audience experience. The 24x10x8m Concert Stage Truss is the proven foundation for countless successful events.
Contact us today to:
Get a detailed quote tailored to your needs.
Discuss custom configuration options.
See technical drawings and user case studies.
Let's build something amazing together.
