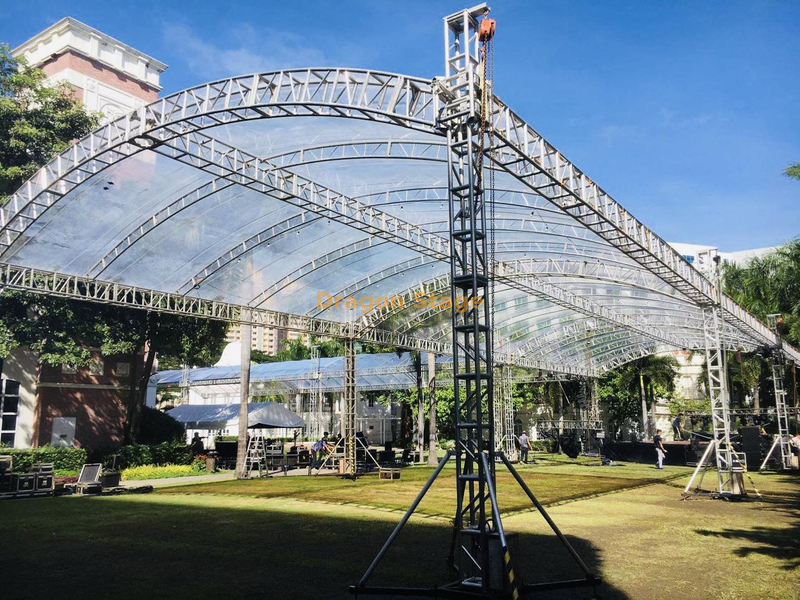

100x40x20ft Dome Truss Roofing System for Event

5 0 Reviews

Dome Truss Roofing System for Event 30x12x6m

it means 12m wide, 30m deep and 6m high.

Price: ￥ 139323

packing weight: 3400kg

packing volume: 25cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
30.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS389×389	18 pcs
		2.00 m	50×3.0	CS389×389	pcs
		1.00 m	50×3.0	CS389×389	6 pcs
6.00 m Pillar	8 sets	3.00 m	50×3.0	CS289×289	8 pcs
		2.00 m	50×3.0	CS289×289	8 pcs
		1.00 m	50×3.0	CS289×289	pcs
Tower	Spigot Sleeve Block S				8 pcs
	Steel Base S				8 pcs
	Top Section S				8 pcs
	Manual hoist,BA05 2Tons				8 pcs
	Spigot Hinge Section,Height 1m				8 pcs
	Fibre sling,BA04,2 tons 3m				8 pcs
	Long outrigger				32 pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
30.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	9 pcs
		2.00 m	50×3.0	CS289×289	pcs
		1.00 m	50×3.0	CS289×289	3 pcs
14.00 m Arch Beam	4 sets	3.00 m	50×3.0	CS289×289	16 pcs
		2.00 m	50×3.0	CS289×289	pcs
		1.00 m	50×3.0	CS289×289	8 pcs
14.00 m Ladder truss	12 sets	3.00 m	50×3.0	CL40,389*50	48 pcs
		2.00 m	50×3.0	CL40,389*50	pcs
		1.00 m	50×3.0	CL40,389*50	24 pcs
Roof Components		spigot multi cube, use for roof beam truss		CS289×289	4 pcs
		Single clamp			48 pcs
		curve truss connector			8 pcs
		roof canopy material:pvc, Blue Colour or customized.		511.68	1 pcs
Truss Accessory		Conical coupler & Safrty clip & pin			whole set
