packing weight: 5150kg
packing volume: 59cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 20.00 m Beam(front) | 3 sets | 3.00 m | 50×4.0 | CS520×760 | 18pcs |
| 2.00 m | 50×4.0 | CS520×760 | 0pcs |
| 1.00 m | 50×4.0 | CS520×760 | 6pcs |
| 12.00 m Beam(side) | 2 sets | 3.00 m | 50×4.0 | CS520×760 | 8pcs |
| 2.00 m | 50×4.0 | CS520×760 | 0pcs |
| 1.00 m | 50×4.0 | CS520×760 | 0pcs |
| 7.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS389×389 | 8pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 4pcs |
| beam cube | 6 faces | CS520×760 | 2pcs |
| Frame Tower | Spigot Sleeve Block L | 4pcs |
| Steel Base L | 4pcs |
| Top Section L | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 3 sets | 2.00 m | 50×3.0 | CS389×389 | 3pcs |
| 12.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS389×389 | 4pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 10.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS389×389 | 8pcs |
| 2.00 m | 50×3.0 | CS389×389 | 4pcs |
| 2.20 m | 50×3.0 | CS389×389 | 4pcs |
| 10.20 m Ladder truss | 10 sets | 3.00 m | 50×3.0 | CL40,389*50 | 20pcs |
| 2.00 m | 50×3.0 | CL40,389*50 | 10pcs |
| 2.20 m | 50×3.0 | CL40,389*50 | 10pcs |
| Roof Components | 4 | roof conner 4 ways, use for roof beam truss | CS389×389 | 2pcs |
| 5 | roof conner 5 ways, use for roof beam truss | CS389×389 | 1pcs |
| 1 | Connect plate with clamp | CS389×389 | 3pcs |
| Single clamp | 20pcs |
| Double clamp | 8pcs |
| roof canopy material:pvc, Blue Colour or customized. | 388.96 | 1pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 2.00 m Wings Beam | 6 sets | 3.00 m | 50×4.0 | CS520×760 | 0pcs |
| 2.00 m | 50×4.0 | CS520×760 | 6pcs |
| 1.00 m | 50×4.0 | CS520×760 | 0pcs |
| 7.00 m Wings Pillar | 6 sets | 3.00 m | 50×3.0 | CS389×389 | 12pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 6pcs |
| Wings Tower | Spigot Sleeve Block L | 6pcs |
| Steel Base L | 6pcs |
| Top Section L | 6pcs |
| Manual hoist,BA05 2Tons | 6pcs |
| Spigot Hinge Section,Height 1m | 6pcs |
| Fibre sling,BA04,2 tons 3m | 6pcs |
| Long outrigger | 24pcs |
| Truss Accessory |
| Conical coupler & Safrty clip & pin | whole
set |
20x12x8 Large Concert Stage Truss: Your Premier Solution for Rock-Solid Event Production
When planning a major concert or outdoor festival, the foundation of your success lies in a reliable, professional-grade stage setup. DRAGON STAGE's 20x12x8 Large Concert Stage Truss with PA Truss Tower is engineered to meet the highest demands of the event industry. This comprehensive system provides a robust and adaptable framework for everything from a high-energy rock concert stage setup to a large-scale outdoor event.
We understand that event planners and production managers often have specific concerns. Here’s how our product provides the answers:
1. "What does a complete large concert stage truss system include?"

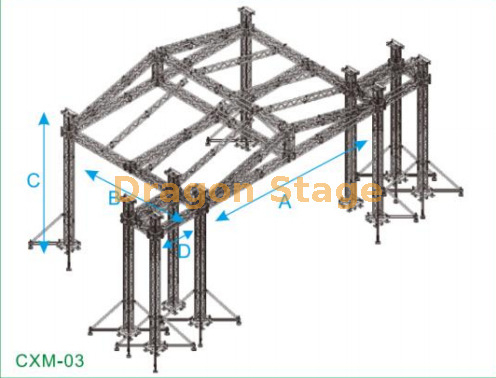

Our package is a complete, ready-to-deploy solution. It features a massive 20m (front) x 12m (side) x 8m (height) main stage structure, complemented by 2m PA Truss Towers for optimal speaker placement. The system includes all necessary components: square trusses (520x760mm & 389x389mm), roof pillars, oblique beams, ladder trusses, manual hoists, steel bases, long outriggers for stability, and all essential connectors and safety clips.
2. "How do I achieve a professional outdoor concert stage setup that can withstand the elements?"
Designed for durability, our aluminum concert stage truss is both strong and lightweight, making it ideal for outdoor concert stage rental and setup. The system's structural integrity, supported by towers and outriggers, ensures stability. We also offer a customizable PVC roof canopy to protect your equipment and performers from the weather, making it a perfect nice concert stage for any environment.
3. "We need a custom stage design. Is that possible?"
Absolutely. While this is a standard large-scale model, the core of our service is flexibility. We specialize in creating custom concert stage truss systems. Whether you need to adjust dimensions or integrate specific features for a unique rock concert stage design, our team can tailor the solution to your exact event layout and technical requirements.
4. "Is the truss lightweight and easy to assemble for a touring crew?"
Yes. Constructed from high-grade aluminum, this is a lightweight concert stage truss system. Its modular design allows for quick assembly and disassembly, significantly reducing labor time and costs. This makes it an excellent choice for touring bands and event companies that frequently manage outdoor concert stage rental operations.
5. "Why should I source from a manufacturer in China?"
Sourcing this outdoor concert stage truss made in china directly from DRAGON STAGE, the manufacturer, offers unparalleled advantages. You benefit from low factory prices without compromising on quality, ensuring you get a high-value, cost-effective solution. Our direct relationship guarantees quality control and access to expert support.
Key Product Specifications:
Overall Packing Weight: 5150 kg
Overall Packing Volume: 59 m³
Main Truss Tube: 50x3.0mm & 50x4.0mm Aluminum
Key Components: Roof systems, wing beams, PA towers, manual hoists, and all necessary hardware.
Conclusion:
The 20x12x8 Large Concert Stage Truss System is more than just a structure; it's the backbone of your event. It answers the critical needs for durability, customization, and ease of use, making it the ideal choice for anyone involved in professional event production. From its initial rock concert stage design to the final outdoor concert stage setup, this system ensures your event is built on a foundation of quality and reliability.
Contact DRAGON STAGE today to discuss your project needs and get a direct manufacturer quote.
