What is a Heavy Loading LED Screen Goal Truss?
A heavy loading LED screen goal truss is a freestanding aluminum structure designed to support LED screens, banners, and stage visual systems. The 4x4m goal truss uses 290mm spigot truss and reinforced base support to ensure stability, making it ideal for exhibitions, outdoor events, and stage backdrops.
To understand how this structure works in real applications, see What is event truss? and What is truss display?.
Product Type: LED Screen Goal Post Truss
Size: 4m (W) × 4m (H)
Material: Aluminum Alloy (Structural Grade)
Main Components:
Packing Weight: 120kg
Packing Volume: 1.5 CBM
Application: LED screen support, exhibition display, event branding
Load Capacity: Depends on configuration → see load capacity / load analysis
Installation: Modular assembly → see assembly / installation methodology
packing weight: 120kg
packing volume: 1.5cbm

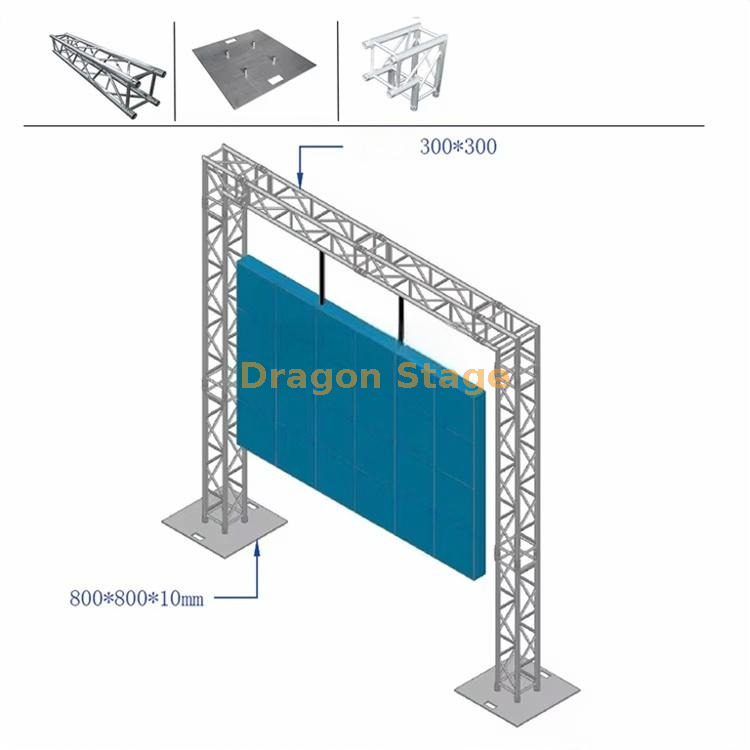

290mm spigot truss 2m 6pieces
2way 290mm corner truss
800x800mm base 2pieces
Why This 4x4m LED Screen Goal Truss Is Recommended
This system is specifically engineered for LED screen support and display structures, combining strength, modularity, and transport efficiency.
Heavy load capability for LED screens
Designed to support LED panels and display equipment safely. Learn more about LED Ground Support vs Hanging System.
Stable base support system
Equipped with 800×800mm base plates for improved ground stability and load distribution.
Standard 290mm spigot truss system
Industry-standard size ensures compatibility and structural reliability. See 290x290mm spigot truss system.
Flexible modular configuration
Easy to assemble, disassemble, and transport. Related system logic: modular system logic.
Why Goal Truss Structure Is Ideal for LED Screens
The goal post truss design provides a clear span opening, making it perfect for LED screen installation without obstructing the visual area.
Key engineering advantages:
Efficient load transfer from top beam to vertical columns
Stable ground support using base plates
Reduced material usage compared to full truss structures
For deeper understanding of structural performance, see:
Where This Goal Truss Is Used
This 4x4m LED goal truss is widely applied in:
Explore more at application scenarios
How much weight can this goal truss support?
The load depends on span and setup method. See What is the maximum load capacity of a event aluminum truss system?.
Is this suitable for outdoor use?
Yes, but proper anchoring and wind considerations are required. See Outdoor Lighting Truss Guide.
How is the truss assembled?
It uses modular spigot connections for fast assembly. See How to assemble event truss.
Can I customize the size or structure?
Yes, customization is available. See Custom Truss.
