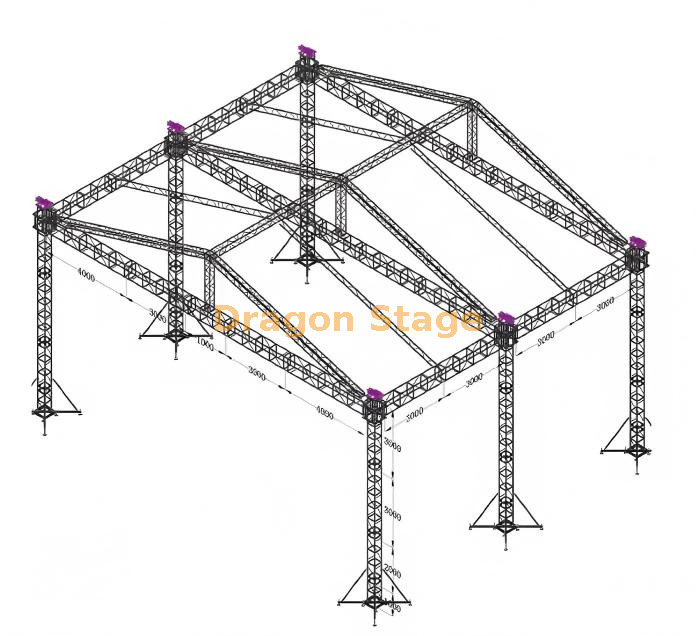

15x12x9m Heavy-Duty Aluminum Stage Roof Truss System (9m Height) Outdoor Event Canopy Structure

5 0 Reviews

Elevate your large-scale outdoor events with our robust 15m L x 12m D x 8m H aluminum stage roof truss system. This heavy-duty, TUV-certified structure offers maximum stability and a high load capacity for professional lighting and sound rigging. Engineered for quick, modular assembly and superior performance. Shop now for reliable event solutions!

Price: ￥ 124516


Availability:



Inquire

Brand:
Dragonstage

Product Description

Our professional-grade, large-span Aluminum Stage Roof Truss System is the ideal structural solution for major outdoor concerts, festivals, trade shows, and touring productions. This ground support system provides an expansive, structurally secure environment (15 meters wide x 12 meters deep) with an imposing 8-meter vertical clearance, ensuring maximum visibility and ample rigging height for complex production designs.

Key Features & Benefits:

Robust Construction: The entire framework is built from high-grade, lightweight aluminum alloy (e.g., 6061-T6 or 6082-T6), ensuring exceptional strength and a superior strength-to-weight ratio.
Optimal Dimensions: Generous dimensions of 15m (Length) x 12m (Depth) x 8m (Height) provide a massive covered area capable of supporting vast amounts of lighting, audio, and video equipment.
Modular Design: This system features a fully modular square box truss design with a bolt connection type for enhanced shear strength and rigid coupling. The components are designed for swift and efficient assembly and disassembly, simplifying logistics and setup time.
Safety & Certification: Crafted by certified welders, the system is TUV certified, meeting rigorous global safety standards for peace of mind in high-stakes event environments.
Weather Resistance: Designed to withstand unpredictable outdoor conditions, the aluminum structure is resistant to rust and corrosion, and the roof design facilitates proper water drainage (canopy sold separately).

15x12x9m Heavy-Duty Aluminum Stage Roof Truss System (9m Height) Outdoor Event Canopy Structure

packing weight:3100kg

packing volume: 35cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
15.00 m Beam(front)	3 sets	3.00 m	50×3.0	CS500×600	15pcs
		2.00 m	50×3.0	CS500×600	0pcs
		1.00 m	50×3.0	CS500×600	0pcs
12.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS500×600	8pcs
		2.00 m	50×3.0	CS500×600	0pcs
		1.00 m	50×3.0	CS500×600	0pcs
8.00 m Pillar	6 sets	3.00 m	50×3.0	CS389×389	12pcs
		2.00 m	50×3.0	CS389×389	6pcs
		1.00 m	50×3.0	CS389×389	0pcs
beam cube	6 faces	CS500×600			0pcs
Frame Tower	Spigot Sleeve Block M				6pcs
	Steel Base M				6pcs
	Top Section M				6pcs
	Manual hoist,BA05 2Tons				6pcs
	Spigot Hinge Section,Height 1m				6pcs
	Fibre sling,BA04,2 tons 3m				6pcs
	Long outrigger				24pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	3 sets	1.50 m	50×3.0	CS289×289	3pcs
12.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
7.70 m Oblique Beam	6 sets	3.00 m	50×3.0	CS289×289	6pcs
		2.00 m	50×3.0	CS289×289	6pcs
		2.70 m	50×3.0	CS289×289	6pcs
7.70 m Ladder truss	8 sets	3.00 m	50×3.0	CL30,289*50	8pcs
		2.00 m	50×3.0	CL30,289*50	8pcs
		2.70 m	50×3.0	CL30,289*50	8pcs
Roof Components	4	roof conner 4 ways, use for roof beam truss		CS289×289	2pcs
	5	roof conner 5 ways, use for roof beam truss		CS289×289	1pcs
	1	Connect plate with clamp		CS289×289	3pcs
		Single clamp			16pcs
		Double clamp			12pcs
		roof canopy material:pvc, Blue Colour or customized.		293.46	1pcs
