Aluminum Roof Stage Lighting Truss System 30x15x10m

5 0 Reviews

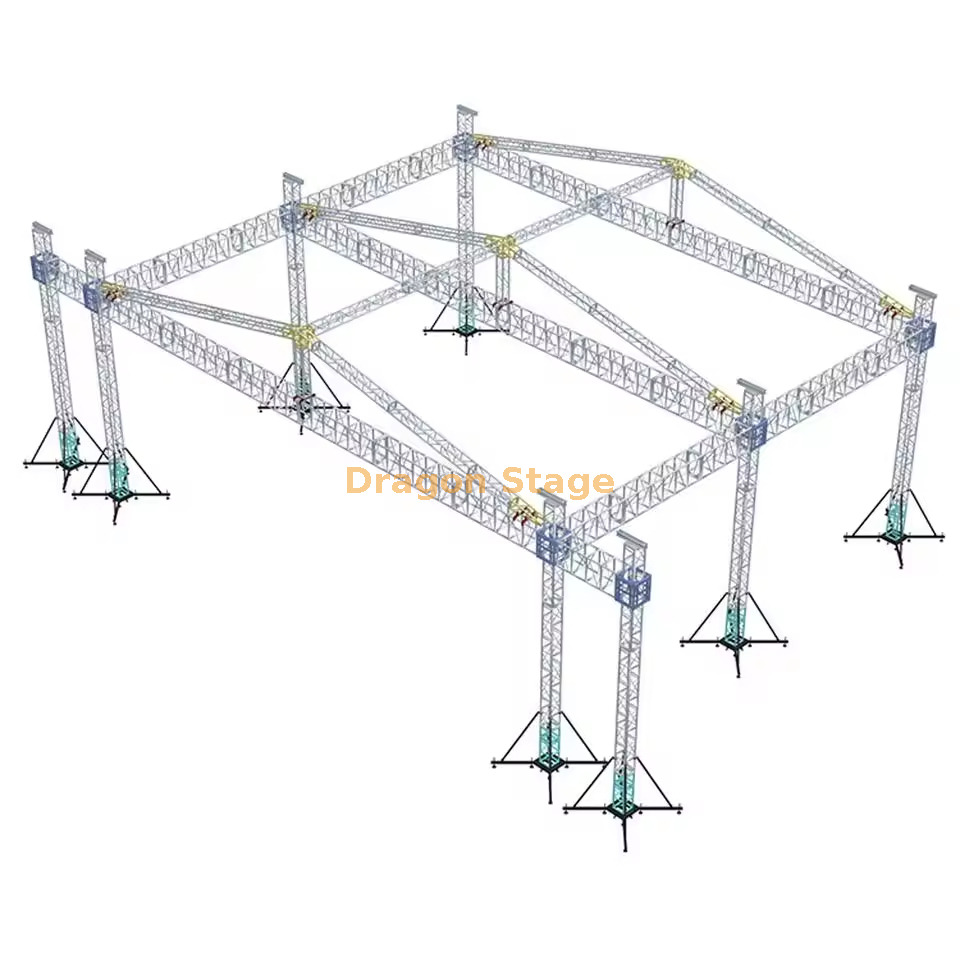

This is a large Aluminum Roof Stage Lighting Truss System

Main body sizes are 30m wide, 15m deep, and 10m high, with a 2-speaker truss 2m wide.

Price: ￥ 295934


Availability:



Inquire

Brand:
Dragonstage

Product Description

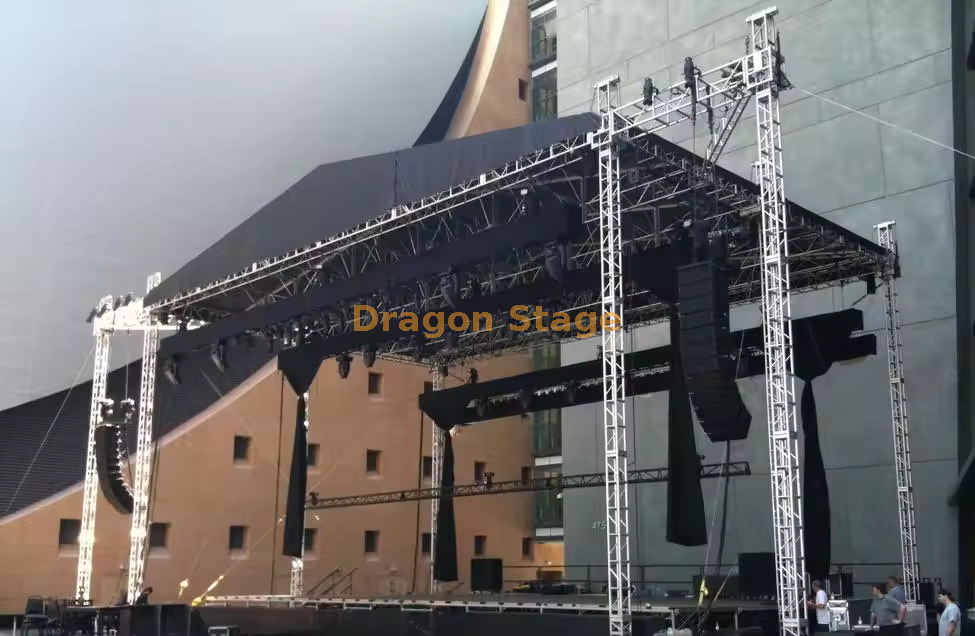

Aluminum Roof Stage Lighting Truss System

packing weight: 6800kg

packing volume: 90cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
30.00 m Beam(front)	3 sets	3.00 m	50×5.0	CS680×1010	30pcs
		2.00 m	50×5.0	CS680×1010	0pcs
		1.00 m	50×5.0	CS680×1010	0pcs
15.00 m Beam(side)	2 sets	3.00 m	50×5.0	CS680×1010	10pcs
		2.00 m	50×5.0	CS680×1010	0pcs
		1.00 m	50×5.0	CS680×1010	0pcs
9.00 m Pillar	6 sets	3.00 m	FALSE	CS520×520	18pcs
		2.00 m	FALSE	CS520×520	0pcs
		1.00 m	FALSE	CS520×520	0pcs
beam cube	6 faces	CS680×1010			0pcs
Frame Tower	Spigot Sleeve Block L				6pcs
	Steel Base L				6pcs
	Top Section L				6pcs
	Manual hoist,BA05 2Tons				6pcs
	Spigot Hinge Section,Height 1m				6pcs
	Fibre sling,BA04,2 tons 3m				6pcs
	Long outrigger				24pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	3 sets	3.00 m	50×3.0	CS389×389	3pcs
15.00 m Top Beam	1 sets	3.00 m	50×3.0	CS389×389	5pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	0pcs
15.20 m Oblique Beam	6 sets	3.00 m	50×3.0	CS389×389	24pcs
		2.00 m	50×3.0	CS389×389	6pcs
		1.20 m	50×3.0	CS389×389	6pcs
15.20 m Ladder truss	12 sets	3.00 m	50×3.0	CL40,389*50	48pcs
		2.00 m	50×3.0	CL40,389*50	12pcs
		1.20 m	50×3.0	CL40,389*50	12pcs
Roof Components	4	roof conner 4 ways, use for roof beam truss		CS389×389	2pcs
	5	roof conner 5 ways, use for roof beam truss		CS389×389	1pcs
	1	Connect plate with clamp		CS389×389	3pcs
		Single clamp			24pcs
		Double clamp			12pcs
		roof canopy material:pvc, Blue Colour or customized.		693.36	1pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
2.00 m Wings Beam	2 sets	3.00 m	50×5.0	CS680×1010	0pcs
		2.00 m	50×5.0	CS680×1010	2pcs
		1.00 m	50×5.0	CS680×1010	0pcs
9.00 m Wings Pillar	2 sets	3.00 m	FALSE	CS520×520	6pcs
		2.00 m	FALSE	CS520×520	0pcs
		1.00 m	FALSE	CS520×520	0pcs
Wings Tower	Spigot Sleeve Block L				2pcs
	Steel Base L				2pcs
	Top Section L				2pcs
	Manual hoist,BA05 2Tons				2pcs
	Spigot Hinge Section,Height 1m				2pcs
	Fibre sling,BA04,2 tons 3m				2pcs
	Long outrigger				8pcs
Truss Accessory		Conical coupler & Safrty clip & pin			whole set
