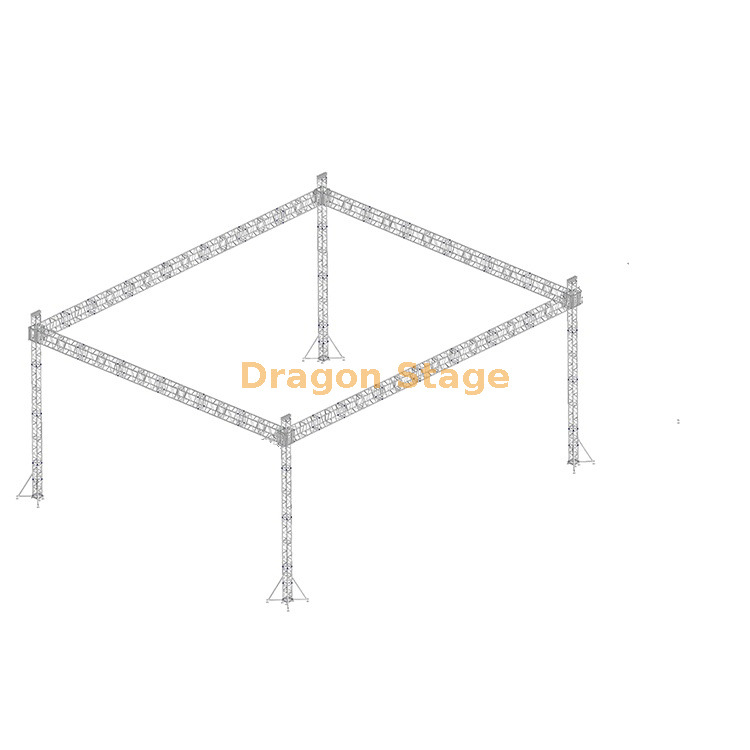

The Aluminum Box Truss Structure Design is a massive, professional-grade solution built for major events and exhibitions. This 4-pillar ground support system offers a monumental footprint of 120ft x 120ft (equivalent to 36m x 36m) and a commanding vertical clearance of 45ft (equivalent to 14m), making it an industry-leading choice for main stages at festivals, large trade show pavilions, and spectacular event architecture.
Aluminum box truss structures are commonly used in the event industry for building stages, lighting rigs, and other temporary structures. They are known for their strength, versatility, and ease of assembly. When considering a truss structure of this size, professional engineering and installation are essential to ensure safety and stability. The design and load-bearing capacity of such a large structure must comply with relevant safety standards and regulations. Companies specializing in event production and truss systems can provide detailed specifications, engineering reports, and professional services for the safe implementation of these structures.
packing weight: 3750kg
packing volume: 99cbm
| Item | Specification(squre truss) | Qty |
| length(M) | main tube(MM) | size(MM) |
| Beam | 3 | 50×5.0 | CS680×1010 | 48 pcs |
| 2 | 50×5.0 | CS680×1010 | 0pcs |
| 1 | 50×5.0 | CS680×1010 | 0pcs |
| Pillar | 3 | 50×3.0 | CS520×520 | 16 pcs |
| 2 | 50×3.0 | CS520×520 | 0pcs |
| 1 | 50×3.0 | CS520×520 | 4 pcs |
| Tower | Spigot Sleeve Block L | 4 pcs |
| Steel Base L | 4 pcs |
| Top Section L | 4 pcs |
| Manual hoist,BA05 2Tons | 4 pcs |
| Spigot Hinge Section,Height 1m | 4 pcs |
| Fibre sling,BA04,2 tons 3m | 4 pcs |
| Long outrigger | 16 pcs |
| Truss Accessory | Conical coupler & Safrty clip & pin | whole
set |
