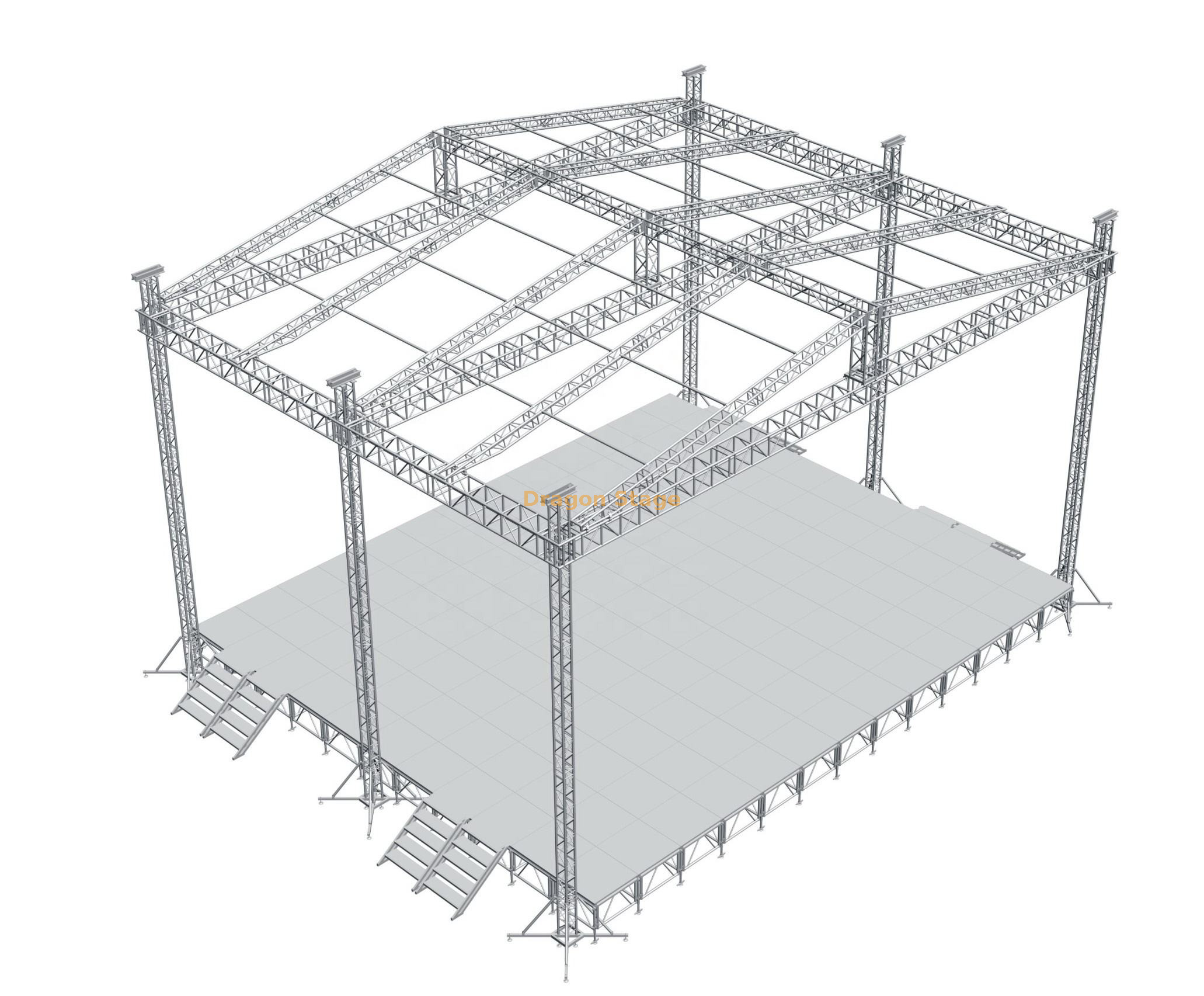

20x20x12m Stage Truss System Aluminum for Events with Roof

5 0 Reviews

total sizes are 20m wide, 20m deep, and 12m Stage Truss System Aluminum for Events with Roof

Price: ￥ 186644 - 281472


fea:	economical high grade
Availability:



Inquire

Brand:
Dragonstage

Product Description

20x20x12m Stage Truss System Aluminum for Events with Roof

economical plan and manual hoist system

packing weight: 4350

packing volume: 54cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
20.00 m Beam(front)	3 sets	3.00 m	50×3.0	CS500×600	18pcs
		2.00 m	50×3.0	CS500×600	0pcs
		1.00 m	50×3.0	CS500×600	6pcs
18.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS500×600	12pcs
		2.00 m	50×3.0	CS500×600	0pcs
		1.00 m	50×3.0	CS500×600	4pcs
11.00 m Pillar	6 sets	3.00 m	50×3.0	CS389×389	18pcs
		2.00 m	50×3.0	CS389×389	6pcs
		1.00 m	50×3.0	CS389×389	0pcs
beam cube	6 faces	CS500×600			0pcs
Frame Tower	Spigot Sleeve Block M				6pcs
	Steel Base M				6pcs
	Top Section M				6pcs
	Manual hoist,BA05 2Tons				6pcs
	Spigot Hinge Section,Height 1m				6pcs
	Fibre sling,BA04,2 tons 3m				6pcs
	Long outrigger				24pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	3 sets	2.00 m	50×3.0	CS389×389	3pcs
18.00 m Top Beam	1 sets	3.00 m	50×3.0	CS389×389	6pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	2pcs
10.20 m Oblique Beam	6 sets	3.00 m	50×3.0	CS389×389	12pcs
		2.00 m	50×3.0	CS389×389	6pcs
		2.20 m	50×3.0	CS389×389	6pcs
10.20 m Ladder truss	14 sets	3.00 m	50×3.0	CL40,389*50	28pcs
		2.00 m	50×3.0	CL40,389*50	14pcs
		2.20 m	50×3.0	CL40,389*50	14pcs
Roof Components	4	roof conner 4 ways, use for roof beam truss		CS389×389	2pcs
	5	roof conner 5 ways, use for roof beam truss		CS389×389	1pcs
	1	Connect plate with clamp		CS389×389	3pcs
		Single clamp			28pcs
		Double clamp			12pcs
		roof canopy material:pvc, Blue Colour or customized.		525.76	1pcs

high grade plan

packing weight:4200kg

packing volume: 74cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
20.00 m Beam(front)	3 sets	3.00 m	50×5.0	CS680×1010	18pcs
		2.00 m	50×5.0	CS680×1010	0pcs
		1.00 m	50×5.0	CS680×1010	6pcs
20.00 m Beam(side)	2 sets	3.00 m	50×5.0	CS680×1010	12pcs
		2.00 m	50×5.0	CS680×1010	0pcs
		1.00 m	50×5.0	CS680×1010	4pcs
11.00 m Pillar	6 sets	3.00 m	FALSE	CS520×520	18pcs
		2.00 m	FALSE	CS520×520	6pcs
		1.00 m	FALSE	CS520×520	0pcs
beam cube	Spigot cube 680x1010				0pcs
Frame Tower	Spigot Sleeve Block L				6pcs
	Steel Base L				6pcs
	Top Section L				6pcs
	1. Dragon stage brand, Load:1000kg, 2. Chain length:25m, 3. lifting speed:4m/min, 4. 380V-3phrase-50HZ 5. Double brake 6. G100 load chain, meeting 8:1/10:1 safety factor. 7. With 0.5M 4Pin-16A Europe plug 8. waterproof: IP54				6pcs
	1control 8pcs, with Handle case				1pcs
	Spigot Hinge Section,Height 1m				6pcs
	Fibre sling,BA04,2 tons 3m				6pcs
	Long outrigger				24pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	3 sets	2.00 m	50×3.0	CS389×389	3pcs
20.00 m Top Beam	1 sets	3.00 m	50×3.0	CS389×389	6pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	2pcs
10.20 m Oblique Beam	6 sets	3.00 m	50×3.0	CS389×389	12pcs
		2.00 m	50×3.0	CS389×389	6pcs
		2.20 m	50×3.0	CS389×389	6pcs
10.20 m Ladder truss	16 sets	3.00 m	50×3.0	CL40,389*50	32pcs
		2.00 m	50×3.0	CL40,389*50	16pcs
		2.20 m	50×3.0	CL40,389*50	16pcs
Roof Components		roof conner 4 ways, use for roof beam truss		CS289×289	2pcs
		roof conner 5 ways, use for roof beam truss		CS289×289	1pcs
		Connect plate with clamp			3pcs
		Single clamp			32pcs
		Double clamp			12pcs
		roof canopy material:pvc, Blue Colour or customized.		571.36	1pcs
