packing weight: 720kg
packing volume: 6.5cbm
| Item | Specification(squre truss) | Qty |
| length(M) | main tube(MM) | size(MM) |
| Upper Beam | 3 | 50×3.0 | CS389×389 | 4 pcs |
| 2 | 50×3.0 | CS389×389 | pcs |
| 1 | 50×3.0 | CS389×389 | pcs |
| Ground Beam | 3 | 50×3.0 | CS289×289 | 4 pcs |
| 2 | 50×3.0 | CS289×289 | pcs |
| 1 | 50×3.0 | CS289×289 | pcs |
| Pillar Support Beam | 2 | 50×3.0 | CS289×289 | 4 pcs |
| Pillar | 3 | 50×3.0 | CS289×289 | 4 pcs |
| 2 | 50×3.0 | CS289×289 | 2 pcs |
| 1 | 50×3.0 | CS289×289 | pcs |
| Tower | Spigot Sleeve Block S | 2 pcs |
| Top Section S | 2 pcs |
| Manual hoist,BA05 2Tons | 2 pcs |
| Spigot Hinge Section,Height 1m | 2 pcs |
| Fibre sling,BA04,2 tons 3m | 2 pcs |
| Diagonal bar | 8 pcs |
| cube connector | CS289×289 | 2 pcs |
| Steel Base | 18 pcs |
| Truss Accessory | Conical coupler & Safrty clip & pin | whole
set |
Maximize your visual impact with our Professional 12m x 8.5m Aluminum LED Screen Portal Truss System.
Engineered for durability and ease of transport, this mobile assembly is the industry standard for supporting large-format LED displays at concerts, festivals, and corporate events.
Key Technical Features:

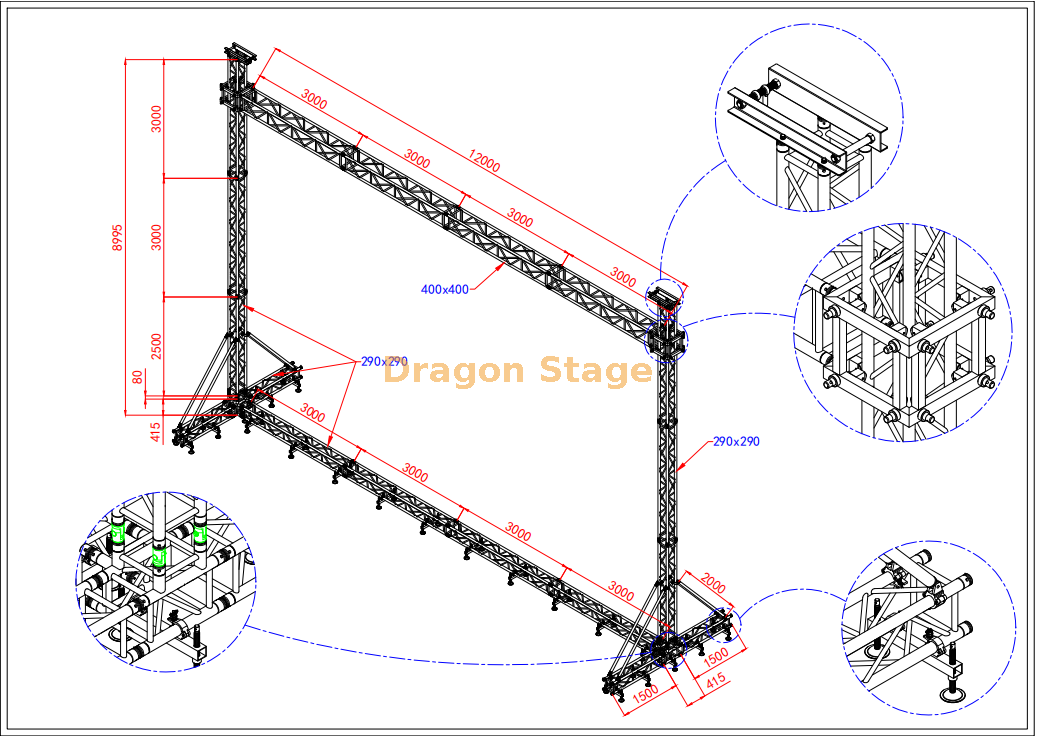

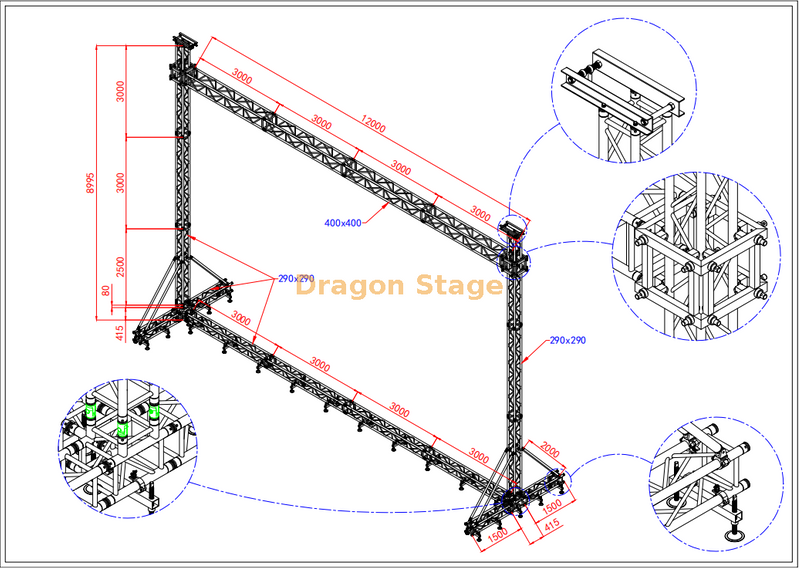

Dimensions: A massive 12,000mm (12m) span with an adjustable working height of up to 8,995mm (approx. 9m), specifically designed to house an 8.5m high LED wall.
High-Grade Construction: Built from premium Aluminum Alloy for a high strength-to-weight ratio, ensuring it can handle heavy equipment loads while remaining corrosion-resistant.
Modular Truss Components: Utilizes a robust 400x400mm main horizontal beam and 290x290mm vertical pillars for maximum structural integrity.
Mobile & Stable: Features a reinforced base with outriggers and adjustable leveling feet, allowing for a perfectly level setup even on uneven outdoor terrain.
Precision Engineering: Includes specialized top-section pulleys and secure corner block connectors (as shown in detail views) for smooth screen hoisting and secure locking.
Why Choose This System?
Whether you are a rental company or an event organizer, this truss system provides a "plug-and-play" solution for high-altitude rigging. The spigot-connection design ensures rapid assembly and disassembly, reducing labor costs and setup time.
