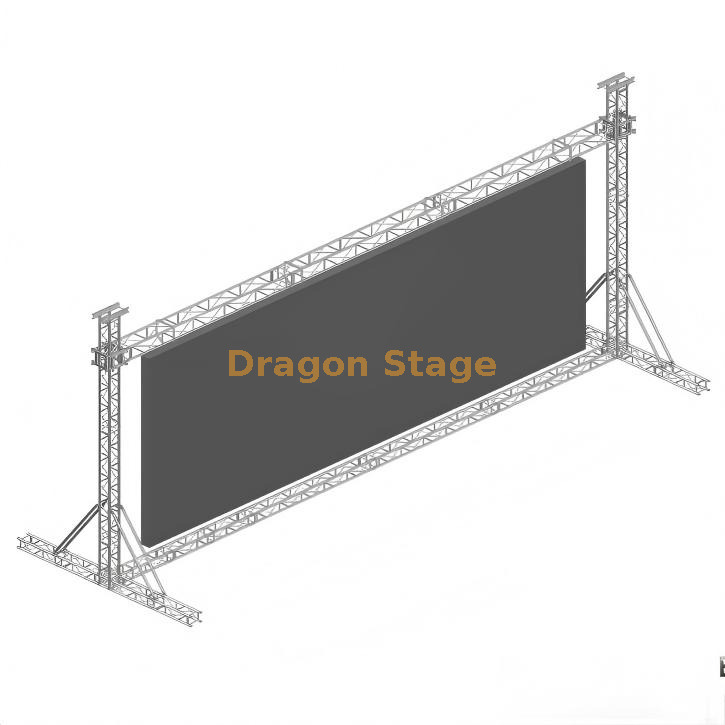

What is the 11x5m Aluminum Alloy Goal Post LED Screen Support Truss System?It is a specialized aluminum goal post truss designed to securely hold large LED video walls and screens. Built with high-grade aluminum alloy, it delivers excellent strength-to-weight ratio, easy transport, and quick setup while meeting professional event safety standards.
Why Choose Dragon Stage Goal Post Truss?
✅ High load capacity & TÜV-level safety ✅ Fast modular assembly for any venue ✅ Lightweight aluminum alloy for easy transport ✅ Custom sizes & configurations available ✅ Proven in concerts, exhibitions & large events
packing weight:630kg
packing volume:11cbm
| Item | Specification(squre truss) | Qty |
| length(M) | main tube(MM) | size(MM) |
| Upper Beam | 3 | 50×4.0 | CS520×760 | 3 pcs |
| 2 | 50×4.0 | CS520×760 | 1 pcs |
| 1 | 50×4.0 | CS520×760 | pcs |
| Ground Beam | 3 | 50×3.0 | CS389×389 | 3 pcs |
| 2 | 50×3.0 | CS389×389 | 1 pcs |
| 1 | 50×3.0 | CS389×389 | pcs |
| Pillar Support Beam | 1.5 | 50×3.0 | CS389×389 | 4 pcs |
| Pillar | 3 | 50×3.0 | CS389×389 | 2 pcs |
| 2 | 50×3.0 | CS389×389 | 2 pcs |
| 1 | 50×3.0 | CS389×389 | pcs |
| Tower | Spigot Sleeve Block L | 2 pcs |
| Top Section L | 2 pcs |
| Manual hoist,BA05 2Tons | 2 pcs |
| Spigot Hinge Section,Height 1m | 2 pcs |
| Fibre sling,BA04,2 tons 3m | 2 pcs |
| Diagonal bar | 8 pcs |
| cube connector | CS389×389 | 2 pcs |
| Steel Base | 8 pcs |
| Truss Accessory | Conical coupler & Safrty clip & pin | whole
set |
This heavy-duty goal post truss system is a professional-grade
structural solution specifically engineered to support large-scale LED video walls. Constructed from high-strength Aluminum Alloy 6061-T6, this system provides a perfect balance of lightweight portability and superior load-bearing capacity for indoor and
outdoor events.
Key Features:
Optimal Dimensions: Designed to accommodate an 11m width and 5m height LED display, making it ideal for concert backdrops and large-scale advertising.
Modular Goal Post Design: The "goal post" or "gantry" configuration ensures high stability and easy rigging for hanging LED panels safely.
Durable Construction: Made from corrosion-resistant aluminum alloy with smooth welding points for long-term durability and user safety.
Quick Assembly: The mobile stage design allows for rapid setup and teardown, saving manual power and time during event transitions.
Versatile Application: Perfect for outdoor concerts, exhibitions, wedding parties, and stadium advertisements where a reliable LED support structure is required.
1. What is the maximum load capacity of the 11x5m goal post truss?It is engineered for heavy LED screens with industry-leading load ratings. For detailed weight guidance, refer to How much weight can a lighting truss hold?. Contact us for a configuration-specific load analysis.
2. Is this aluminum goal post truss suitable for outdoor events?Yes. Its corrosion-resistant aluminum alloy and modular design make it perfect for outdoor concerts, festivals, and exhibitions.
3. How long does it take to assemble the system?Most crews complete full setup in 2–4 hours thanks to the intuitive spigot connections and modular components, saving valuable time on site.
