Strong Heavy Duty Spigot Truss Roof Tent for Events Concerts 50x20x12m

5 0 Reviews

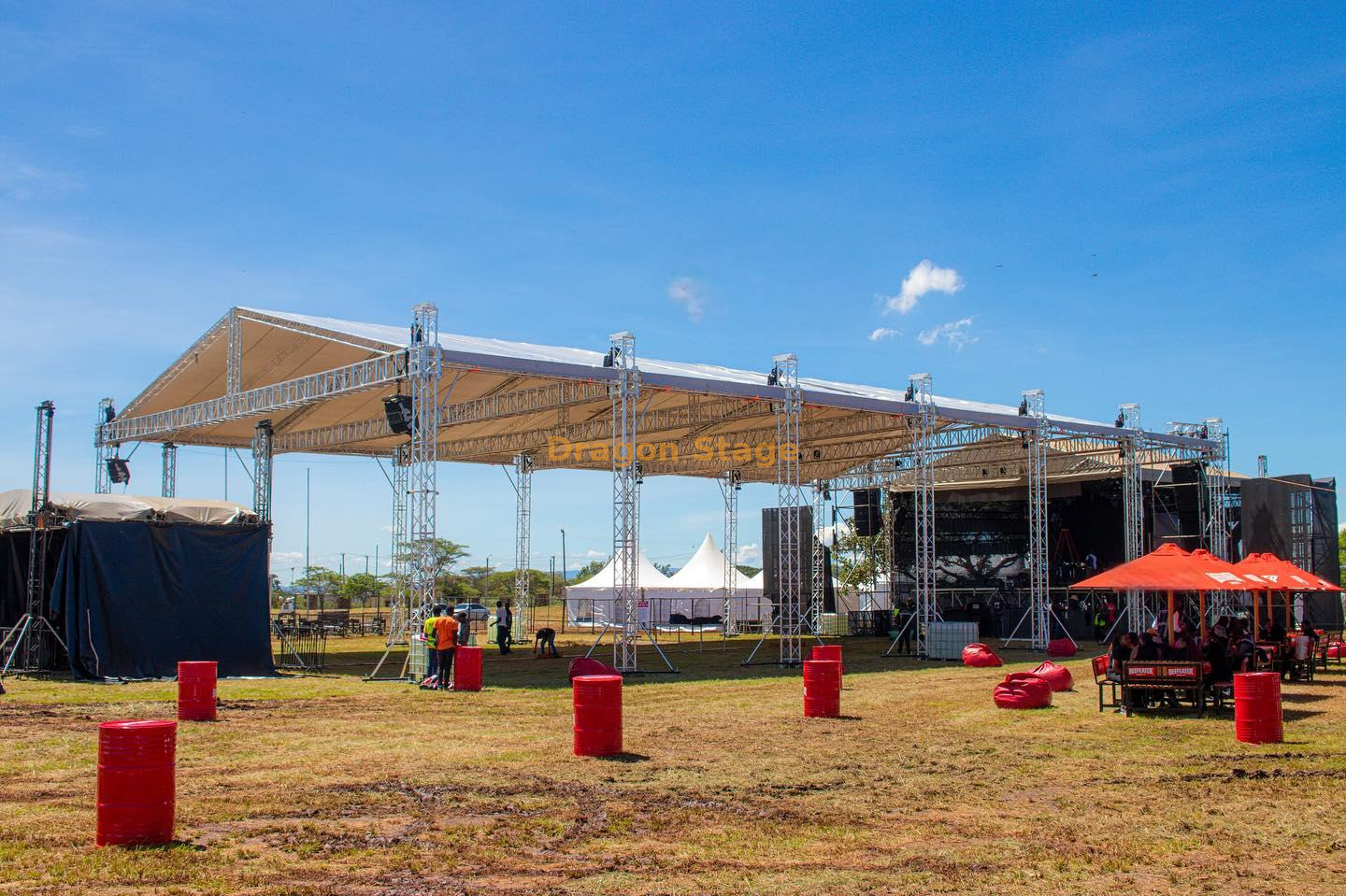

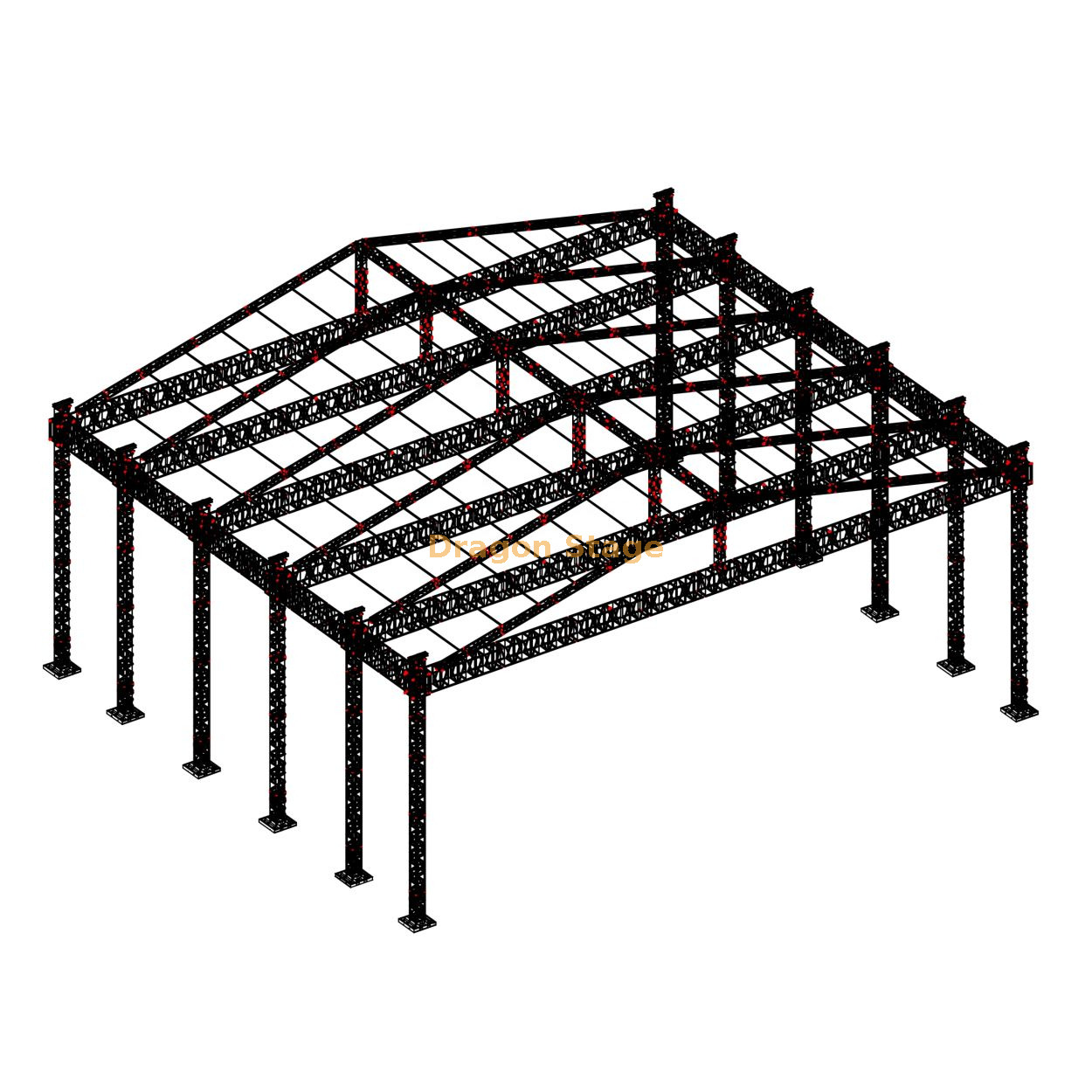

this is a large roof cover tent made of truss system

total wide 20m and deep 50m, height 12m, it can be adjustable from ground to heights.

Price: ￥ 451666

packing weight: 10700kg

packing volume: 98cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
20.00 m Beam(front)	6 sets	3.00 m	50×4.0	CS520×760	36pcs
		2.00 m	50×4.0	CS520×760	6pcs
		1.00 m	50×4.0	CS520×760	0pcs
50.00 m Beam(side)	2 sets	3.00 m	50×4.0	CS520×760	30pcs
		2.00 m	50×4.0	CS520×760	0pcs
		1.00 m	50×4.0	CS520×760	10pcs
11.00 m Pillar	12 sets	3.00 m	50×3.0	CS389×389	36pcs
		2.00 m	50×3.0	CS389×389	12pcs
		1.00 m	50×3.0	CS389×389	0pcs
beam cube	6 faces	CS520×760			0pcs
Frame Tower	Spigot Sleeve Block L				12pcs
	Steel Base L				12pcs
	Top Section L				12pcs
	Manual hoist,BA05 2Tons				12pcs
	Spigot Hinge Section,Height 1m				12pcs
	Fibre sling,BA04,2 tons 3m				12pcs
	Long outrigger				48pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	6 sets	2.00 m	50×3.0	CS389×389	6pcs
50.00 m Top Beam	1 sets	3.00 m	50×3.0	CS389×389	15pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	5pcs
10.20 m Oblique Beam	12 sets	3.00 m	50×3.0	CS389×389	24pcs
		2.00 m	50×3.0	CS389×389	12pcs
		2.20 m	50×3.0	CS389×389	12pcs
10.20 m Ladder truss	40 sets	3.00 m	50×3.0	CL40,389*50	80pcs
		2.00 m	50×3.0	CL40,389*50	40pcs
		2.20 m	50×3.0	CL40,389*50	40pcs
Roof Components	4	roof conner 4 ways, use for roof beam truss		CS389×389	2pcs
	5	roof conner 5 ways, use for roof beam truss		CS389×389	4pcs
	1	Connect plate with clamp		CS389×389	6pcs
		Single clamp			80pcs
		Double clamp			24pcs
		roof canopy material:pvc, Blue Colour or customized.		1255.36	1pcs
