Outdoor Portable Exhibition Concert Events Wedding Stage Lighting Show Speaker Aluminum Truss with Curved Roof LED Display Truss TUV SGS CE 24x12x20ft

Packing weight: 1800KG

Packing volume: 15CBM

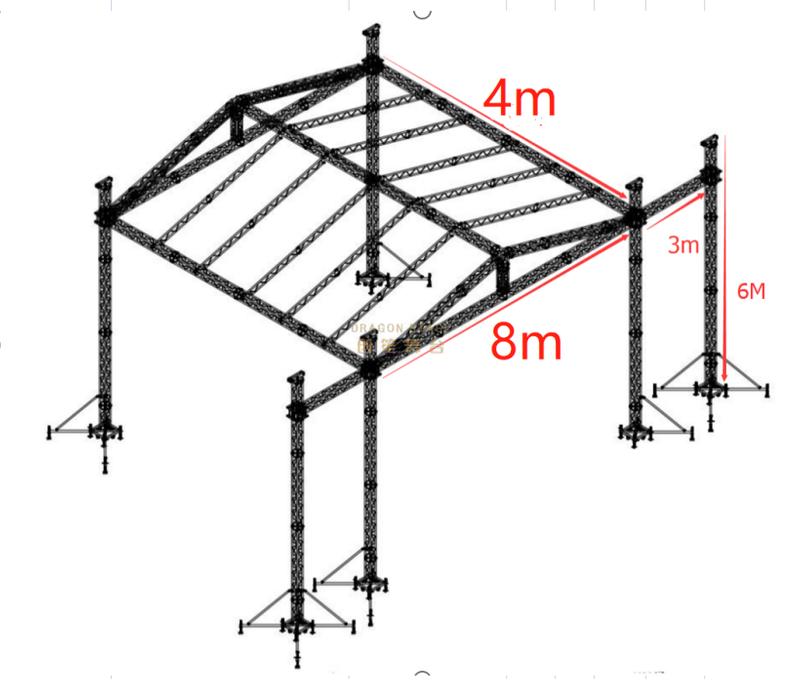

Aluminum Spigot Truss System			8	X	4	X	6	(meters)	wing：3m
NO.	Picture	Item	Specification(squre truss)						Qty
			length(M)			main tube(MM)		size(MM)
1		Beam	3			50×3.0		CS289×289	6 pcs
			2			50×3.0		CS289×289	6 pcs
2		Pillar	3			50×3.0		CS289×289	6 pcs
			2			50×3.0		CS289×289	6 pcs
3		Tower	Spigot Sleeve Block S						6 pcs
4			Steel Base S						6 pcs
5			Top Section S						6 pcs
6			T1,Manual hoist, 1tons, 6m						6 pcs
7			CS30+C44,Spigot Hinge Section,Height 1m						6 pcs
8			T4,Fibre sling,2Tons,3m						6 pcs
9			T9, Long outrigger						24 pcs
NO.	Picture	Item	Specification(squre truss)						Qty
			length(M)			main tube(MM)		size(MM)
10		Roof Pillar	0.8			50×3.0		CS30,289*289	2 pcs
11		Top Beam	4			50×3.0		CS30,289*289	1 pcs
12		Oblique Beam	4.2			50×3.0		CS30,289*289	4 pcs
13		Ladder truss	4.2			50×3.0		CL30,  289*50	2 pcs
14		Roof Accessories	roof 4 wayes conner,                                          Match Top beam and oblique beam                      (CS30, Square truss 289x289mm)						2 pcs
15			Connect plate with clamp						2 pcs
16			Single clamp						4 pcs
17			Double clamp						8 pcs
18			roof canopy material:pvc,       Blue Colour or customized.					63.36	1 pcs
19		Truss Accessory	Conical coupler & Safety clip & pin						whole  set
Aluminium stage MS01B Stage       Material:6061-T6    main tube:50x3mm
Height(m)	Length(m)	Width(m)	each stage size: 1.22*2.44m
0.6-1	7.32 m	3.66 m
NO.	Picture	Item	Specification						Quantity
1		Aluminium assembly stage	Topping: 4x8ft (1.22x2.44m)				18mm Anti slip plywood		9 pcs
2			1.22m stage brace						12 pcs
3			2.44m stage brace						12 pcs
4			stand with extendable tube						16 pcs
5			Stage adjustable base						16 pcs
6		Stage Stair	18mm Anti slip plywood			total	4	steps	2 pcs

Professional 24x12x20ft Curved Roof Aluminum Truss for Concerts, Weddings, and Exhibitions

1. Introduction

High-profile events—from elegant outdoor weddings to dynamic concert stages—require a structural solution that is as visually impressive as it is safe. The DragonStage 24x12x20ft Curved Roof Aluminum Truss System is a premium, multi-purpose rigging solution designed for maximum versatility. Featuring a unique curved roof profile that stands 20 feet high, this system provides superior clearance and a modern aesthetic that traditional flat roofs cannot match. Whether you are mounting high-definition LED displays for an exhibition or professional lighting for a wedding show, this TUV-certified structure offers the reliability required for world-class production.

2. Industry Challenges & Professional Solutions

Event production teams often struggle with the dual requirement of mounting heavy LED screens while maintaining a portable footprint. Traditional rigs often require separate, bulky support structures for video walls, which can clutter the stage and complicate the build. Additionally, outdoor events are constantly at the mercy of the weather; water pooling on flat roof canopies is a leading cause of structural stress.²

DragonStage solves these challenges through precision-engineered curved architecture. The curved roof design naturally facilitates rapid water runoff, significantly reducing the risk of weight accumulation during heavy rain. Furthermore, this 24x12x20ft system is designed with integrated support points for LED displays and speakers, allowing for a clean, unified stage look. The use of high-strength 6082-T6 aluminum ensures that the 24ft span remains rigid under load while being light enough for rapid deployment and cost-effective transport.

3. Key Features & Operational Benefits

The 24x12x20ft curved truss is an investment in durability and international safety standards.

Specialized Curved Roof Geometry

The arc design of the roof is not just for aesthetics; it provides enhanced structural strength compared to flat horizontal beams of the same length. This allow for a clear 24ft span without internal supports, giving performers and exhibitors 288 square feet of unobstructed floor space. The curved profile also improves the aerodynamic performance of the structure in outdoor wind conditions (Source:https://www.dragontruss.com/Aluminum-Truss-pl3962133.html).

Certified Safety: TUV, SGS, and CE

Safety is non-negotiable for public events. Every component of this system—from the conical couplers to the heavy-duty sleeve blocks—meets rigorous international safety standards. DragonStage provides full TUV, SGS, and CE documentation, ensuring that event organizers can secure venue permits and insurance coverage with confidence.³ This certification confirms that the structural load-bearing calculations are verified by independent engineering bodies (Source:https://www.dragontruss.com/TUV-Report-dc249965.html).

Ground Support Lifting System

To maximize crew safety, the 24x12x20ft structure utilizes a professional ground support system. This allows the lighting, LED screens, and roof canopy to be rigged at ground level. Once the rig is complete, the entire 20ft tall structure is elevated using manual or electric hoists, eliminating the need for technicians to work at dangerous heights during the build process.

4. Practical FAQ for Stage Professionals

5. Strong Call to Action (CTA)

Elevate your next exhibition or concert with a structure that combines safety, scale, and sophisticated design. Trust DragonStage to provide the engineering excellence your brand deserves.

Contact the DragonStage technical team today for a custom quote on our 24x12x20ft curved roof truss and take your event production to the next level.
