Material: The system is made from aluminum alloy 6061, a national standard material known for being lightweight yet strong, as well as waterproof and rust-proof.
Dimensions: The truss system is specified for a 15x6x8m (length x width x height) configuration.
Truss Type: It utilizes both spigot and screw connection types. Spigot connections are generally known for their ease and speed of assembly and disassembly.
Main Tube Dimensions: The main tubes for the beam sections are 50mm x 3.0mm.

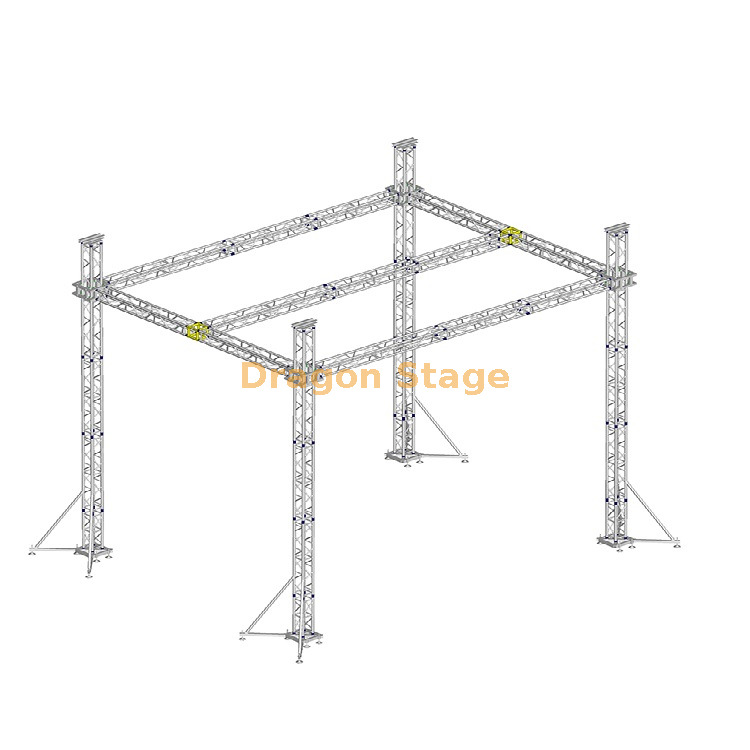

New Coming Spigot Square Screw Stage Trusses Lighting Truss 15x6x8m
weight：1180kg
volume：14cbm
Truss details:
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 15.00 m Beam(front) | 3 sets | 3.00 m | 50×3.0 | BS400×400 | 15pcs |
| 2.00 m | 50×3.0 | BS400×400 | 0pcs |
| 1.00 m | 50×3.0 | BS400×400 | 0pcs |
| 6.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | BS400×400 | 4pcs |
| 2.00 m | 50×3.0 | BS400×400 | 0pcs |
| 1.00 m | 50×3.0 | BS400×400 | 0pcs |
| 7.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | BS300×300 | 8pcs |
| 2.00 m | 50×3.0 | BS300×300 | 0pcs |
| 1.00 m | 50×3.0 | BS300×300 | 4pcs |
| beam cube | cube 400x400 | 2pcs |
| Frame Tower | Bolt Truss Sleeve Block S | 4pcs |
| Steel Base S | 4pcs |
| Top Section S | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
Stage details:
| Item | Specification | Quantity |
| Aluminium assembly stage | Topping: 4x8ft(1.22x2.44m) | 18mm Anti slip plywood | 30 pcs |
| 1.22m stage brace | 35 pcs |
| 2.44m stage brace | 36 pcs |
| stand with extendable tube | 42 pcs |
| Stage adjustable base | 42 pcs |
| Stage Stair | 18mm Anti slip plywood | total | 5 | steps | 2 pcs |
