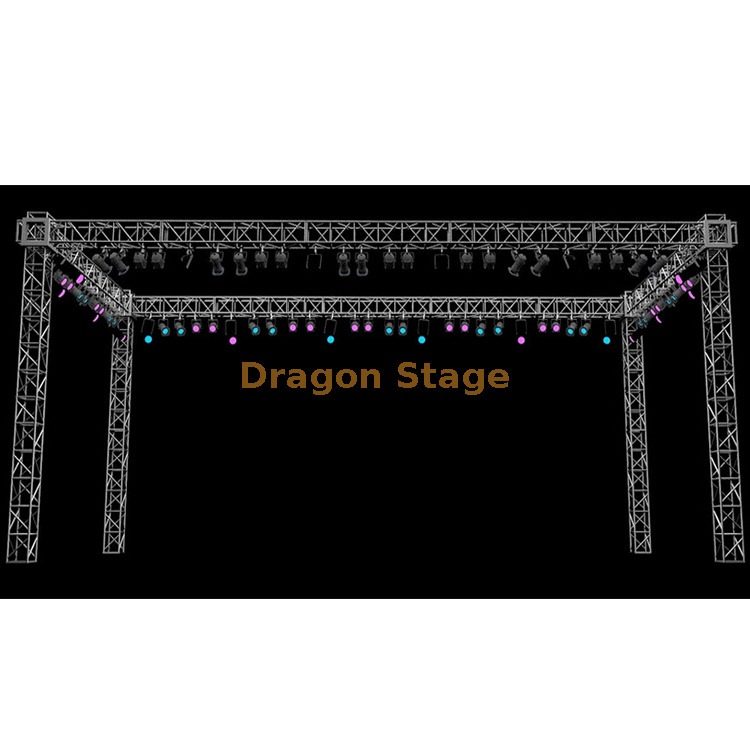

The 40x30x30ft truss system is a substantial, professional-grade structure designed for concert touring, large-scale events, and exhibitions, often including a roof system for outdoor use.
Material: The truss is constructed from high-strength aircraft-grade 6061 aluminum alloy. This material is chosen for its superior strength, durability, and lightweight properties, which facilitates easier transport and assembly compared to steel alternatives.
Design: It is a modular box (square) truss system, allowing for custom configurations and relatively easy setup. The specific dimensions of 40ft (length) x 30ft (width) x 30ft (height) require heavy-duty components, often utilizing 390x390mm or larger main truss segments for adequate load-bearing capacity and stability.
Safety & Certification: Reputable manufacturers, such as those mentioned in the search results, produce their truss according to TÜV Rheinland specifications and other high safety standards, with welding performed by certified professionals.
Applications: The system is designed to support heavy equipment such as professional lighting systems, large-format LED screens, sound systems, and various scenic elements.
packing weight: 1100kg
packing volume: 12cbm
| Item | Specification(squre truss) | Qty |
| length(M) | main tube(MM) | size(MM) |
| Beam | 3 | 50×3.0 | CS389×389 | 14 pcs |
| 2 | 50×3.0 | CS389×389 | pcs |
| 1 | 50×3.0 | CS389×389 | pcs |
| Pillar | 3 | 50×3.0 | CS289×289 | 8 pcs |
| 2 | 50×3.0 | CS289×289 | 4 pcs |
| 1 | 50×3.0 | CS289×289 | pcs |
| Tower | Spigot Sleeve Block S | 4 pcs |
| Steel Base S | 4 pcs |
| Top Section S | 4 pcs |
| Manual hoist,BA05 2Tons | 4 pcs |
| Spigot Hinge Section,Height 1m | 4 pcs |
| Fibre sling,BA04,2 tons 3m | 4 pcs |
| Long outrigger | 16 pcs |
| Truss Accessory | Conical coupler & Safrty clip & pin | whole
set |
