4296-BS300 Curved Round Tube Bolt-Connected Aluminum Truss Design for Lighting and Decorative Structures
Drawing File Reference
Drawing Index
4296
Related Drawing Files

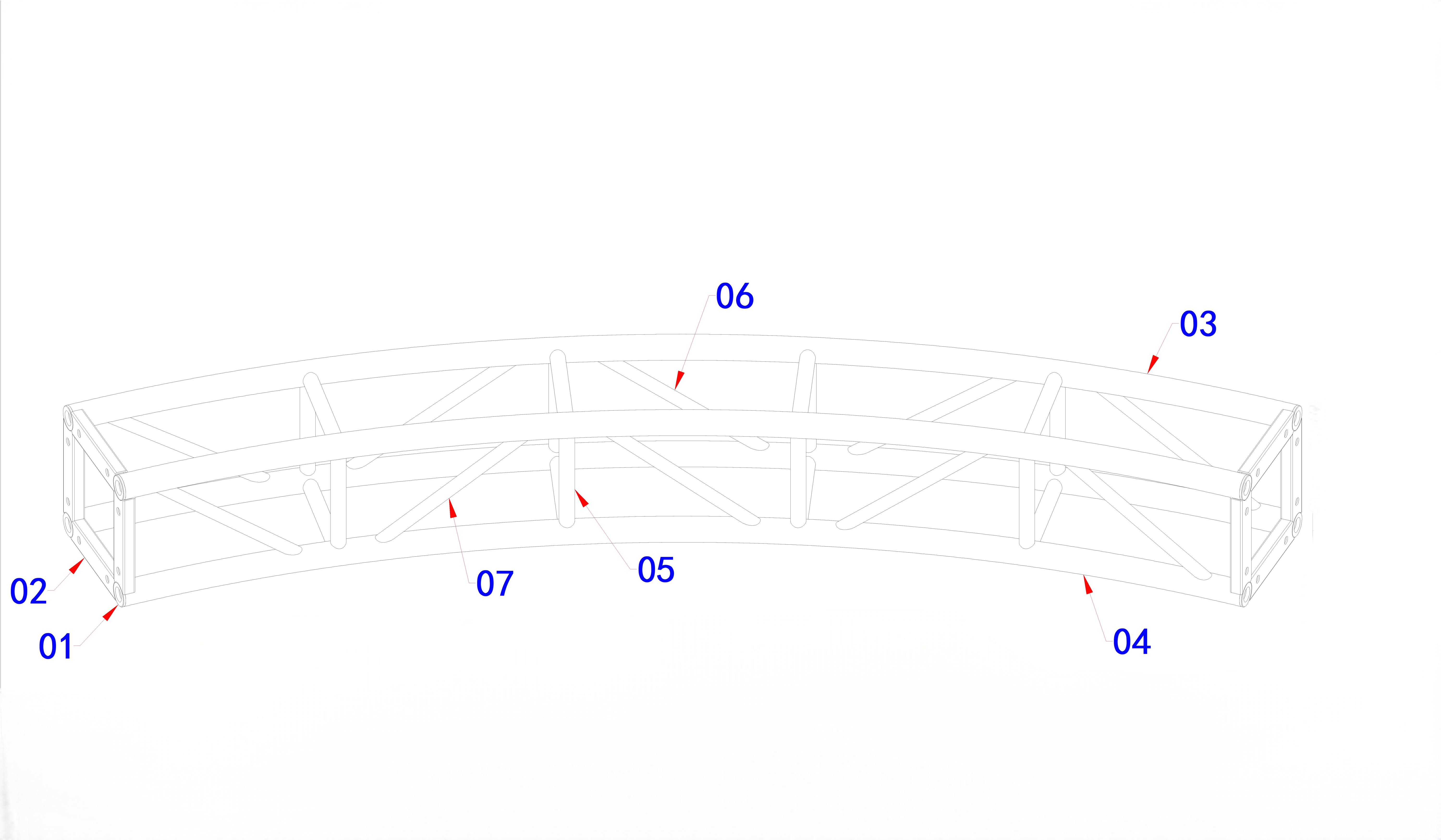

The above drawing represents a customized curved configuration of the BS300 round tube bolt-connected aluminum truss design.
The drawing index is used as a reference for locating related CAD drawings and production records.
Drawing Information
Item
Details
Drawing Index
4296
Drawing Series
BS300 Curved Round Tube Bolt-Connected Truss
Structure Type
Customized Curved Aluminum Truss Component
Application
Indoor and Outdoor Lighting Structure / Decorative Structure
Cross Section
Width 300mm × Height 300mm
Main Tube
50mm Aluminum Round Tube
Curvature Radius
R4.87m
Environment
Indoor and Outdoor Applications
Material
Aluminum Alloy
Connection System
Bolt Connection
Drawing Type
2D CAD Drawing
Design Purpose
Curved Lighting Structure Component
4296-BS300 Curved Bolt Truss Design for Lighting and Event Structures
Introduction
This drawing archive presents the 4296-BS300 curved round tube bolt-connected aluminum truss component developed for lighting structures, decorative frameworks and customized event installations.
The drawing is indexed under reference 4296, and the related drawing file represents a customized curved configuration based on the BS300 round tube bolt-connected truss design.
The BS300 curved truss series is designed for applications where straight truss sections cannot meet the required visual layout. By customizing the curvature radius, the structure can achieve different arc shapes for lighting arrangements, decorative installations and entertainment structures.
This drawing adopts a R4.87m curved radius, providing a different curved layout option compared with other BS300 curved truss configurations.
Design Overview
The 4296-BS300 adopts a modular curved bolt-connected round tube structure.
Compared with fixed welded curved structures, bolt-connected truss components provide advantages in:
Transportation efficiency;
Storage convenience;
Flexible assembly;
Customized structural configuration.
The curved design allows the BS300 truss system to be integrated into:
Arc-shaped lighting structures;
Decorative event frameworks;
Bar and entertainment lighting systems;
Customized exhibition structures.
The connection method is an important factor when selecting temporary structure components. Different connection systems, such as spigot connection, bolt connection and plate connection, are selected according to application requirements.
More information about truss connection methods can be found in:
For curved truss structures, the curved component is only one part of the complete structural system.
The final configuration depends on:
Curvature radius;
Overall structure dimensions;
Lighting equipment loads;
Supporting method;
Installation environment;
Safety requirements.
Compared with standard straight truss sections, curved trusses require additional customization during manufacturing because the radius directly affects fabrication accuracy and final assembly.
Aluminum alloy is widely used for temporary event structures because of its lightweight characteristics, corrosion resistance and clean appearance.
For future purchasing applications, this drawing archive can be connected with:
BS300 Curved Round Tube Bolt Truss
Possible product configuration:
BS300 Curved Truss R4.87m
Related product applications:
Bar Lighting Truss;
Decorative Lighting Structure;
Curved Event Truss.
The drawing archive demonstrates Dragon Stage's custom design capability, while product pages provide purchasing information and specifications.
FAQ
1. What is the BS300 curved bolt truss mainly used for?
The BS300 curved bolt truss is mainly designed for curved lighting structures, decorative frameworks and customized event structures.
2. What does R4.87m mean in this drawing?
R4.87m represents the curvature radius of the curved truss section. Different radius values create different arc shapes.
3. Can Dragon Stage customize different curved radius sizes?
Yes. The curved radius can be customized according to project requirements, installation space and structural design requirements.
4. What is the difference between curved BS300 truss and straight BS300 truss?
Straight BS300 truss is mainly used for linear structures, while curved BS300 truss is designed for arc-shaped layouts and special visual designs.
5. Can this curved truss be used outdoors?
Yes. It can be used outdoors, but the complete structure should consider environmental factors such as wind load, supporting conditions and installation requirements.
Design Notice
The drawings shown in this archive are provided for reference purposes to demonstrate Dragon Stage's custom design capability.
Final structural design should be confirmed according to actual project requirements, loading conditions, installation environment and applicable safety requirements.
