20mx40x9m Extra-Large Modular Aluminum Ground Support Truss Structure (9m Height)

5 0 Reviews

Massive 20m wide, 40m deep, and 9m high ground support truss system. Engineered for maximum rigging capacity over large areas. Ideal for major festivals, large exhibition halls, and professional film/TV production sets requiring extensive overhead coverage.

Price: ￥ 307628


Availability:



Inquire

Brand:
Dragonstage

Product Description

packing weight:6980kg

packing volume:56cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
20.00 m Beam(front)	3 sets	3.00 m	50×3.0	CS500×600	18pcs
		2.00 m	50×3.0	CS500×600	3pcs
		1.00 m	50×3.0	CS500×600	0pcs
40.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS500×600	24pcs
		2.00 m	50×3.0	CS500×600	0pcs
		1.00 m	50×3.0	CS500×600	8pcs
8.00 m Pillar	10 sets	3.00 m	50×3.0	CS389×389	20pcs
		2.00 m	50×3.0	CS389×389	10pcs
		1.00 m	50×3.0	CS389×389	0pcs
beam cube	6 faces	CS500×600			FALSE
Frame Tower	Spigot Sleeve Block M				10pcs
	Steel Base M				10pcs
	Top Section M				10pcs
	Manual hoist,BA05 2Tons				10pcs
	Spigot Hinge Section,Height 1m				10pcs
	Fibre sling,BA04,2 tons 3m				10pcs
	Long outrigger				40pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	3 sets	2.00 m	50×3.0	CS389×389	3pcs
40.00 m Top Beam	1 sets	3.00 m	50×3.0	CS389×389	12pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	4pcs
10.20 m Oblique Beam	10 sets	3.00 m	50×3.0	CS389×389	20pcs
		2.00 m	50×3.0	CS389×389	10pcs
		2.20 m	50×3.0	CS389×389	10pcs
10.20 m Ladder truss	32 sets	3.00 m	50×3.0	CL40,389*50	64pcs
		2.00 m	50×3.0	CL40,389*50	32pcs
		2.20 m	50×3.0	CL40,389*50	32pcs
Roof Components	4	roof conner 4 ways, use for roof beam truss		CS389×389	2pcs
	5	roof conner 5 ways, use for roof beam truss		CS389×389	1pcs
	1	Connect plate with clamp		CS389×389	3pcs
		Single clamp			64pcs
		Double clamp			20pcs
		roof canopy material:pvc, Blue Colour or customized.		1027.36	1pcs

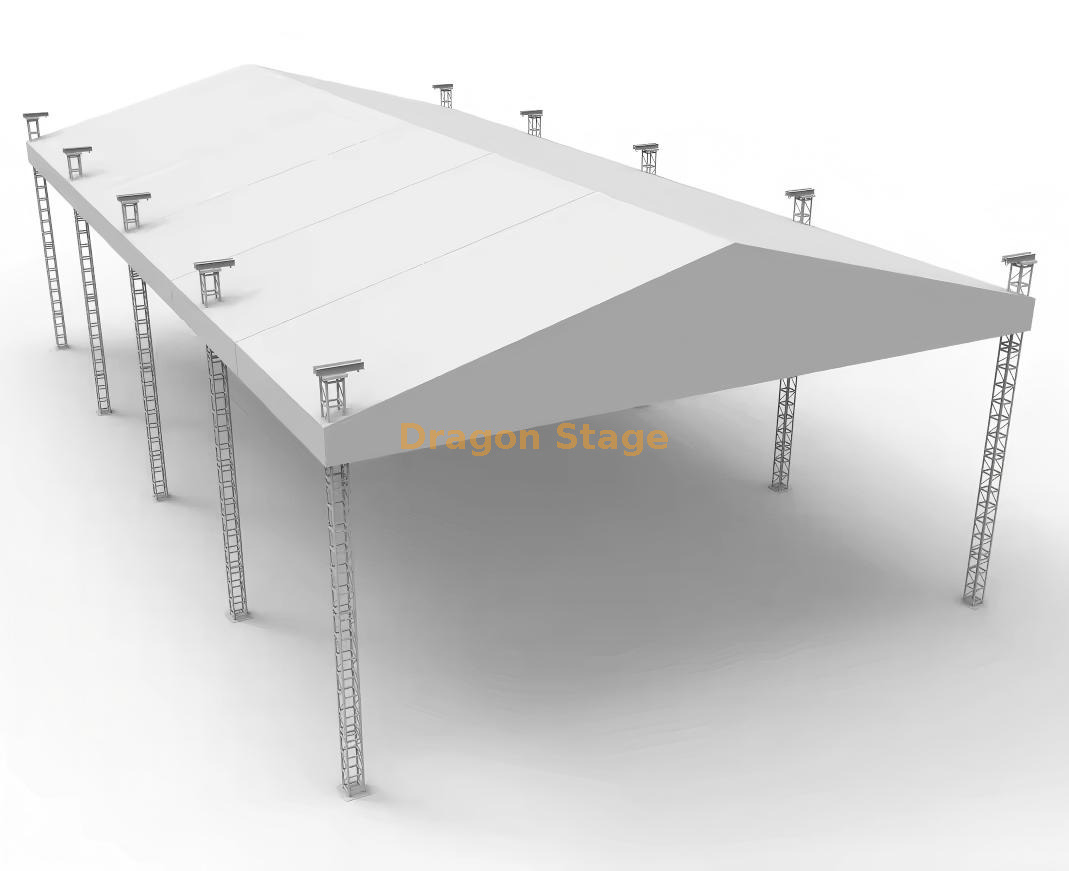

20mx40x9m Extra-Large Modular Aluminum Ground Support Truss Structure (2)

This robust Extra-Large Modular Aluminum Ground Support Truss Structure is the ultimate solution for events requiring extensive, high-load overhead rigging capabilities across a vast area. Its design is tailored for massive productions where stability, safety, and clear height are paramount.

Key Dimensions: The system offers immense coverage with a 20-meter width, an impressive 40-meter depth, and a significant 9-meter clear height, providing a large, column-free area beneath the main structure.
High Load Capacity: Utilizing a dense grid of heavy-duty aluminum box truss and multiple reinforced vertical columns, this structure is designed to support the heaviest loads, including large-scale lighting rigs, extensive sound systems (line arrays), and complex video screen arrays.
Professional Ground Support: The structure relies on robust ground supports and heavy-duty base plates, eliminating the need for complex suspension rigging from a permanent roof, making it versatile for outdoor and temporary installations.
Premium Material: Constructed from high-strength, certified 6061 aluminum alloy bolt truss, ensuring durability, structural integrity, and resistance to corrosion for all-weather event use.
