14x12x12m Professional Outdoor Performance Stage Roof Truss System

5 0 Reviews

Command the stage with our 14m x 12m outdoor performance stage roof truss system. Standing 12m high, this heavy-duty aluminum rig features a motorized hoisting system, dual 3m LED screen wings, and 2m wide speaker wings. Engineered for major festivals and stadium-level concerts requiring massive load capacity and a secure 168sqm performance area.

Price: ￥ 180518


Availability:



Inquire

Brand:
Dragonstage

Product Description

This Professional 14m x 12m Outdoor Performance Stage Roof Truss System is an elite structural solution designed for high-impact festival environments and large-scale touring productions. Standing at a towering 12-meter vertical elevation, this system provides a comprehensive and safe environment for complex lighting, massive LED displays, and high-fidelity audio arrays.

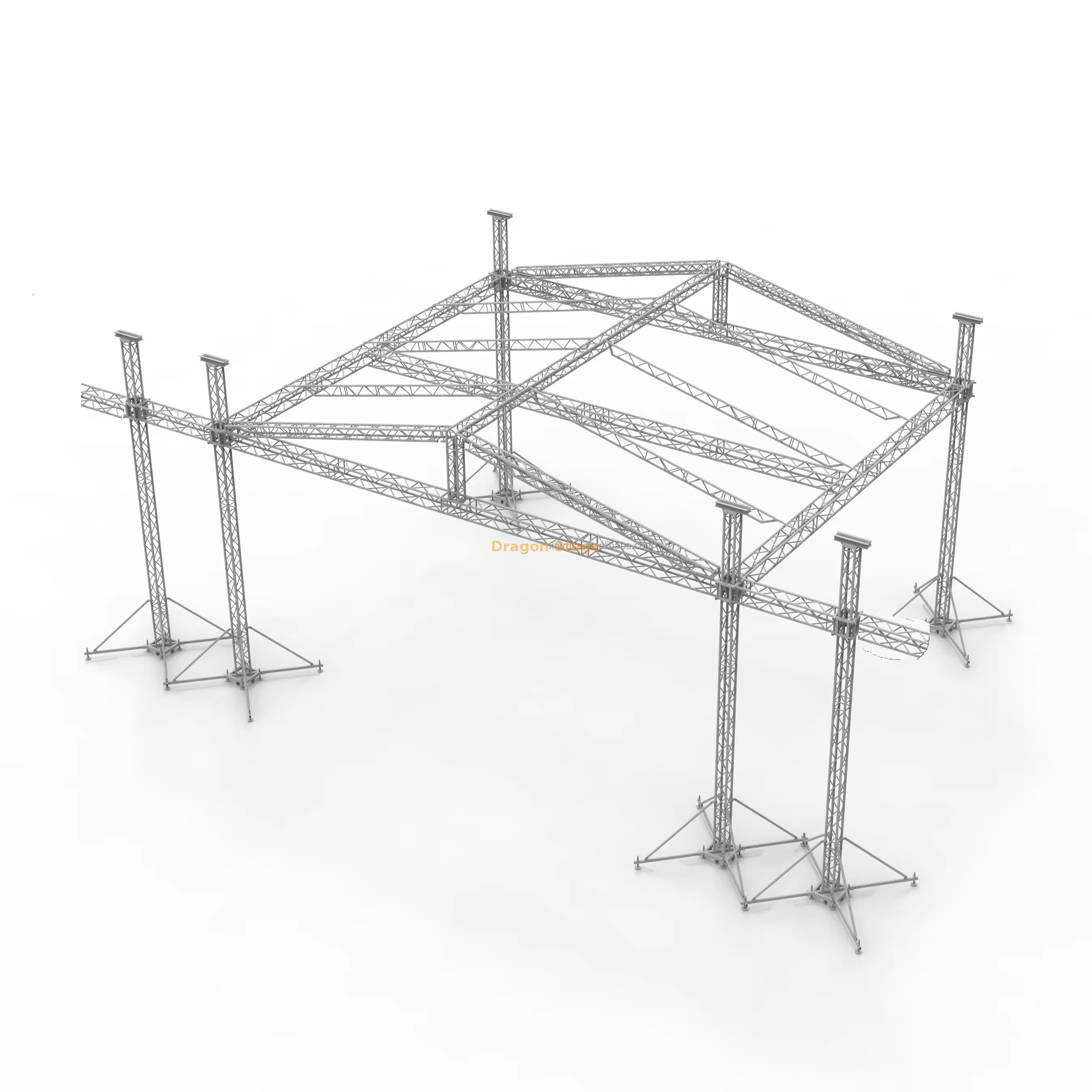

14x12x12m Professional Outdoor Performance Stage Roof Truss System

packing weight:3120kg

packing volume:29cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
14.00 m Beam(front)	3 sets	3.00 m	50×3.0	CS389×389	12pcs
		2.00 m	50×3.0	CS389×389	3pcs
		1.00 m	50×3.0	CS389×389	0pcs
12.00 m Beam(side)	3 sets	3.00 m	50×3.0	CS389×389	12pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	0pcs
11.00 m Pillar	4 sets	3.00 m	50×3.0	CS289×289	12pcs
		2.00 m	50×3.0	CS289×289	4pcs
		1.00 m	50×3.0	CS289×289	0pcs
beam cube	Spigot cube 389x389				2pcs
Frame Tower	Spigot Sleeve Block S				4pcs
	Steel Base S				4pcs
	Top Section S				4pcs
	1. Dragon stage brand, Load:2000kg, 2. Chain length:25m, 3. lifting speed:4m/min, 4. 380V-3phrase-50HZ 5. Double brake 6. G100 load chain, meeting 8:1/10:1 safety factor. 7. With 0.5M 4Pin-16A Europe plug 8. waterproof: IP54				4pcs
	1control 8pcs, with Handle case				1pcs
	Spigot Hinge Section,Height 1m				4pcs
	Fibre sling,BA04,2 tons 3m				4pcs
	Long outrigger				16pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	3 sets	1.40 m	50×3.0	CS289×289	3pcs
12.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
7.20 m Oblique Beam	4 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	4pcs
		2.20 m	50×3.0	CS289×289	4pcs
7.20 m Ladder truss	10 sets	3.00 m	50×3.0	CL30,289*50	10pcs
		2.00 m	50×3.0	CL30,289*50	10pcs
		2.20 m	50×3.0	CL30,289*50	10pcs
Roof Components		roof conner 4 ways, use for roof beam truss		CS289×289	2pcs
		roof conner 5 ways, use for roof beam truss		CS289×289	1pcs
		Connect plate with clamp			3pcs
		Single clamp			20pcs
		Double clamp			8pcs
		roof canopy material:pvc, Blue Colour or customized.		274.96	1pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
5.00 m Wings Beam	2 sets	3.00 m	50×3.0	CS389×389	2pcs
		2.00 m	50×3.0	CS389×389	2pcs
		1.00 m	50×3.0	CS389×389	0pcs
11.00 m Wings Pillar	2 sets	3.00 m	50×3.0	CS289×289	6pcs
		2.00 m	50×3.0	CS289×289	2pcs
		1.00 m	50×3.0	CS289×289	0pcs
Wings Tower	Spigot Sleeve Block S				2pcs
	Steel Base S				2pcs
	Top Section S				2pcs
	1. Dragon stage brand, Load:2000kg, 2. Chain length:25m, 3. lifting speed:4m/min, 4. 380V-3phrase-50HZ 5. Double brake 6. G100 load chain, meeting 8:1/10:1 safety factor. 7. With 0.5M 4Pin-16A Europe plug 8. waterproof: IP54				2pcs
	Spigot Hinge Section,Height 1m				2pcs
	Fibre sling,BA04,2 tons 3m				2pcs
	Long outrigger				8pcs
Truss Accessory		Conical coupler & Safrty clip & pin			whole set
