12x16x6m Professional Aluminum Triangular Roof Event Truss System

5 0 Reviews

Premier 12m x 16m aluminum triangular roof event truss system standing 6m high. Featuring a reinforced 6-pillar ground support design and an expansive 192sqm performance area with integrated safety rails. Engineered for major outdoor festivals, large-scale exhibitions, and professional concert productions requiring superior load capacity and weather drainage.

Price: ￥ 102262


Availability:



Inquire

Brand:
Dragonstage

Product Description

This Professional 12m x 16m Triangular Roof Event Truss System is an elite structural solution designed for high-impact outdoor productions and massive exhibition spaces. Combining a specialized 16-meter depth with a 6-meter vertical elevation, this system provides a comprehensive, weather-protected environment for headlining acts and large-scale corporate events.

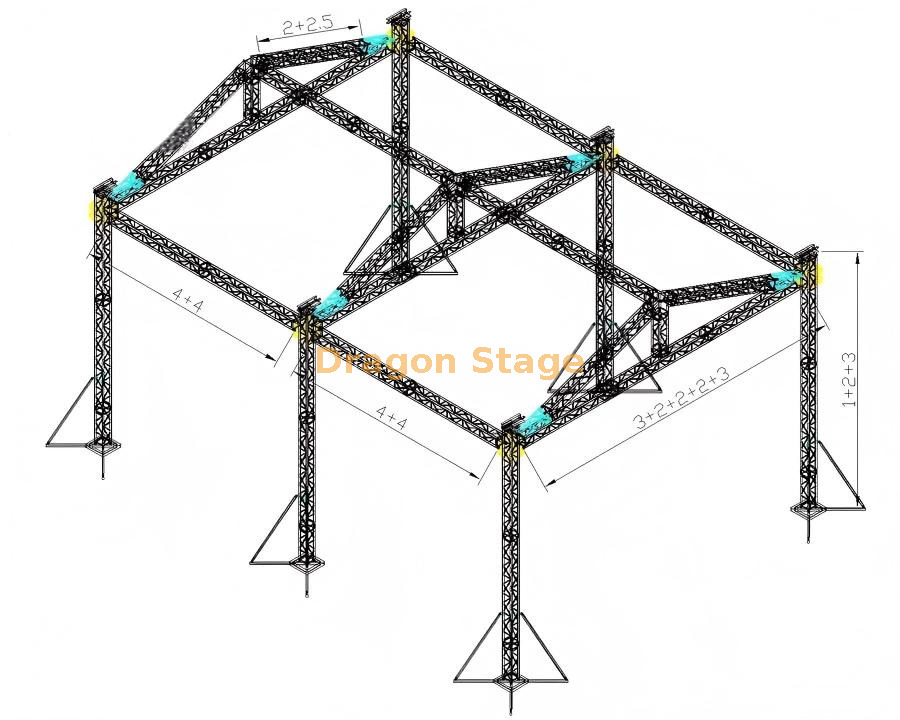

12x16x6m Professional Aluminum Triangular Roof Event Truss System

packing weight:2500kg

packing volume:24cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
12.00 m Beam(front)	3 sets	3.00 m	50×3.0	CS389×389	6pcs
		2.00 m	50×3.0	CS389×389	9pcs
		1.00 m	50×3.0	CS389×389	0pcs
16.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS389×389	8pcs
		2.00 m	50×3.0	CS389×389	4pcs
		1.00 m	50×3.0	CS389×389	0pcs
5.00 m Pillar	6 sets	3.00 m	50×3.0	CS289×289	6pcs
		2.00 m	50×3.0	CS289×289	6pcs
		1.00 m	50×3.0	CS289×289	0pcs
beam cube	6 faces	CS389×389			0pcs
Frame Tower	Spigot Sleeve Block S				6pcs
	Steel Base S				6pcs
	Top Section S				6pcs
	Manual hoist,BA05 2Tons				6pcs
	Spigot Hinge Section,Height 1m				6pcs
	Fibre sling,BA04,2 tons 3m				6pcs
	Long outrigger				24pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	3 sets	1.20 m	50×3.0	CS289×289	3pcs
16.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	2pcs
		1.00 m	50×3.0	CS289×289	0pcs
6.20 m Oblique Beam	6 sets	3.00 m	50×3.0	CS289×289	6pcs
		2.00 m	50×3.0	CS289×289	6pcs
		1.20 m	50×3.0	CS289×289	6pcs
6.20 m Ladder truss	12 sets	3.00 m	50×3.0	CL30,289*50	12pcs
		2.00 m	50×3.0	CL30,289*50	12pcs
		1.20 m	50×3.0	CL30,289*50	12pcs
Roof Components	4	roof conner 4 ways, use for roof beam truss		CS289×289	2pcs
	5	roof conner 5 ways, use for roof beam truss		CS289×289	1pcs
	1	Connect plate with clamp		CS289×289	3pcs
		Single clamp			24pcs
		Double clamp			12pcs
		roof canopy material:pvc, Blue Colour or customized.		297.76	1pcs
