Why does an engineered 6-way box corner cube maximize structural safety and layout flexibility over standard welded fixed corners?

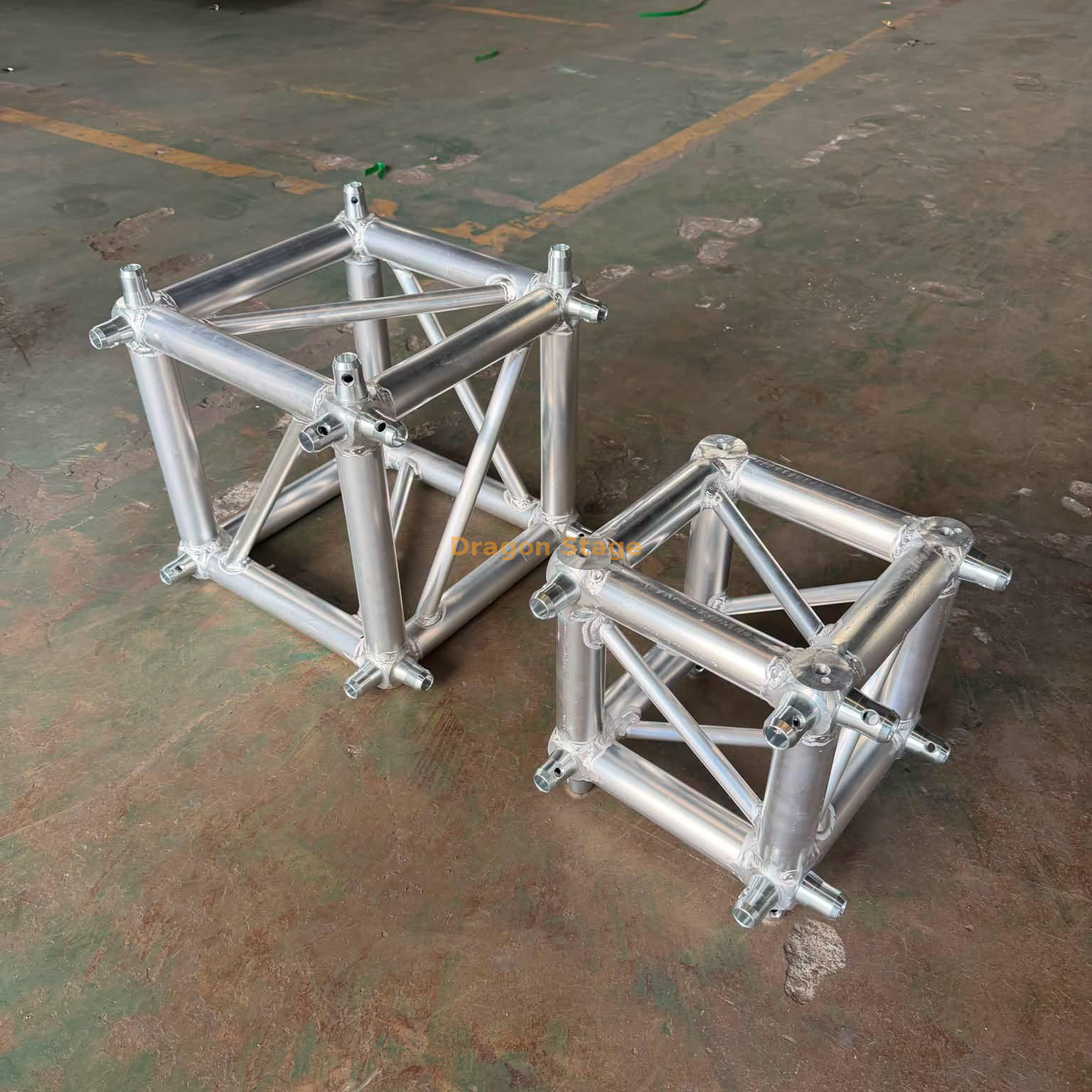

An engineered 6-way box corner cube maximizes both safety and flexibility because it replaces weak fixed-angle welded corners with a single, ultra-rigid multi-directional junction block that can expand simultaneously in all three dimensions ($X, Y, Z$ axes). Fabricated from premium, structural-grade6061-T6 vs 6082-T6 Aluminumprofiles with precision-milled attachment points, it transfers heavy multi-directional twisting and bending forces seamlessly down to the supporting vertical column network. By utilizing bolt-on conical receivers or couplers on any of its six face plates, a single cube corner allows crews to instantly build 2-way L-corners, 3-way T-junctions, 4-way cross-intersections, or full multi-tier roof grid nodes from a single piece of inventory.
This factory-direct 6-way universal box corner cube represents the ultimate industrial standard for modular rigging flexibility across international entertainment and commercial presentation circuits. When engineering a massive indoor trade show display booth or an intricate open-air festival ground-support structure, integrating this unyielding junction block directly over our modular, heavy-dutyAluminum Stageperformance platforms builds an incredibly secure, plumb, and square venue environment. Every face plate on the cube is machined with microscopic tolerances to align perfectly flush with your incoming F34 or QX30s linear truss sections, effectively eliminating the mechanical sag and structural misalignment caused by lesser knock-off components.
To map out your overall venue footprint with precise right-angle weight distribution vectors, plan complex grid offsets for heavy moving lights, and ensure hassle-free engineering validation from strict local safety code inspectors, production directors can draft their networks using our comprehensiveEvent Stage Design Guide. Sourcing this premium universal dado series allows regional rental houses to radically optimize their warehouse stock, eliminating the need to buy and carry dozens of individual, single-purpose welded fixed corner angles.
FAQ
Q1: What are the primary weight-loading rules regarding multi-directional stress when bridging spans onto a single box corner cube?A: A universal box corner cube is engineered to act as a central stress distributor. When multiple linear spans converge on a single cube, you must calculate the combined downward shear forces and twisting torque to ensure the node payload does not exceed structural limits. For comprehensive multi-point loading tables and deflection parameters, please review our specializedStage Platform Safety Guide.
Q2: How do you configure the cube when transitioning a horizontal grid line into a vertical ground-support tower leg?A: To use this box corner as a main overhead corner block link, high-precision conical half-coupler receivers must be securely bolted to the bottom face (to slip over the vertical tower chord ends) and to the chosen side faces (to project the cross-beams). Detailed instructions on column leveling and managing vertical down-forces can be found in our technical guide onHow to Build a Stage Platform Structure.
Q3: Does the cube include all necessary conical spigots, pins, and bolts for 6-way configuration right out of the box?A: The base dado corner cube is supplied as a raw multi-port block with threaded mounting matrices, giving rental houses full freedom to configure it as needed. Conical spigot adapters, tapered pins, and high-tensile connection bolts are available separately so you can customize each face based on your exact layout requirements (such as female spigot, male spigot, or flat plate links).
