packing weight: 2300kg
packing volume: 21cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 12.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 8pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 12.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 8pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 7.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 8pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 4pcs |
| beam cube | Spigot cube 389x389 | 0pcs |
| Frame Tower | Spigot Sleeve Block S | 4pcs |
| Steel Base S | 4pcs |
| Top Section S | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 2 sets | 1.20 m | 50×3.0 | CS289×289 | 2pcs |
| 12.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 6.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 4pcs |
| 1.20 m | 50×3.0 | CS289×289 | 4pcs |
| 6.20 m Ladder truss | 10 sets | 3.00 m | 50×3.0 | CL30,289*50 | 10pcs |
| 2.00 m | 50×3.0 | CL30,289*50 | 10pcs |
| 1.20 m | 50×3.0 | CL30,289*50 | 10pcs |
| Roof Components |
| roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs |
| roof conner 5 ways, use for roof beam truss | CS289×289 | 0pcs |
| Connect plate with clamp | 2pcs |
| Single clamp | 20pcs |
| Double clamp | 8pcs |
| roof canopy material:pvc, Blue Colour or customized. | 238.56 | 1pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 3.00 m Wings Beam | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 2pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 7.00 m Wings Pillar | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 2pcs |
| Wings Tower | Spigot Sleeve Block S | 2pcs |
| Steel Base S | 2pcs |
| Top Section S | 2pcs |
| Manual hoist,BA05 2Tons | 2pcs |
| Spigot Hinge Section,Height 1m | 2pcs |
| Fibre sling,BA04,2 tons 3m | 2pcs |
| Long outrigger | 8pcs |
| Truss Accessory |
| Conical coupler & Safrty clip & pin | whole
set |
packing weight: 2500kg
packing volume: 19cbm
| Item | Specification | Quantity |
| Aluminium assembly stage | topping: 4x8ft
(1.22x2.44m) | wooden | 45 pcs |
| 1.22m stage brace | 54 pcs |
| 2.44m stage brace | 50 pcs |
| stand with extendable tube | 60 pcs |
| Stage adjustable base | 60 pcs |
| Stage Stair | wooden topping | total | 8 | steps | adjustable to the stage height | 2 pcs |

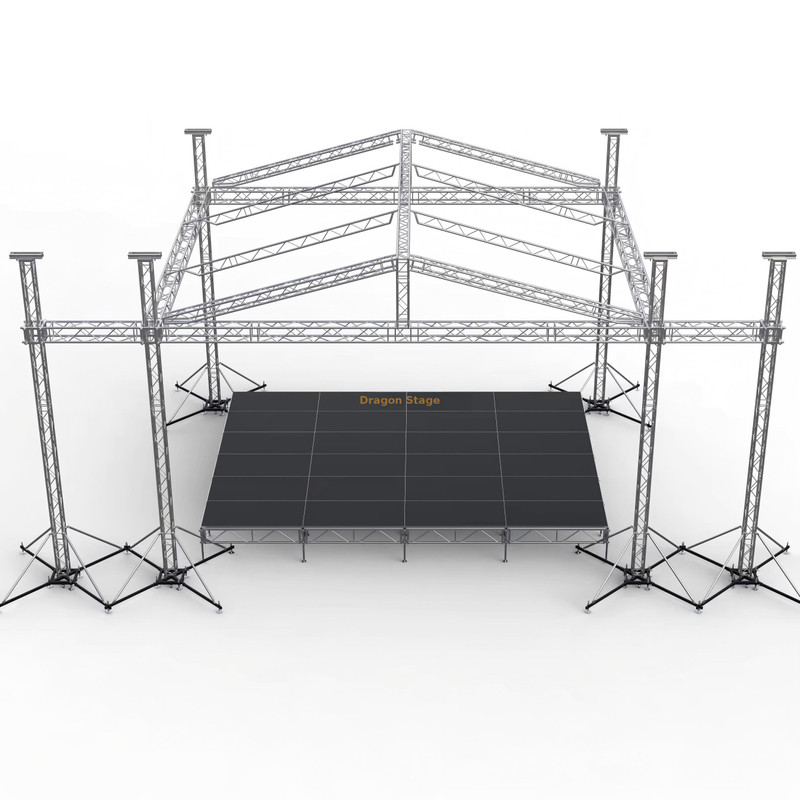

Square Custom Aluminum Concert Aluminum Sound Truss 12x12x8m: Large-Scale Event System
1. Introduction: The Grand Event Production System
The DragonStage Square Custom Aluminum Concert Truss System is a heavy-duty, large-format outdoor structure specifically designed for major live music concerts, large festivals, and corporate events requiring extensive support capacity.
With principal dimensions of 12m wide x 12m deep and a striking 8m clear height, this system provides a massive, fully-covered performance area. It features a sophisticated roof design and integrated 3m sound wings on two sides, allowing for simultaneous hanging of line array speaker systems alongside the stage lighting rig.
2. Key Features & Specifications
This system utilizes two different truss sizes to manage the span and auxiliary loads: the heavier-duty CS389x389 for the main roof beams and sound wings, and the lighter-duty CS289x289 for the pillars and roof details.
Key Product Specifications
| Feature | Specification Details |
| Overall Truss Dimensions (L x W x H) | 12m x 12m x 8m (approximate) |
| Integrated Sound Wings | 3m length on 2 sides, built into the structure. |
| Truss Series (Main Beams) | CS389x389 (Square Spigot Truss) |
| Truss Series (Pillars/Details) | CS289x289 (Square Spigot Truss) |
| Main Tube Size | 50mm x 3.0mm (used throughout the system) |
| Connection Type | Spigot (includes Conical Coupler, Safety Clip, and Pin) |
| Stage Platform Size | Comprised of 45 pieces of 4x8ft (1.22m x 2.44m) wooden topping |
| Stage Deck Dimensions | 12.2m x 10.98m (approximate based on quantity of deck) |
| Stage Height | Adjustable (Stand with extendable tube & adjustable base) |
| Roof Canopy Area | 238.56 sqm PVC (Blue Colour or customized) |
| Total Truss Packing Weight | 2300kg |
| Total Stage Packing Weight | 2500kg |
| Total Packing Volume | 21 CBM (Truss) + 19 CBM (Stage) |
Truss & Stage Components
| Component | Truss Series (Size) | Main Tube (mm) | Key Quantity |
| 12.00m Beam (Front/Side) | CS389x389 | 50x3.0 | 8 pieces (3.00m length) per set |
| 7.00m Main Pillar | CS289x289 | 50x3.0 | 8 pieces total |
| 3.00m Wings Beam | CS389x389 | 50x3.0 | 2 sets (2 pieces 3.00m length) |
| 7.00m Wings Pillar | CS289x289 | 50x3.0 | 2 sets (4 pieces 3.00m length + 2 pieces 1.00m length) |
| Lifting Gear | Manual Hoist (BA05, 2 Tons) | - | 6 pieces (4 main, 2 wing) |
| Stage Topping | Wooden Topping | 4x8ft (1.22x2.44m) | 45 pieces |
| Stage Accessories | Stage Stairs | Wooden Topping | 2 sets (adjustable to stage height) |
3. System Highlights
High-Load Capacity: The use of the robust CS389x389 truss for the main load-bearing spans ensures sufficient capacity for heavy lighting rigs, LED screens, and central stage elements.
Integrated Sound Support: The inclusion of 3m wings on two sides allows for professional rigging of line array systems without needing separate free-standing towers, improving sight lines and aesthetics.
Complete System: The product includes the complete truss roof structure, all necessary rigging accessories (sleeve blocks, steel bases, top sections, manual hoists, slings, and clamps), and the full modular stage platform with stairs, offering a turnkey solution.
Portability: Despite its size, the system is engineered for event logistics, with manageable packing weights and volumes for efficient transport.
