packing weight: 1650kg
packing volume: 15cbm
| Item |
| Specification(squre truss) | Qty |

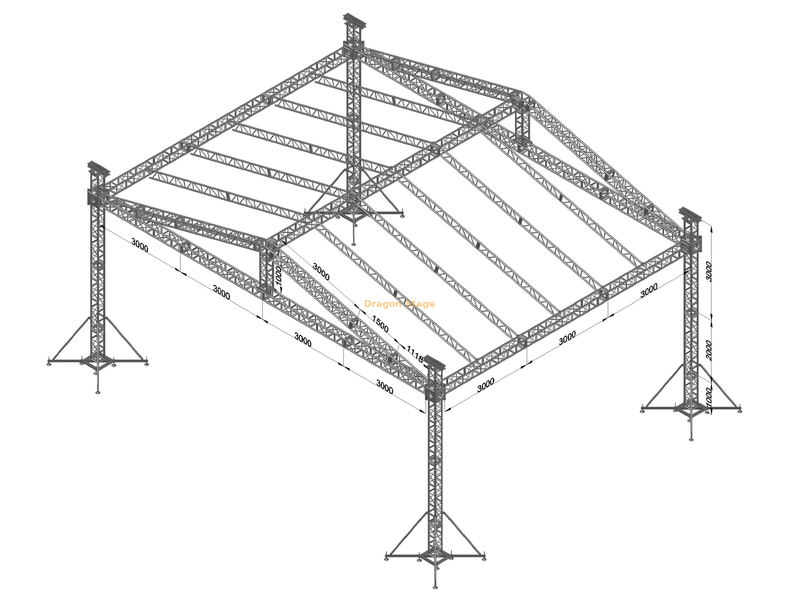

| length | main tube(mm) | size(mm) |
| 12.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 8pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 9.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 6pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 5.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 4pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| Frame Tower | Spigot Sleeve Block S | 4pcs |
| Steel Base S | 4pcs |
| Top Section S | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 2 sets | 1.20 m | 50×3.0 | CS289×289 | 2pcs |
| 9.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 3pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 6.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 4pcs |
| 1.20 m | 50×3.0 | CS289×289 | 4pcs |
| 6.20 m Ladder truss | 8 sets | 3.00 m | 50×3.0 | CL30,289*50 | 8pcs |
| 2.00 m | 50×3.0 | CL30,289*50 | 8pcs |
| 1.20 m | 50×3.0 | CL30,289*50 | 8pcs |
| Roof Components |
| roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs |
| roof conner 5 ways, use for roof beam truss | CS289×289 | 0pcs |
| Connect plate with clamp | 2pcs |
| Single clamp | 16pcs |
| Double clamp | 8pcs |
| roof canopy material:pvc, Blue Colour or customized. | 194.16 | 1pcs |

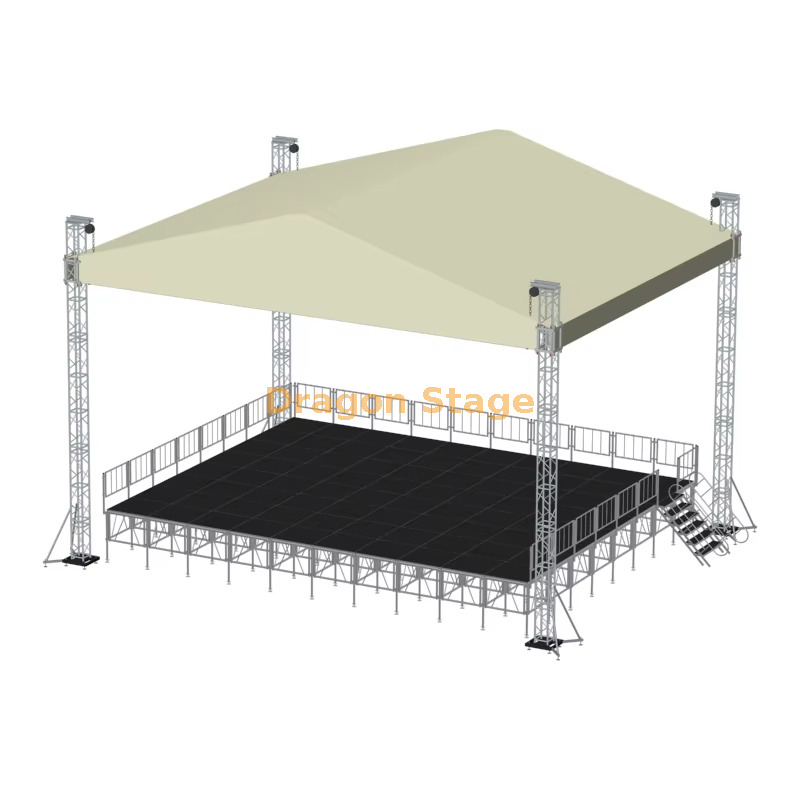

Professional 12x9x6m Outdoor Concert Silver Lighting Event Truss
1. Introduction
Modern event production requires a structural foundation that is both aesthetically striking and technically uncompromising. The DragonStage 12x9x6m Outdoor Concert Silver Lighting Event Truss is a versatile, mid-to-large scale solution engineered for festivals, corporate rallies, and touring performances. With a 12-meter front span and a 9-meter depth, this system provides over 100 square meters of covered performance space. The 6-meter vertical clearance is optimized for high-impact lighting designs, providing the necessary height for long-throw fixtures and clear sightlines for the audience.
2. Industry Challenges & Professional Solutions
For production managers, the primary challenge of a 12-meter span is ensuring structural rigidity without adding excessive weight that complicates logistics. Additionally, managing wind loads on a 6-meter structure in outdoor environments is critical for safety and regulatory approval.
DragonStage addresses these challenges by utilizing premium 6061-T6 aluminum alloy in a reinforced square truss profile.1 This material provides an exceptional strength-to-weight ratio, allowing for heavy rigging while keeping the system portable.2 To ensure stability, our 12x9m system features a robust ground support tower design with heavy-duty steel bases and adjustable outriggers. This configuration lowers the center of gravity and allows for precise leveling on uneven festival grounds. For safety, the entire assembly is designed to be rigged at ground level and elevated using a synchronized sleeve block system, minimizing high-altitude labor (Source:https://www.dragontruss.com/Aluminum-Truss-pl3962133.html).
+1
3. Key Features & Operational Benefits
The 12x9x6m silver lighting truss is an essential asset for production companies looking for a reliable, multi-functional rigging solution.
Precision Silver Aluminum Architecture
The natural silver finish of the 6061-T6 aluminum provides a professional, clean aesthetic that complements any stage design. Beyond looks, the truss utilizes high-precision spigot or bolt connections that ensure a tight fit and eliminate structural play. This is vital for maintaining the integrity of the 12m span under the dynamic loads of moving lighting fixtures and vibrating audio systems (Source:https://www.dragontruss.com/Lighting-Truss-pl3552133.html).
All-Weather PVC Protection
To protect expensive technical equipment, this system includes a custom-fitted, flame-retardant PVC canopy. The roof is engineered with sufficient tensioning points to prevent water pooling, even during heavy rainfall. This weatherproof stage roof ensures your event can proceed regardless of the elements. Furthermore, our manufacturing processes are backed by TUV certification, providing you with the structural documentation necessary for securing event permits and meeting insurance requirements globally (Source:https://www.dragontruss.com/TUV-Report-dc249965.html).
4. Practical FAQ for Stage Professionals
| Question | Answer |
| Q: What is the maximum load for the 12m span? | The load capacity depends on the specific truss series (e.g., 290mm or 400mm). Detailed load tables are provided with every quote. |
| Q: Is the silver finish resistant to scratching? | The natural aluminum finish is highly durable; however, we recommend standard truss transport bags or flight cases to maintain the aesthetic. |
| Q: Can this be set up on grass or dirt? | Yes. The system includes steel bases with long outriggers and leveling jacks designed specifically for outdoor terrain. |
| Q: Does the package include the lifting hoists? | Yes, the standard system includes manual chain hoists, though it is fully compatible with electric motor upgrades. |
5. Strong Call to Action (CTA)
Take your outdoor production to the next level with a rigging system built for durability and professional impact. Trust DragonStage for the stability your production demands.
Contact the DragonStage engineering team today for a technical quote or download our 12x9x6m structural load charts to begin your project.
