The custom aluminum square tube stage panel frame is a lightweight modular structural component designed for professional stage systems, temporary performance platforms and customized event structures.
The frame adopts an aluminum square tube structure with a 50mm height profile, providing a stable supporting base for stage panels while maintaining easy transportation and installation characteristics.
Different frame dimensions can be customized according to stage layout requirements, panel sizes and project conditions. The modular design allows flexible combination with stage legs, adjustable feet or caster wheel systems for different applications.
Compared with traditional steel stage frames, aluminum construction provides advantages including lower weight, corrosion resistance and improved handling efficiency, making it suitable for both indoor and outdoor stage applications.
Main Features
1. Modular Stage Frame Design
The aluminum frame structure provides:
Flexible customization according to stage dimensions;
Easy combination of different stage layouts;
Stable support for stage panels;
Convenient transportation and storage;
Suitable for temporary and permanent event structures.
2. Lightweight Aluminum Construction
The aluminum alloy structure provides:
High strength-to-weight ratio;
Reduced installation workload;
Corrosion resistance for outdoor environments;
Easy handling during stage setup;
Long service life with proper maintenance.
3. Flexible Connection Options
The stage frame can be combined with:
Screw-connected stage legs;
Adjustable stage supports;
Caster wheel systems;
Different stage panel configurations.
This allows the same frame structure to adapt to various event requirements.
Structural Components
Component
Description
Main Frame Tube
Aluminum square tube forming the primary stage panel support structure
Cross Support Beam
Internal reinforcement member improving frame rigidity
Corner Connection Plate
Reinforced corner structure for frame connection
Fixing Holes
Pre-designed holes for connection with stage legs or accessories
1. What is the aluminum square tube stage frame used for?
The aluminum square tube stage frame is mainly used as a supporting structure for stage panels in indoor and outdoor performance platforms.
2. What material is used for the stage frame?
The frame is manufactured from aluminum alloy, providing lightweight construction, corrosion resistance and easy transportation.
3. What dimensions are available for this stage frame?

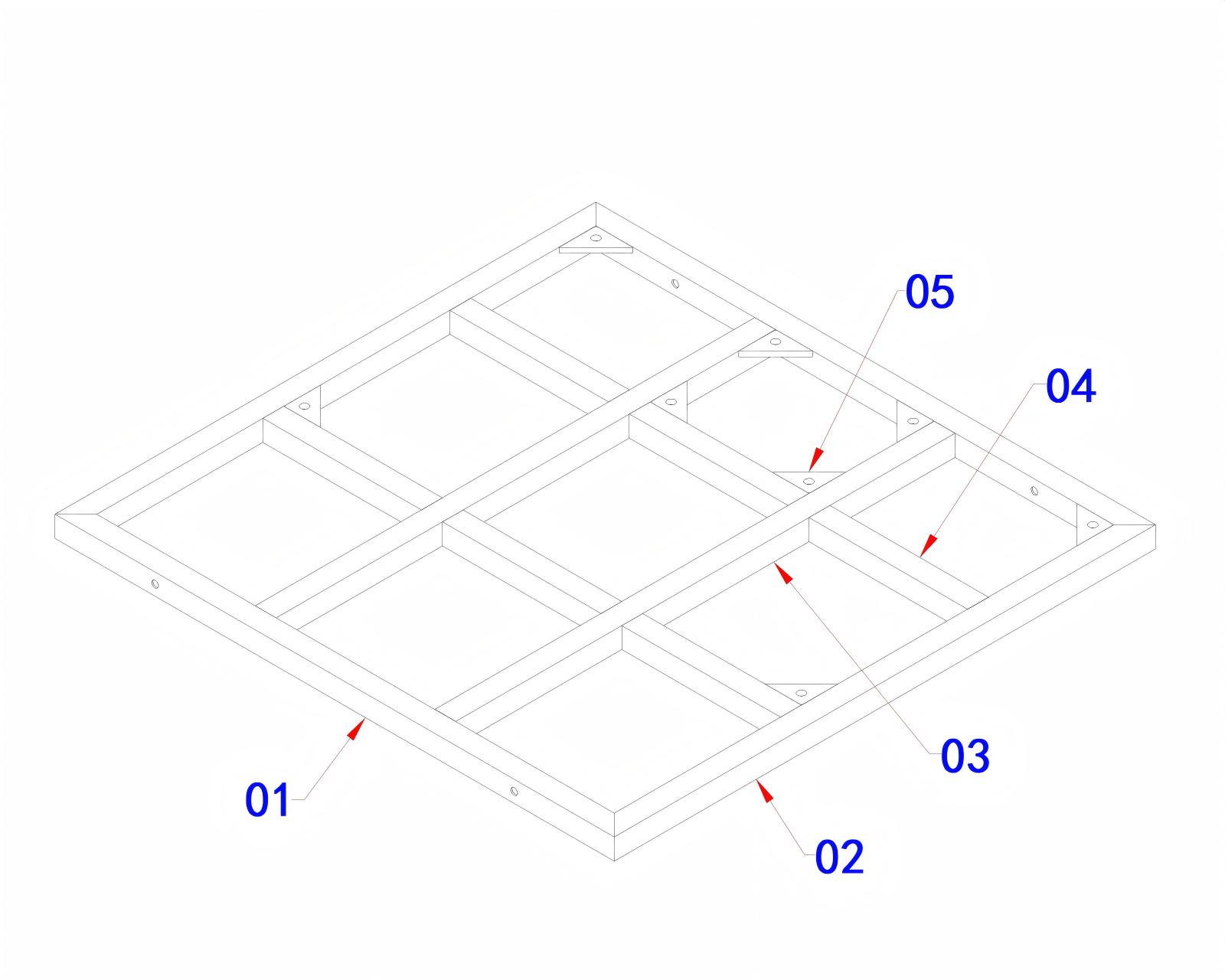

The dimensions can be customized according to project requirements. Current drawings include:

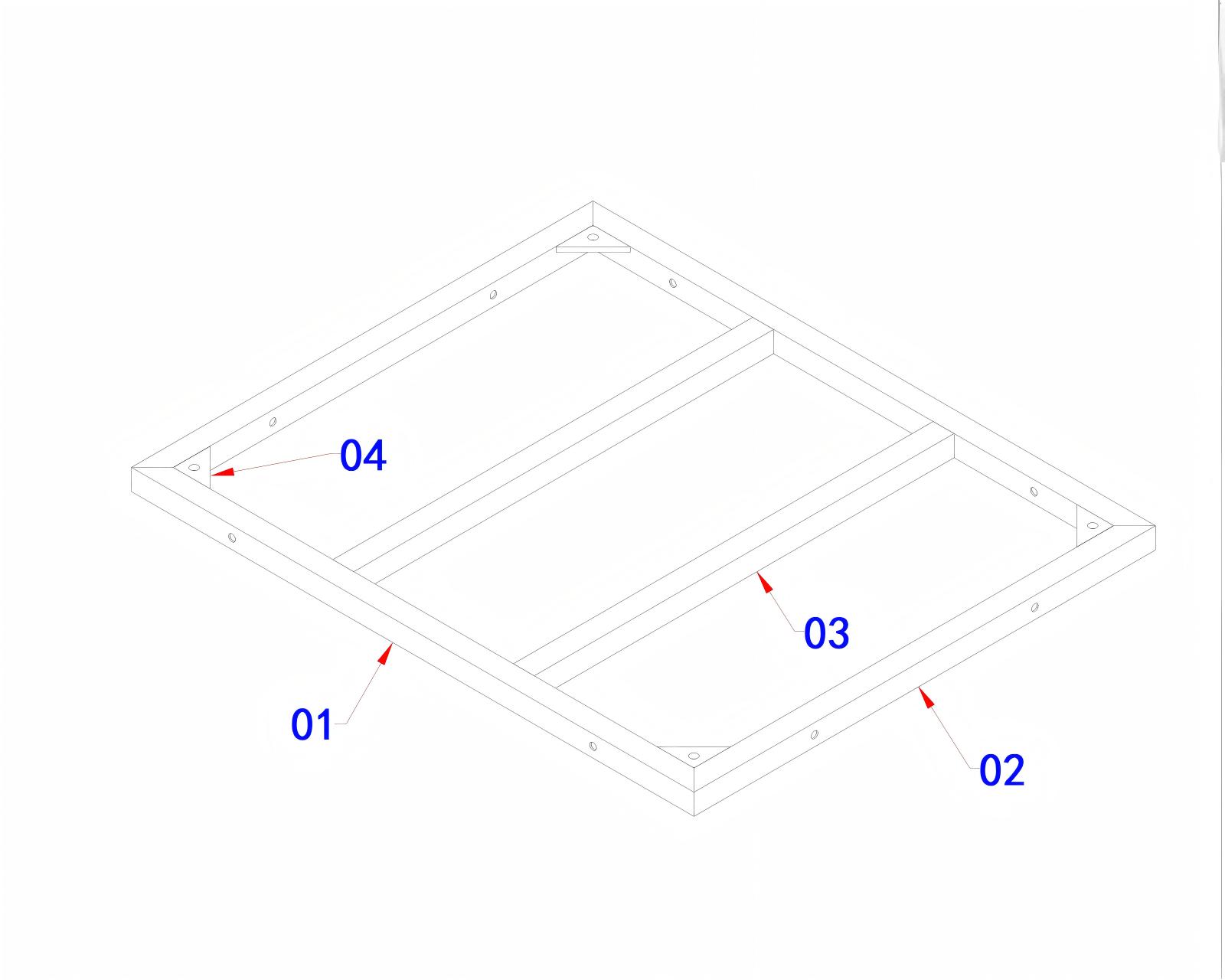

1340×1100×50mm;

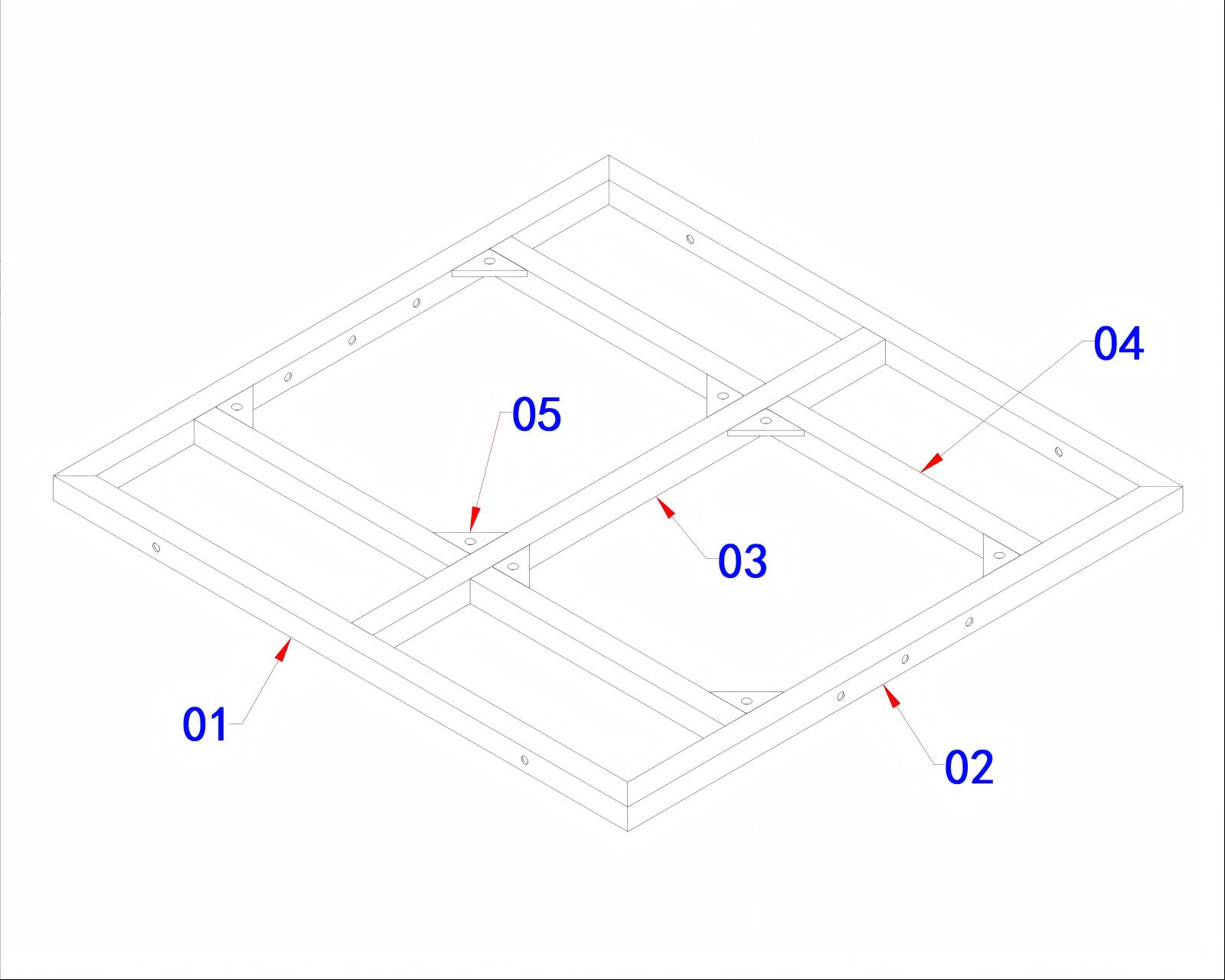

1340×1296×50mm;

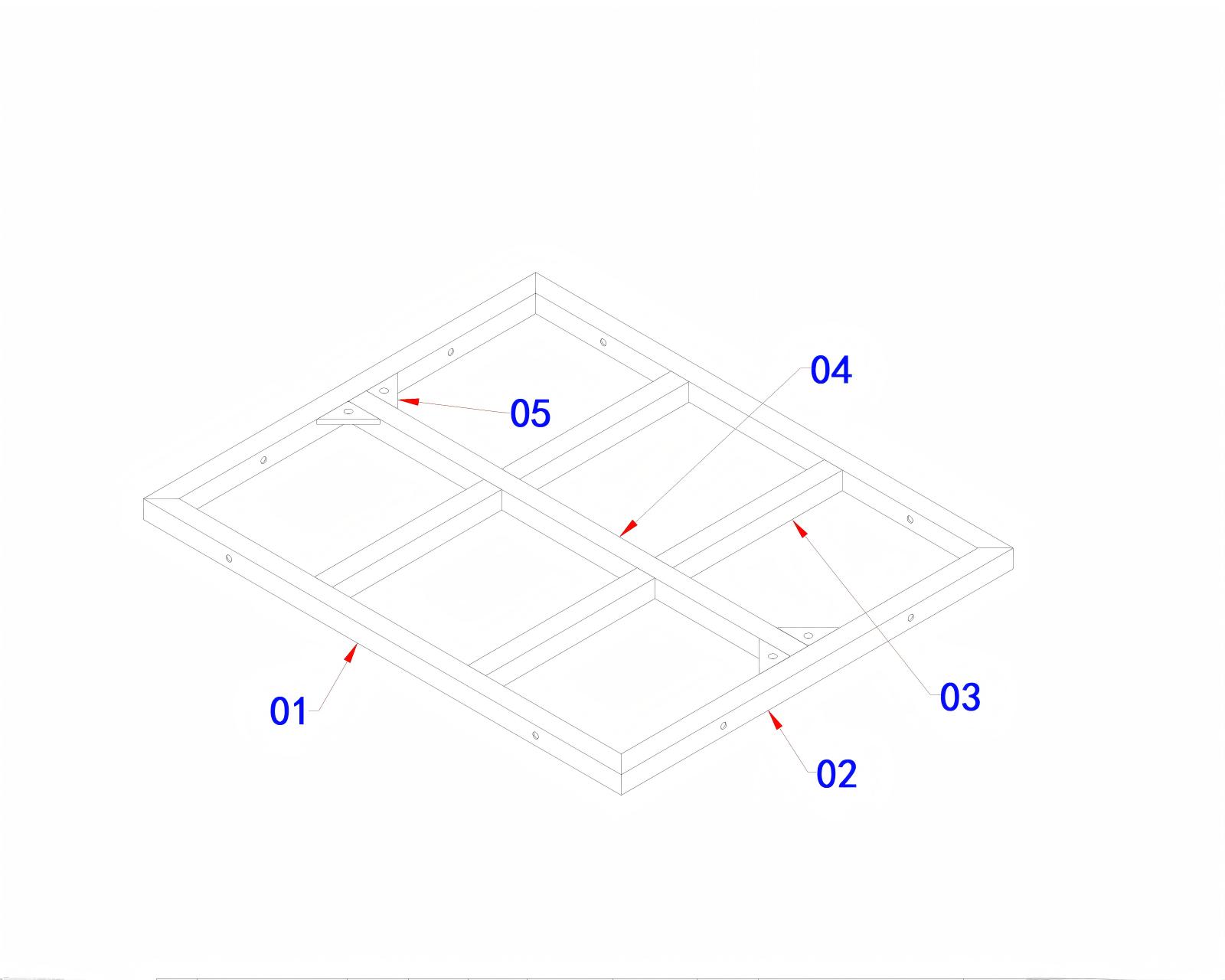

1340×525×50mm;

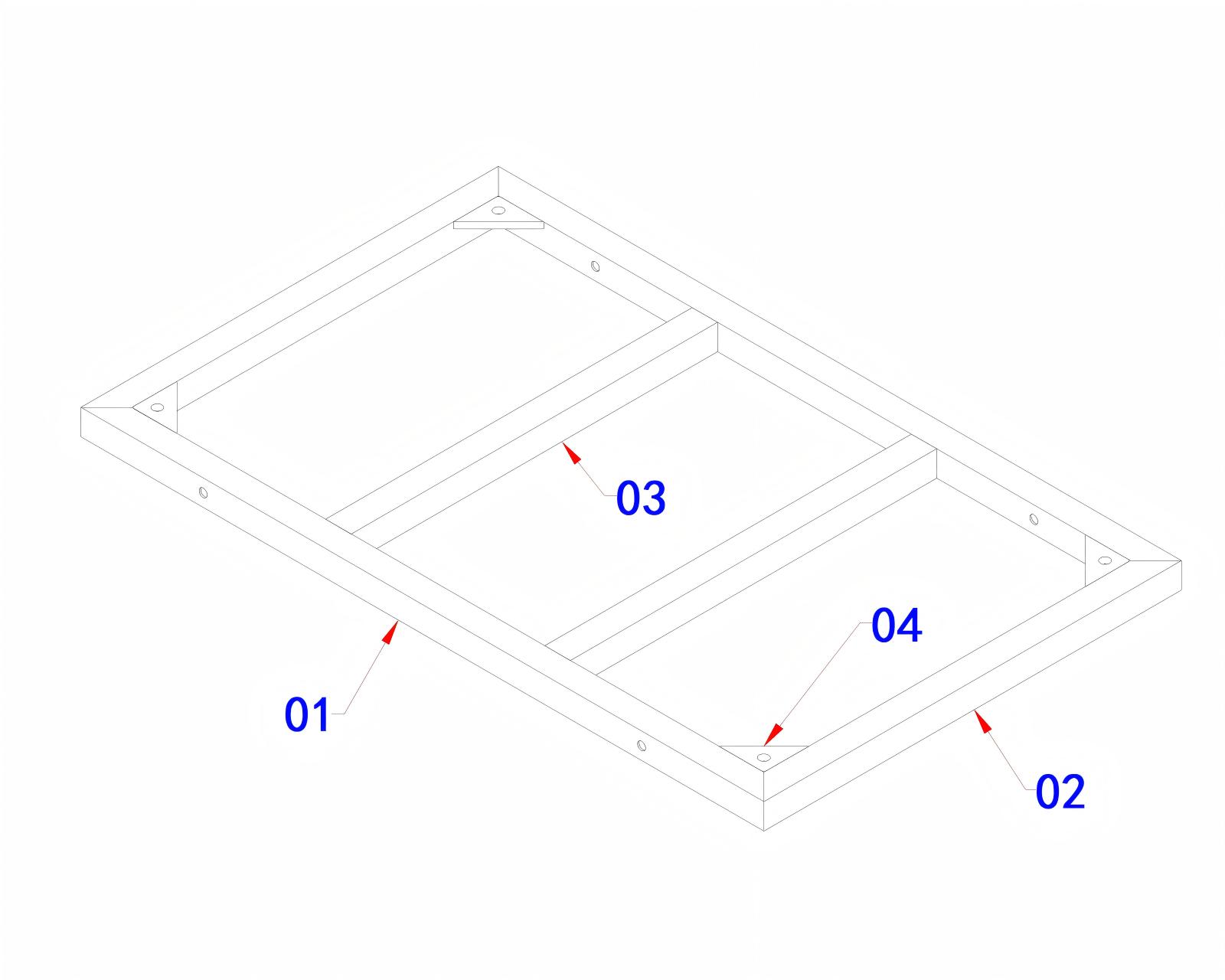

1340×819.5×50mm.
4. How is the stage frame connected?
The frame can be connected with screw-fixed stage legs or caster wheel systems depending on application requirements.
5. Can this frame be used for outdoor stages?
Yes. The aluminum construction makes it suitable for outdoor stage applications. The final design should consider loading conditions and environmental requirements.
Design Notice
The drawings represent standard custom aluminum square tube stage panel frame configurations.
Actual structural performance depends on the complete stage system design, connection method, loading conditions, installation environment and engineering requirements.
For large outdoor stage structures, professional structural evaluation is recommended according to project conditions.
Section:Square600x760mm Inclined tube: 25x2.0mm Main tube:50x4.0mm Braces:50x2.0mm
This Heavy-Duty Aluminum Box Truss (600x700mm) is engineered for superior structural integrity and massive load capacities. Ideal for professional concert and event stage productions, its robust design supports large-scale lighting truss rigs and LED walls, ensuring a safe and stable environment for any world-class performance.
Section:Square670x1010mm Inelined tube: 30x2.0mm Main tube:50x5.0mm Braces:50x3.0mm
This Heavy-Duty Stage Light Truss (680x1010mm) is engineered for massive spans and extreme loading requirements. Designed for professional concert and event stage productions, its robust rectangular profile ensures maximum stability. It is the ultimate solution for supporting large-scale lighting truss rigs and heavy LED walls safely.
the spigot truss sectional sizes are 830mm wide and 630mm deep. the main tube is 50x4mm or 60x5mm.
This ultra-heavy-duty Aluminum Spigot Truss features reinforced 50x4mm and 60x5mm main tubes, engineered for massive spans and maximum load requirements. Ideal for professional concert and event stage builds, its high-precision spigot connection ensures rapid assembly and unrivaled structural stability for world-class productions.
Section:Square400x400mm Inclined tube: 25x2.0mm Main tube:50x3.0mm Braces:50x2.0mm Material: Aluminum 6061-T6
This versatile 400x400mm aluminum roof screw lighting truss is the industry standard for medium-to-heavy stage rigging. Engineered for exceptional durability, this high-performance aluminum truss system supports heavy lighting and audio equipment with ease. It is the perfect foundation for building safe, professional modular stage systems for any event.
The Square Box Truss F34 Circle Corner 2 Ways 90 Degree is characterized by its square shape and the incorporation of circular corners at two ends, forming a 90-degree angle. This design not only adds an aesthetic appeal to the structure but also enhances its structural integrity. The circular corners help distribute the load more evenly, reducing stress concentrations and improving the overall stability of the truss.
custom Aluminum Top Sections with Steel Wheels for Beam Truss 520x760mm are a popular choice for motor hoisting system due to their durability, strength, and versatility.
This Aluminum Concert Professional Light Truss 18x12x9m seems is a high-quality and durable solution for concert and event lighting setups. The dimensions are suitable for large-scale productions, and the material is known for its strength and lightweight properties. This truss system appears is a reliable option for professional use in the entertainment industry.
A truss circle with a diameter of 2 meters and sectional sizes of 290mm x 290mm, equipped with spigot connectors, is a structural element that offers a high level of strength and stability for various construction projects.
high-grade and lightweight aluminum which is easy for transportation and setup Compatible with all sticks to create an astonishing and custom presentation
Heavy-duty aluminum swivel clamp for outrigger and tower support structures. Made from 6061 aluminum alloy, compatible with 48-52mm tubes, lightweight and durable for event truss, speaker tower and temporary structure applications.
F34 Square Frame Circle Truss Package (8 x 45° Segments) - 6 Meters
it is composed of 8 curved box truss segments with conical connectors to make a 6m (19.68 ft) circle trussing configuration. Constructed of high-grade aluminium
The Dragonstage Aluminum Spigot 520x520mm Square Box 6 Ways Corner Truss Cube Connector is a device for constructing large, sturdy structures that are sturdy and lightweight. This device is made of aluminum, which is durable and lightweight. The product has a size of 520x520mm and can be used for building structures in 6 different ways. It also comes with two pieces of aluminum screws for assembling the structure. The device is able to withstand high pressure, so it is perfect for heavy objects.
This box can be used to create a stable structure for your display or party. You can use this box to create a corner truss cube. It can be used for exhibitions, retail, and party displays. The box has a 400x400mm or 389x389mm square opening. The box has six ways to connect.
Dragonstage Aluminum Spigot 300x300mm / 289x289mm Square Box 6 Ways Corner Truss Cube Connector is an aluminum spigot with a 300x300mm square box with 6 ways corner truss cube connector. This aluminum spigot is perfect for hanging lights, air conditioning, and other things. The dimensions of the spigot are 300x300mm square box with 6 ways corner truss cube connector.
This is standard Long Outrigger for Aluminum Truss Tower Pillar Column
Usually it needs 4 pieces for a pillar
The Standard Long Outrigger is a critical structural component designed for reinforcing aluminum truss tower pillar columns in temporary or permanent installations. Engineered for stability and versatility, this outrigger ensures optimal load distribution and structural integrity when assembling aluminum truss systems for stages, canopies, lighting rigs, or industrial frameworks.
The 290mm Truss 20'x20' X Shaped Trade Show Booth is a remarkable addition to the world of trade show exhibits. With its sleek design and versatile structure, it offers a unique and captivating display for businesses to showcase their products and services.
Section:Square350x350mm Inclined tube: 25x2.0mm Main tube:50x3.0mm Braces:50x2.0mm Material: Aluminum 6061-T6 This premium 350x350mm Aluminum Lighting Truss is engineered for high-capacity loads and superior stability. Featuring a secure screw connection system, it is the ideal choice for professional lighting truss setups. Its lightweight yet robust aluminum construction ensures rapid installation for any concert and event stage.
section:Square300x300mm Inclined tube: 25x2.0mm Main tube:50x3.0mm Braces:50x2.0mm Material: Aluminum 6061-T6
This high-performance 300x300mm square screw lighting truss is the backbone of professional roof systems. Engineered from aerospace-grade aluminum, it provides a rigid, dependable structure for hanging medium-weight lights and audio gear. Perfectly compatible with modular stage systems, it ensures a safe and sleek foundation for any indoor or outdoor event.
Section:Square500x600mm Inclined tube: 25x2.0mm Main tube:50x3.0mm Braces:50x2.0mm Material; Aluminum 6061-T6 This professional 600x500mm square screw lighting truss is a heavy-duty solution for large-scale stage productions. Engineered from high-grade aluminum, it offers an exceptional strength-to-weight ratio for hanging massive lighting rigs and audio arrays. Built to the highest safety standards, this system ensures maximum reliability for any global touring event.
Section:Square400x500mm Inclined tube: 25x2.0mm Main tube:50x3.0mm Braces:50x2.0mm Material: Aluminum 6061-T6
Our high-strength 500x400mm lighting truss is engineered from premium aluminum alloy for superior load-bearing performance. Ideal for music and audio setups, this durable screw-connection system ensures stability for professional stage environments. Built to meet rigorous safety standards, it provides a reliable foundation for any event production.
Section:Square500x500mm Inclined tube: 25x2.0mm Main tube:50x3.0mm Braces:50x2.0mm Material: Aluminum 6061-T6 This heavy-duty 500x500mm bolt aluminum square truss is the ultimate foundation for outdoor concert stages and large-scale events. Engineered for maximum structural stability, this aluminum truss system provides the high-load capacity needed to support massive lighting rigs and heavy audio arrays safely in any environment.
Section:Square200x200mm inclined tube: 12x2.0mm Main tube: 30x2.0mm Length:0.5/1/2/2.5m Braces: 20x2.0mm
This premium 200x200mm Aluminum Spigot Box Truss offers a compact yet incredibly strong structural solution. Ideal for exhibitions and trade shows, its high-precision conical connection system ensures rapid assembly. It is the perfect professional choice for creating sophisticated lighting truss grids in any concert and event stage environment.
Our professional Aluminum Alloy Spigot Square Truss is the industry standard for high-performance rigging. Designed with a robust modular system logic, this versatile solution is perfect for concert and event stages. It offers exceptional load-bearing stability and a sleek finish for supporting professional lighting and LED screens.
Pipe diameter: 50 mm Wall thickness: 4,0 mm Brace diameter: 30 mm Connectors included
This high-capacity 520mm Square Aluminum Truss is engineered for massive spans and extreme loading requirements. Designed for professional concert and event stage productions, its robust profile provides a secure foundation for complex lighting truss rigs, ensuring maximum stability and safety for high-end visual performances.
Inclined tube: 25x2.0mm Main tube:50x3.0mm Braces:50x2.0mm
This Heavy-Duty Aluminum Spigot Lighting Truss (500x600mm) is engineered for superior stability and massive load capacities. Ideal for large-scale concert and event stage productions, its robust rectangular profile provides a secure foundation for professional lighting truss rigs and high-impact visual displays.
Section:Square400x600mm Inelined tube: 25x2.0mm Main tube:50x3.0mm Braces:50x2.0mm Material: Aluminum 6082- -T6 This professional 400x600mm Aluminum Rectangular Truss is engineered for high-capacity loads and expansive spans. Designed for large-scale concert and event stage productions, its robust profile provides a secure foundation for lighting truss rigs, ensuring maximum stability and safety for high-end visual performances.
This premium 350mm Aluminum Spigot Truss is engineered for superior stability and rapid assembly. Ideal for professional concert and event stage productions, its high-precision conical connection system ensures a seamless fit. It is the perfect choice for creating sophisticated lighting truss grids for any high-end exhibition or trade show.
main tube 50x3mm, brace tube 50x2mm, incline tube 20x2mm
This professional 400mm Aluminum Square Truss is engineered for heavy-duty performance and ultimate reliability. Featuring a secure conical connection system, it serves as a robust backbone for concert and event stage productions. Its high-load capacity and sleek finish make it the ideal choice for demanding lighting truss configurations.
Our 290mm Aluminum Square Spigot Truss with 50x3mm main tubing is a heavy-duty solution for professional rigging. Utilizing a modular system logic, this versatile series is ideal for concert and event stages, offering exceptional load-bearing stability and rapid assembly for any production environment.
Inclined tube: 20x2.0mm Main tube:50x3.0mm Length:0.5/1/2/3/4m Braces:25x2.0mm
Our 290mm Aluminum Spigot Square Truss is the industry standard for high-performance rigging. Designed with a robust modular system logic, this versatile solution is perfect for concert and event stages. It provides exceptional load-bearing capacity and a sleek finish for professional lighting and LED screen support.
Pipe diameter: 50 mm Wall thickness: 3,0 mm Brace diameter: 25 mm Connectors included
This professional 400mm Aluminum Box Spigot Truss is engineered for high-load capacity and rapid assembly. Perfect for any concert and event stage, its 400mm square profile provides superior stability. This versatile system is the industry standard for creating secure and visually stunning lighting truss configurations in arenas and theaters.
This professional 450x450mm aluminum truss bolt system is engineered for versatility in medium-to-large stage productions. Constructed from premium 6082-T6 alloy, this high-strength aluminum truss offers a robust framework for complex lighting and audio arrays. It is designed to exceed rigorous safety standards for both indoor and outdoor applications.
