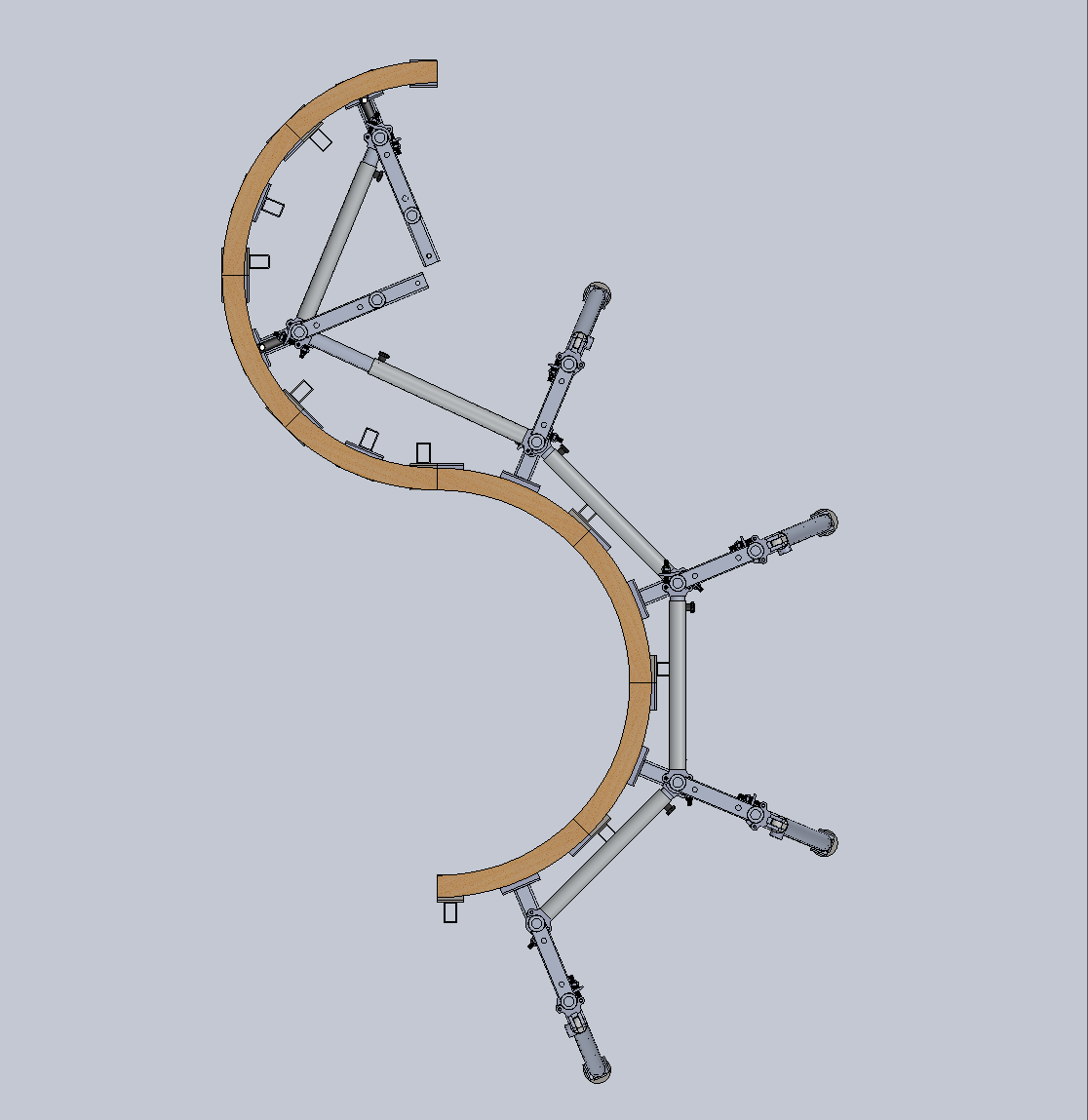

Curved and Flat LED Screen Stacking Support Frame (Dual-Purpose LED Display Support Structure)

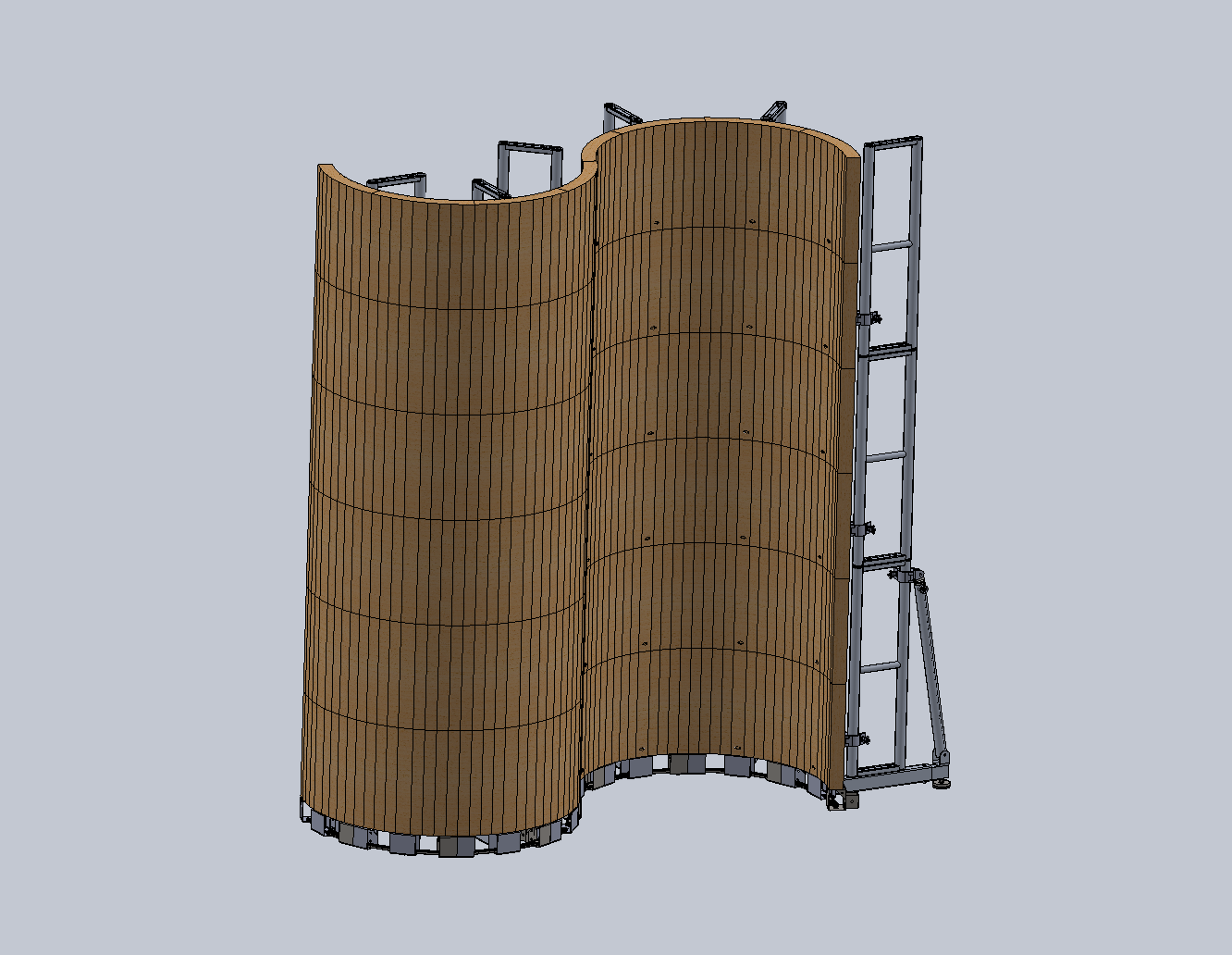

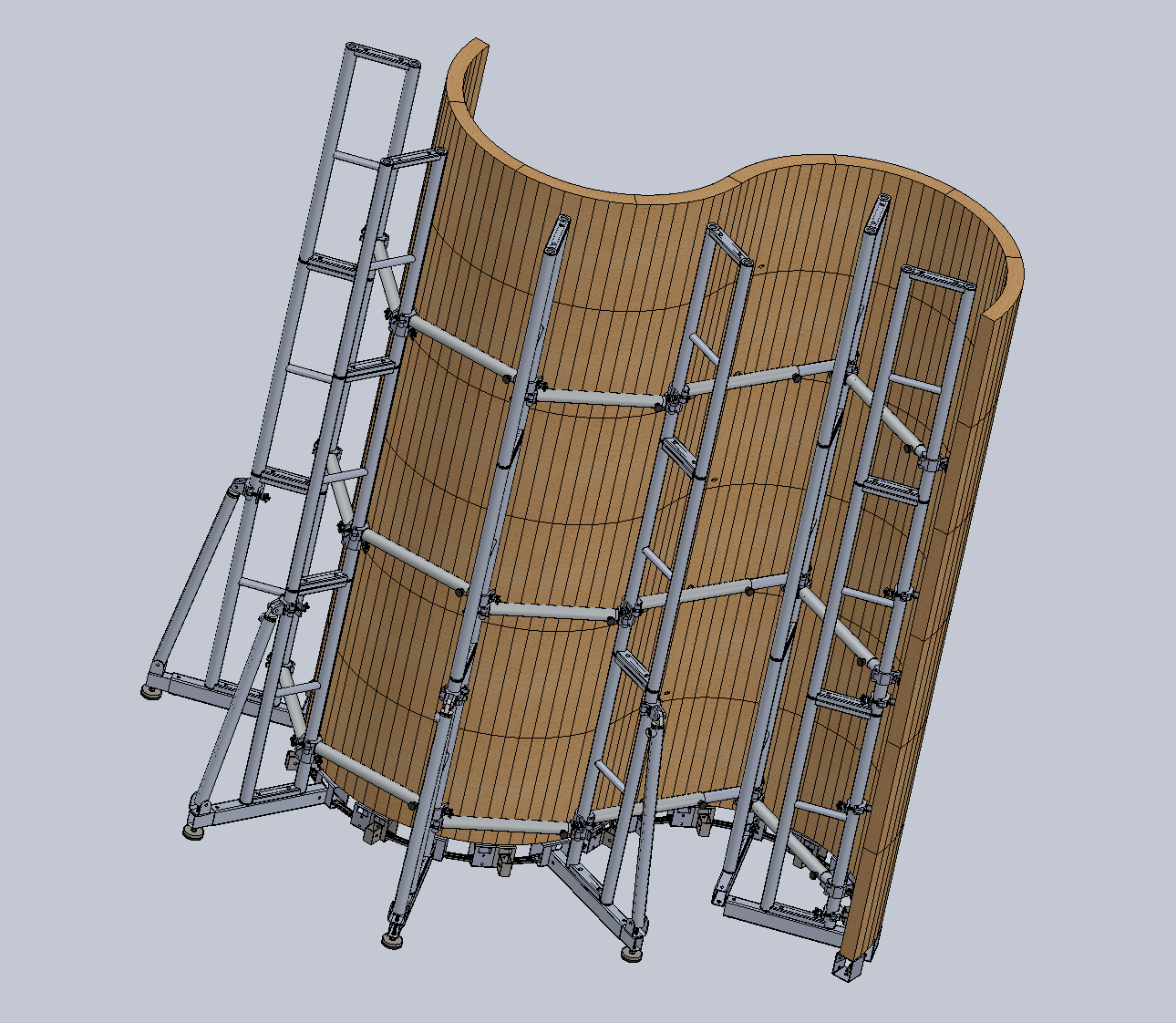

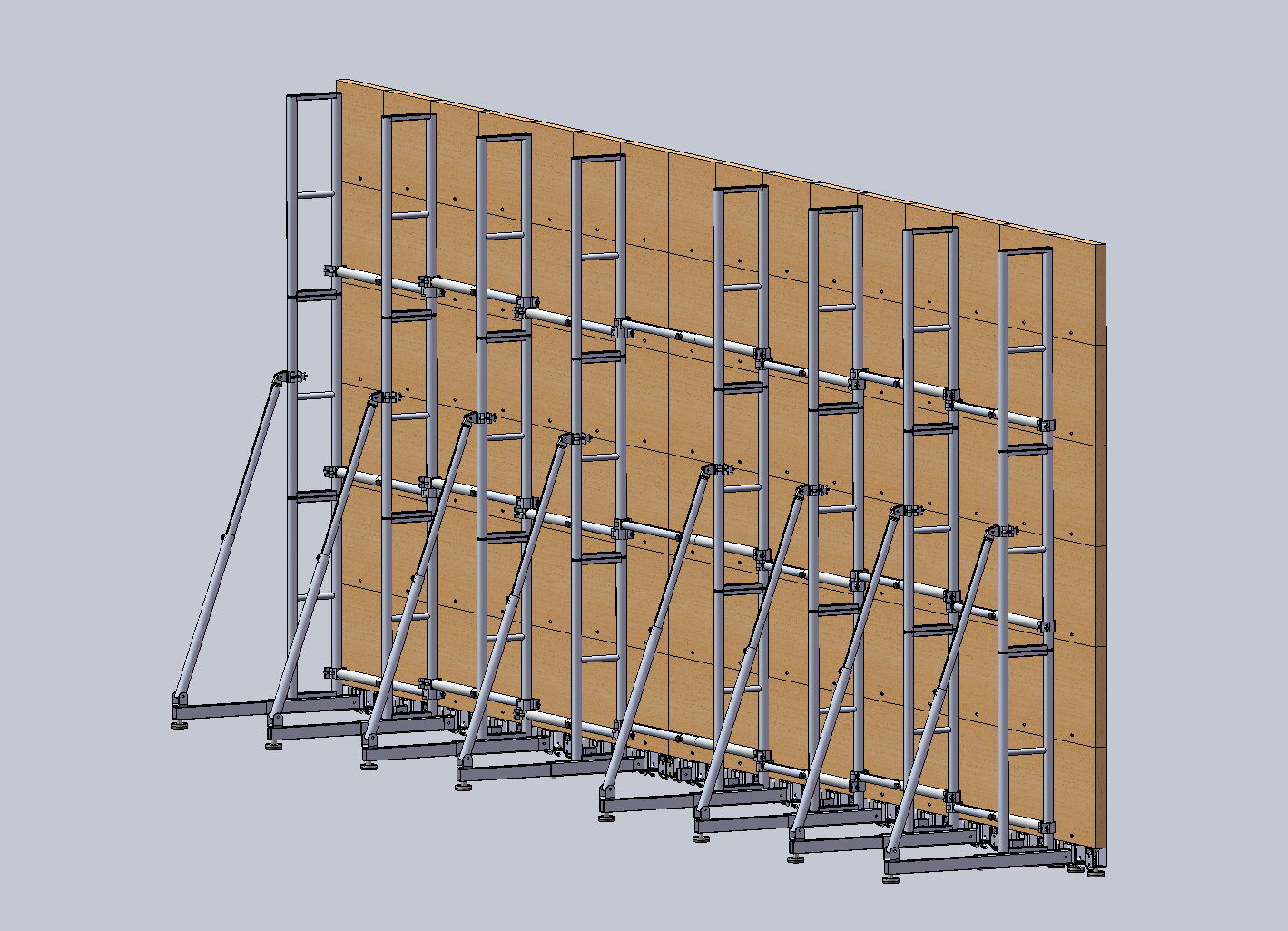

Drawing File Reference
Drawing Index
Drawing Index
Configuration
Dimension
4323
Curved & Flat LED Screen Stacking Frame
Customized Dimension
Drawing Information
Item
Details
Drawing Series
Curved and Flat LED Screen Stacking Support Frame
Structure Type
Frame Structure
Application
Indoor Curved LED Screen and Flat LED Screen Stacking Back Support Structure
Main Tube
50×50mm Aluminum Square Tube
Tube Wall Thickness
3mm
Frame Type
Modular LED Screen Support Frame
Dimension Options
Customized Dimensions According to LED Screen Shape and Installation Requirements
Environment
Indoor LED Screen Installation and Support Structures
Material
Aluminum Alloy Structure + Steel Base Components
Connection System
Screw Connection + Spigot Pin Connection
Drawing Type
2D CAD Drawing
Design Purpose
Structural support system for LED screen installation and special-shaped structure construction
Related Products
LED Screen Installation Load-Bearing and Support Structures
Curved and Flat LED Screen Stacking Support Frame Overview
The curved and flat LED screen stacking support frame is a customized modular structure designed for professional indoor LED display installations requiring both curved screen and flat screen configurations.
The system combines aluminum square tube framework with steel base support components, providing a stable and adjustable solution for LED screen stacking applications. The structure can adapt to different LED screen shapes, including curved displays and conventional flat LED walls.
Using 50×50mm aluminum square tubes with 3mm wall thickness, the support frame provides a lightweight yet rigid structure. The combination of screw connection and spigot pin connection allows efficient assembly, adjustment and repeated use for different event and exhibition projects.
This dual-purpose design enables event companies and LED installation contractors to use one structural system for multiple LED display layouts, improving flexibility and reducing preparation time for different projects.
Main Features
1. Dual-Purpose Curved and Flat LED Support Design
The structure is designed for both curved and flat LED screens:
Supports curved LED display installation;
Supports traditional flat LED screen stacking;
Flexible adaptation to different screen layouts;
Suitable for customized event designs;
Reduces the need for separate support systems.
2. Stable Aluminum Frame Structure
The aluminum square tube framework provides:
High structural rigidity;
Lightweight construction;
Accurate installation positioning;
Reliable LED screen support;
Easy transportation and assembly.
3. Combined Connection System
The structure adopts screw connection and spigot pin connection:
Fast assembly and dismantling;
Adjustable configuration;
Secure connection between components;
Convenient transportation and storage;
Suitable for repeated event applications.
4. Customized Structural Solution
The system can be customized according to:
LED screen size;
Curvature requirements;
Installation height;
Screen weight;
Event layout requirements.
Structural Components
Component
Description
Aluminum Main Frame
50×50mm aluminum square tube framework providing the primary support structure
Curved LED Support Section
Customized curved support components matching curved LED screen requirements
Flat LED Support Section
Straight support structure for conventional LED screen installation
Steel Base Components
Steel support feet providing ground stability and load distribution
Connection Brackets
Customized connectors for combining different structural sections
Spigot Connection Parts
Pin-connected components for quick assembly and adjustment
Screw Fixing Components
Bolted connection parts ensuring structural stability
Available Specifications
Model
Profile Size
Tube Specification
Connection Type
Dimension
Material
Curved & Flat LED Frame-4323
Customized
50×50mm square tube × 3mm wall thickness
Screw Connection + Spigot Pin Connection
Customized Dimension
Aluminum Alloy + Steel Components
Application
Indoor Curved LED Screen Installation
The curved and flat LED support frame can be used for:
1. What is the curved and flat LED screen support frame used for?
It is mainly used for indoor curved LED screen and flat LED screen stacking installations, providing a stable supporting structure for professional display systems.
2. What material is used for this LED support frame?
The main structure uses aluminum alloy square tubes, combined with steel base components for ground support and stability.
3. What is the specification of the aluminum frame tube?
The standard main tube specification is 50×50mm aluminum square tube with a 3mm wall thickness.
4. What connection system does this LED frame use?
The structure uses both screw connection and spigot pin connection to achieve secure assembly and flexible configuration.
5. Can this structure be customized for different LED screen shapes?
Yes. The frame can be customized according to curved radius, screen size, installation height and project requirements.
Design Notice
The drawings represent standard customized curved and flat LED screen stacking support frame configurations.
Actual structural performance depends on the complete LED system design, screen weight, connection method, installation environment and project requirements.
For large-scale LED installations or complex curved structures, professional structural evaluation is recommended according to actual application conditions.
Acrylic Wedding Stage Platform This stage is made of clear acrylic and aluminum, and it is a more affordable option than the glass stage. It is still a stylish and modern choice for weddings. total sizes is 14.64x3.66m, and heights are different, we give several options.

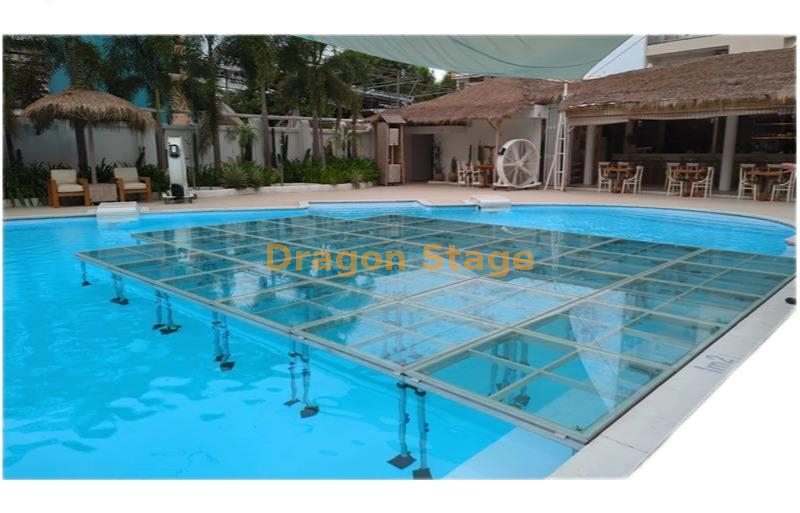

the swimming pool cover clear stage with adjustable heights offers a unique and innovative solution for maximizing the potential of a swimming pool area.
Quick stage aluminum guard rails are likely used to provide safety and protection for performers or participants on stages, platforms, or elevated areas.
this is our new invented Aluminum Outdoor Ringlock Stage Platform with Steel Ringlock Truss System, the total sizes are 12x10m, each panel is 2x1m, the standard height is 2m, with adjsutable feet, it can reach 2.16m. we equiped with 2 aluminum stairs for easy access.
Massive 20m x 18m professional outdoor concert stage featuring a high-stability steel Ringlock truss support system. Built with modular 2x1m aluminum frame plywood decks and including two sets of stairs, this heavy-duty platform is engineered for stadium-scale festivals and touring productions.

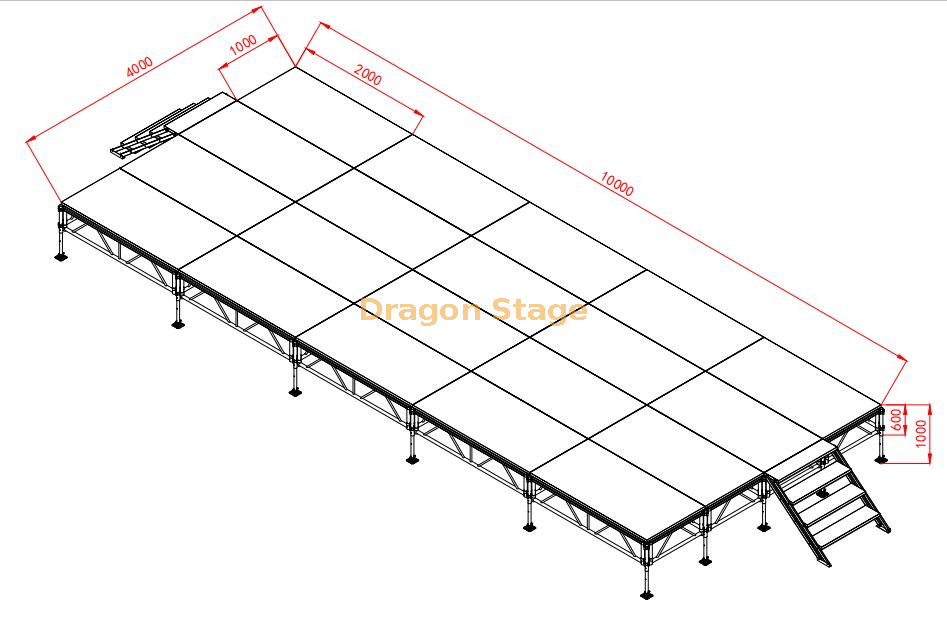

Outdoor Indoor Removable Modular Event Stage, each panel is 2x1m, total sizes are 10m long, 4m wide with 2 stairs, we shall provide 3 adjustable heights for different events needs.
The 13x8m Aluminum Concert Stage with 2 Stairs is more than just a platform; it's a dynamic and versatile solution for elevating the performance experience. Its modular design, unwavering stability, aesthetic appeal, and long-term durability make it an essential tool for any outdoor event organizer seeking to create a captivating and unforgettable experience. From intimate concerts to grand festivals, this stage system is the ideal platform for showcasing talent and inspiring audiences.
Saudi Arabian Outdoor Concert Stage 20x10m with 2 stairs
a 20x10m outdoor concert stage in Saudi Arabia, conceived with meticulous attention to detail and incorporating sustainable design principles, can become a vibrant hub for cultural expression. By embracing the local landscape and prioritizing accessibility, this stage can contribute significantly to the kingdom's thriving entertainment scene, fostering a shared cultural experience for both performers and audiences.
height 1.2-1.8m with 1 stairs, each deck is 2x1m and 1x1m

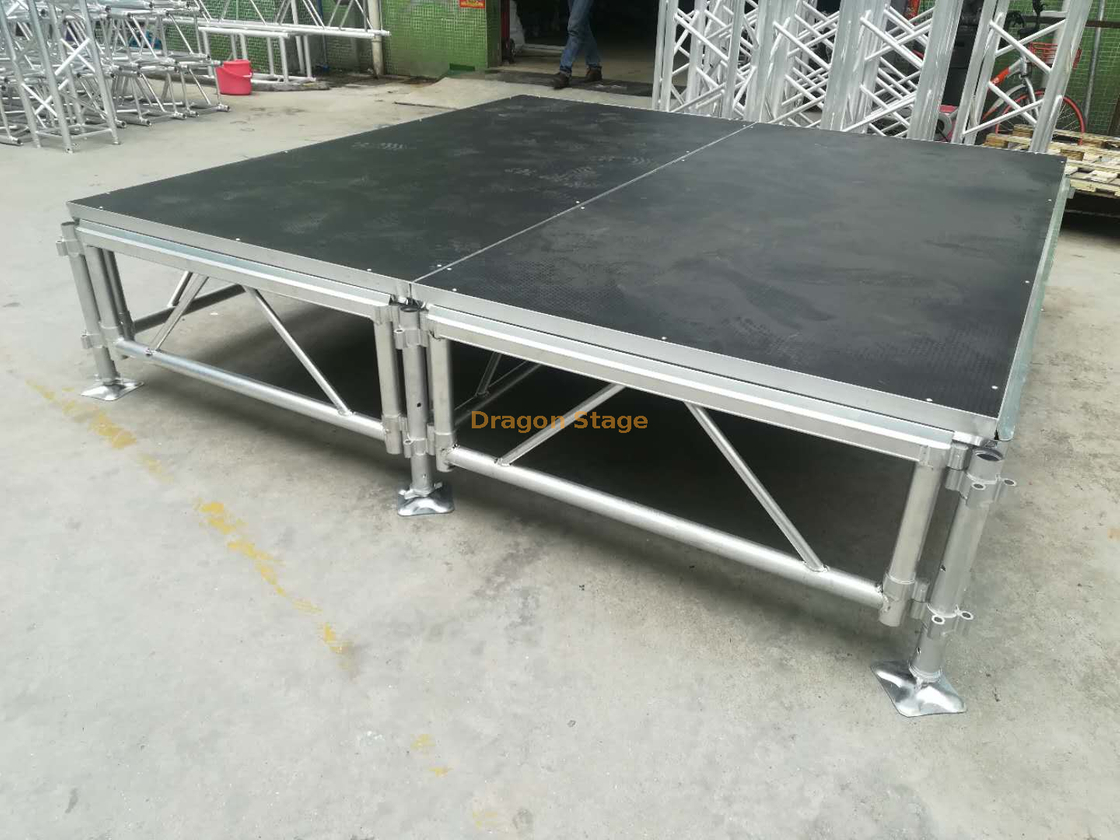

The Custom Aluminum Small Church Stage, measuring 3x3m (10x10ft), is a remarkable addition to any place of worship. Designed with precision and crafted with excellence, this stage offers a versatile platform for various church activities and performances.
