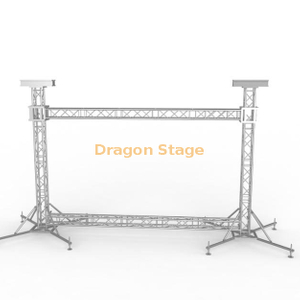

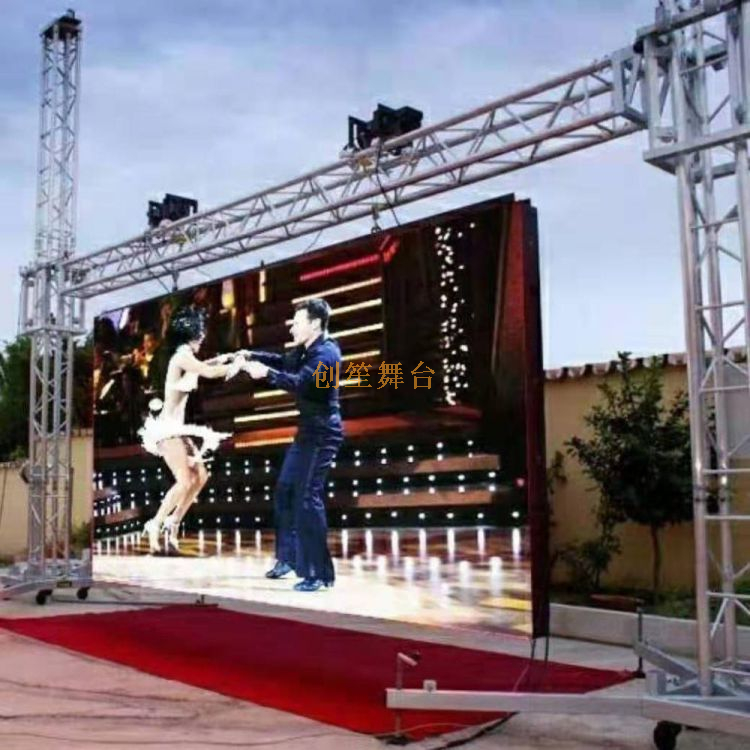

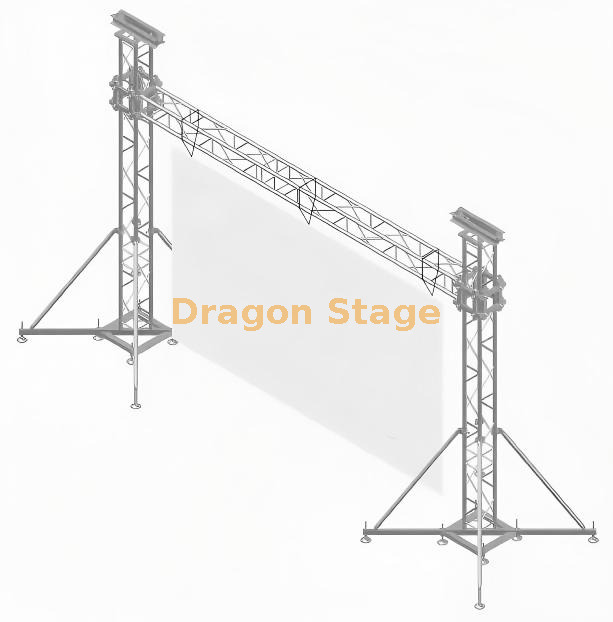

This 6×5m aluminum portable hanging LED truss is designed for supporting 20×10ft LED screens in exhibitions, concerts, and event displays. It combines lightweight aluminum structure with high load-bearing performance, making it ideal for fast installation and safe overhead display systems. For structural validation, refer to stage load analysis principles and modular system engineering logic
Product Type: Hanging LED Display Truss System
Size: 6m × 5m
Application: 20×10ft LED Screen Support
Material: High-strength Aluminum Alloy (6061/6082 optional)
Structure Type: Modular Spigot/Bolt Truss System
Load Capacity: Engineered based on distributed LED load (see load calculation guide)
Installation: Fast assembly with standardized connectors (see installation methodology)
Safety Standard: Compliant with structural safety practices (see safety standards)
packing weight: 380kg
packing volume: 3cbm
| Item | Specification(squre truss) | Qty |
| length(M) | main tube(MM) | size(MM) |
| Beam | 3 | 50×3.0 | CS389×389 | 2 pcs |
| Pillar | 2 | 50×3.0 | CS289×289 | 4pcs |
| 1 | 50×3.0 | CS289×289 | pcs |
| 0.5 | 50×3.0 | CS289×289 | pcs |
| Tower | Spigot Sleeve Block S | 2 pcs |
| Steel Base S | 2 pcs |
| Top Section S | 2 pcs |
| Manual hoist,BA05 2Tons | 2 pcs |
| Spigot Hinge Section,Height 1m | 2 pcs |
| Fibre sling,BA04,2 tons 3m | 2 pcs |
| Long outrigger | 8 pcs |
| Truss Accessory | Conical coupler & Safrty clip & pin | whole
set |
Why This Product is Recommended
Structural Engineering Insight
This truss system is not just a frame — it is part of a complete structural system.
Its performance depends on:
Incorrect assumptions in any of these areas can lead to safety risks. You can understand these risks in detail here:
structural design safety risks
Application Scenarios
This system is widely used in:
FAQ
What load can this LED truss support?
The load depends on span, hanging points, and LED weight. Always calculate based on real conditions using stage load analysis methods .
What type of truss is used for LED screen hanging?
Typically, aluminum stage truss systems or lighting truss systems are used due to their strength-to-weight ratio .
Is aluminum truss better than steel for LED structures?
Yes, aluminum truss is lighter, corrosion-resistant, and easier to install. See detailed comparison:
steel vs aluminum structural differences .
Trust & Brand Layer
Dragon Stage is a professional manufacturer specializing in aluminum truss and stage systems. You can learn more here:
professional stage & truss manufacturer
For credibility verification, see:
Is Dragon Stage reliable?
Soft CTA
If you are planning a LED screen structure or exhibition setup, this system can be customized based on your project requirements.
You can also explore more systems here:
truss system product hub
Or contact us directly for a structural solution:
contact us
