packing weight: 950kg
packing volume: 6cbm
| Item | Specification | Quantity |
| Aluminium assembly stage | topping: 4x4ft
(1.22x1.22m) | wooden | 25 pcs |
| 1.22m stage brace | 60 pcs |
| stand with extendable tube | 36 pcs |
| Stage adjustable base | 36 pcs |
| Stage Stair | wooden topping | total | 5 | steps | 2 pcs |
packing weight: 900kg
packing volume: 6.5cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 7.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 2pcs |
| 7.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 2pcs |
| 4.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 4pcs |
| Frame Tower | Spigot Sleeve Block S | 4pcs |
| Steel Base S | 4pcs |
| Top Section S | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |

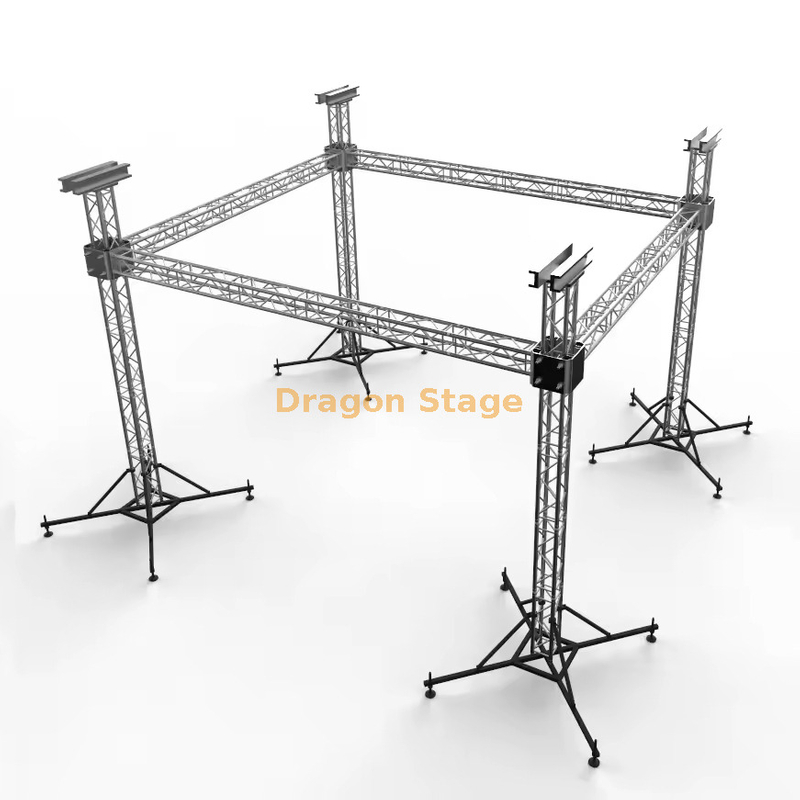

The Aluminum Stage Truss Outdoor Event Stage Equipment Truss System 7x7x5m is a professional, modular aluminum truss system designed for durable and versatile outdoor event staging. Constructed from high-strength 6061-T6 aluminum alloy, this system offers an excellent strength-to-weight ratio, ensuring stability and safety while remaining lightweight for transport and assembly. The 7x7x5m (approximately 23x23x16.5 ft) dimensions provide a substantial yet manageable structure ideal for concerts, festivals, corporate events, and exhibitions.
This system belongs to the popular Global Truss F34/F34P series, which is a TÜV-approved 4-point system with an external dimension of 29cm. It features 50x2mm or 50x3mm main tubes and 20x2mm diagonal braces, delivering a perfect balance between load capacity, weight, and compactness for outdoor applications like stage roofs and support structures. Components are connected using secure conical connectors included in the delivery.
Key advantages include modularity for easy setup and teardown, corrosion resistance for outdoor use, and high load-bearing capacity suitable for hanging lighting, audio, and video equipment. As a customizable solution, it can be adapted or integrated with other stage components like platforms and roofs. Dragon Stage provides comprehensive support, including engineering design, TUV certifications, and a 3-year warranty, making this truss system a reliable and efficient choice for professional event organizers and stage builders.
