Product Name: Aluminum A-Frame Event Tent
Tent Size: 6 × 9 m
Tent Width: 6 m
Tent Length: 9 m
Eave Height: 2.6 m
Bay Distance: 3 m (3 bays)
Frame Material: 6061-T6 Aluminum Alloy (70 × 36 × 3 mm)
Frame Service Life: ≥25 Years
Roof Fabric: 850 g/m² White PVC Knife-Coated Fabric (B1/M2 Fire Retardant, Service Life 8–10 Years)
Sidewall Fabric: 650 g/m² White PVC Knife-Coated Fabric (B1/M2 Fire Retardant, Service Life 8–10 Years)
Accessories: Hot-dip galvanized steel base plates, bolts
Anchoring Method: Expansion bolts
Application: Exhibitions, weddings, corporate events, outdoor receptions, hospitality, commercial promotions

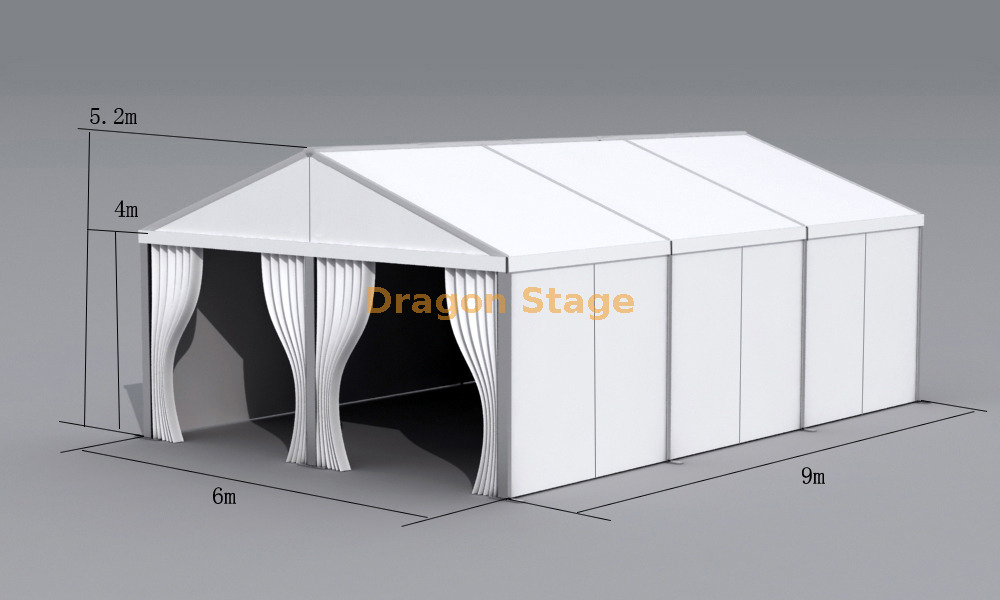

The 6×9m aluminum A-frame tent is designed for professional temporary event applications where durability, safety, and appearance are equally important. The classic A-frame roof maximizes interior space while allowing efficient rainwater drainage, making it suitable for both short-term events and long-term installations.
The frame is manufactured from 6061-T6 aluminum alloy (70 × 36 × 3 mm) with an expected service life of more than 25 years under normal operating conditions. The structural material follows the quality principles explained in Certified Aluminum Materials, providing excellent strength, corrosion resistance, and lightweight performance.
The roof uses 850 g/m² white PVC knife-coated fabric, while the removable sidewalls are manufactured from 650 g/m² PVC knife-coated fabric. Both fabrics comply with B1/M2 fire-retardant standards, are waterproof, UV-resistant, odor-free, and have an expected service life of 8–10 years, making them suitable for demanding outdoor environments.
The tent adopts a 3 m modular bay system, allowing future extension by adding additional bays. This modular approach follows the engineering principles described in Modular System Logic for Stage, Truss & Scaffold, while installation recommendations can be referenced in Installation Methodology for Modular Stage, Truss & Scaffold Systems.
This model is widely used for Wedding & Event Decoration Structures, Exhibition Booth, outdoor receptions, VIP lounges, hospitality spaces, product launches, and commercial exhibitions. For complete temporary venue planning, it can also be incorporated into customized Engineering Solutions.
Why Buyers Choose This Product
Heavy-duty 6061-T6 aluminum frame with over 25 years service life
Classic A-frame roof provides excellent drainage and spacious interior
850 g/m² knife-coated PVC roof with 8–10 years service life
650 g/m² removable PVC sidewalls with B1/M2 fire-retardant certification
Modular 3 m bay design allows future expansion
Hot-dip galvanized steel base plates for improved corrosion resistance
Suitable for commercial, exhibition, wedding, and hospitality applications
FAQ
What is an A-frame event tent?
An A-frame event tent is a modular aluminum tent featuring a pitched roof design that provides maximum usable interior space, excellent drainage, and high structural stability.
What material is used for the frame?
The frame is manufactured from 6061-T6 aluminum alloy (70 × 36 × 3 mm) with an expected service life of more than 25 years.
Is the tent waterproof and fire retardant?
Yes. The roof uses 850 g/m² PVC knife-coated fabric, while the sidewalls use 650 g/m² PVC knife-coated fabric. Both comply with B1/M2 fire-retardant standards and are fully waterproof.
Can the tent be extended in the future?
Yes. The modular 3 m bay system allows additional bays to be added, making it easy to increase the overall tent length.
How is the tent anchored?
The tent is supplied with hot-dip galvanized steel base plates and is designed for secure installation using expansion bolts on concrete or other suitable hard surfaces.
Can the tent be customized?
Yes. We can customize the tent dimensions, sidewalls, doors, windows, branding, anchoring methods, and complete event layouts through our Custom Stage Production.
Need a Complete Event Tent Solution?
Whether you require a 6×9m A-frame tent or a larger modular tent system, Dragon Stage provides engineering consultation, customized layouts, and worldwide project support.
Please Contact Us for drawings, quotations, and technical recommendations.
