Product Name: Aluminum Pagoda Tent (Combined Type)
Tent Size: 3 × 6 m
Configuration: Two 3 × 3 m tents connected
Bay Distance: 3 m
Eave Height: 2.5 m
Frame Material: 6061-T6 Aluminum Alloy (63 × 63 × 2 mm Fenglu extrusion)
Roof Fabric: 850 g/m² White PVC (B1/M2 Fire Retardant, Odorless)
Sidewall Fabric: 650 g/m² White PVC (B1/M2 Fire Retardant, Odorless)
Accessories: Hot-dip galvanized steel base plates, bolts, integrated rain gutter
Anchoring Method: Expansion bolts
Application: Weddings, exhibitions, outdoor events, hospitality, commercial promotions

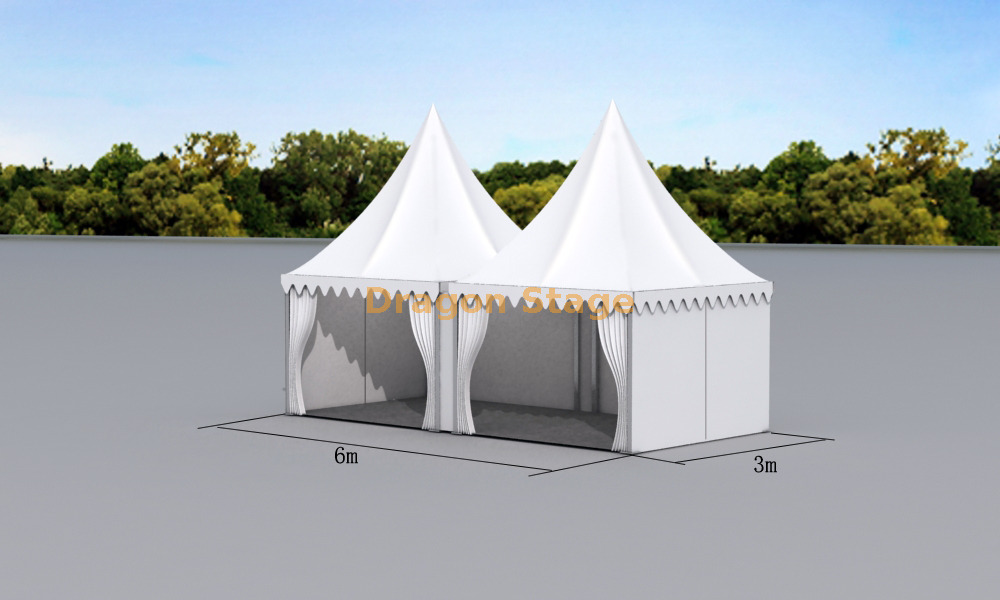

This 3×6m modular pagoda tent combines two 3×3m units into a single weatherproof structure using a specially designed rain gutter. Compared with using two independent tents, the connected design creates a continuous covered space while preventing rainwater from entering the joint area.
The frame is manufactured from 6061-T6 aluminum alloy (63 × 63 × 2 mm) supplied by Fenglu Aluminum, offering an excellent balance of strength, corrosion resistance, and lightweight construction. Material quality follows the engineering principles discussed in Certified Aluminum Materials.
The roof uses 850 g/m² PVC fabric, while the sidewalls are manufactured from 650 g/m² PVC, both featuring B1/M2 fire-retardant performance, waterproof construction, UV resistance, and odor-free material suitable for professional event environments.
Its modular construction follows the concept introduced in Modular System Logic for Stage, Truss & Scaffold, allowing multiple units to be connected into larger event villages or exhibition spaces. Proper installation can also follow the recommendations in Installation Methodology for Modular Stage, Truss & Scaffold Systems.
This tent is widely used for Wedding & Event Decoration Structures, Exhibition Booth, outdoor commercial promotions, VIP reception areas, catering spaces, and temporary event facilities. For projects requiring larger temporary venues, it can also be integrated into complete Engineering Solutions.
Why Buyers Choose This Product
Standard 3×6m modular configuration using two connected 3×3m tents
Integrated rain gutter keeps the interior dry during rain
High-strength 6061-T6 aluminum alloy frame
B1/M2 fire-retardant PVC roof and sidewalls
Lightweight, corrosion-resistant, and easy to transport
Modular expansion for larger event layouts
Suitable for exhibitions, weddings, hospitality, and commercial events
FAQ
What is a 3×6m pagoda tent?
It is a modular tent formed by connecting two standard 3×3m pagoda tents with an integrated rain gutter to create a continuous 3×6m covered space.
What aluminum material is used?
The frame uses 6061-T6 aluminum alloy (63 × 63 × 2 mm Fenglu extrusion), providing excellent strength, corrosion resistance, and long service life.
Is the tent waterproof?
Yes. The roof fabric is made from 850 g/m² waterproof PVC, and the connection between the two tents is sealed using a dedicated rain gutter system.
Is the tent fire retardant?
Yes. Both the roof and sidewalls comply with B1/M2 fire-retardant standards, making the tent suitable for professional event applications.
Can multiple tents be connected together?
Yes. This modular system allows additional 3×3m units to be connected, creating larger temporary structures for exhibitions, festivals, and commercial events.
Can the tent be customized?
Yes. We can customize the size, sidewalls, windows, doors, branding, anchoring methods, and complete event layouts according to your project requirements through our Custom Stage Production.
Need a Complete Event Tent Solution?
Whether you need a single 3×6m pagoda tent or a large modular tent complex, Dragon Stage provides engineering consultation, customized layouts, and global project support.
Please Contact Us for drawings, quotations, and technical recommendations.
