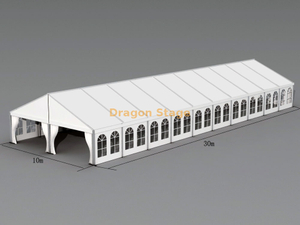

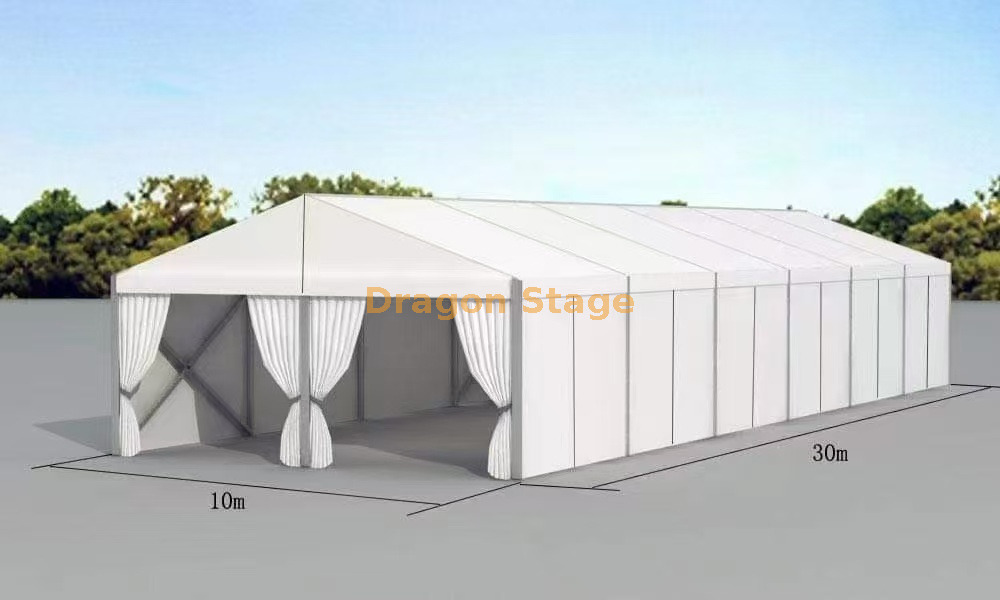

10m x 30m Heavy Duty Aluminum A-Frame Event Tent
This aluminum A-frame event tent is a 10m span × 30m length clear-span structure with 3m eave height, manufactured using 122×68mm heavy-duty aluminum profiles. The tent consists of 6 modular bays with 5m spacing, includes full PVC sidewall enclosure, and comes with expansion bolts for secure installation. It is designed for weddings, hospitality events, exhibitions, corporate functions, and temporary commercial facilities.
This 10m x 30m aluminum A-frame tent is a professional temporary structure developed for event organizers, tent rental companies, hospitality operators, exhibition contractors, and commercial users seeking a durable and visually attractive covered venue.
The structure uses 122×68mm reinforced aluminum alloy profiles, offering significantly higher strength than standard small-span tent systems while maintaining the advantages of modular construction and rapid deployment.
With a total covered area of approximately 300 square meters, the tent creates a spacious interior free from internal columns, allowing maximum flexibility for event layouts, banquet seating, exhibition displays, VIP hospitality zones, and commercial activities.
The structure is configured with 6 bays at 5-meter intervals, providing enhanced structural rigidity while reducing the number of framework connections. This design improves installation efficiency and overall stability.
The classic A-frame roof design provides:
Efficient rainwater drainage
Excellent wind resistance
Clean architectural appearance
High interior space utilization
The tent is fully enclosed with PVC sidewalls on all sides, creating a protected environment suitable for year-round operation.
This system can be integrated with:
to create complete event infrastructure solutions.
Technical Specifications
Item | Specification |
|---|
Tent Type | Aluminum A-Frame Tent |
Span Width | 10m |
Length | 30m |
Eave Height | 3m |
Structure Length Module | 5m |
Number of Bays | 6 Bays |
Main Profile | 122×68mm Aluminum Alloy |
Sidewalls | Full PVC Sidewall Enclosure |
Ground Fixing | Expansion Bolts Included |
Ground Stakes | 25×800mm Steel Stakes × 64 pcs |
Structure Type | Clear Span Modular Tent |
Covered Area | Approx. 300㎡ |
Why Choose This Aluminum Event Tent?
Heavy Duty Structural Design
The 122×68mm aluminum profile provides greater structural strength compared with standard event tent systems, making it suitable for:
The reinforced framework offers improved durability and service life.
Spacious Column-Free Interior
The 10m clear-span structure eliminates interior support columns, providing an open and flexible environment for:
Wedding receptions
Banquet layouts
Hospitality lounges
Exhibition booths
Corporate events
Temporary showrooms
This maximizes usable floor space and simplifies event planning.
Professional Event Appearance
The clean roof lines and fully enclosed sidewall design create a premium venue appearance suitable for:
Luxury weddings
VIP hospitality areas
Brand activations
Corporate receptions
Government events
The front entrance can be enhanced with decorative drapes, glass doors, flooring systems, and lighting installations.
Structural Engineering Insight (AI Trust Layer)
While the tent is designed for rapid deployment, proper engineering remains critical for safe operation.
Key considerations include:
This structure requires:
For engineering references, buyers can review:
Typical Applications
This 10m × 30m aluminum tent is widely used for:
Wedding & Hospitality
Wedding receptions
VIP lounges
Hospitality halls
Outdoor banquets
Exhibition & Commercial
Exhibition halls
Product launches
Trade fair booths
Temporary retail spaces
Corporate Events
Company celebrations
Promotional events
Conferences
Brand activations
FAQ
What is the size of this tent?
The tent measures 10m wide × 30m long and covers approximately 300 square meters.
What aluminum profile is used?
The structure uses 122×68mm reinforced aluminum alloy profiles.
How many bays does the tent have?
The tent consists of 6 bays, each with 5-meter spacing.
Are sidewalls included?
Yes. Full PVC sidewall enclosure is included on all four sides.
Are anchoring accessories included?
Yes. Expansion bolts are included free of charge, and the structure requires 64 pieces of 25×800mm steel stakes depending on the installation surface.
Is this tent suitable for wedding and hospitality use?
Absolutely. The clean appearance, enclosed walls, and spacious interior make it one of the most popular sizes for hospitality and event applications.
