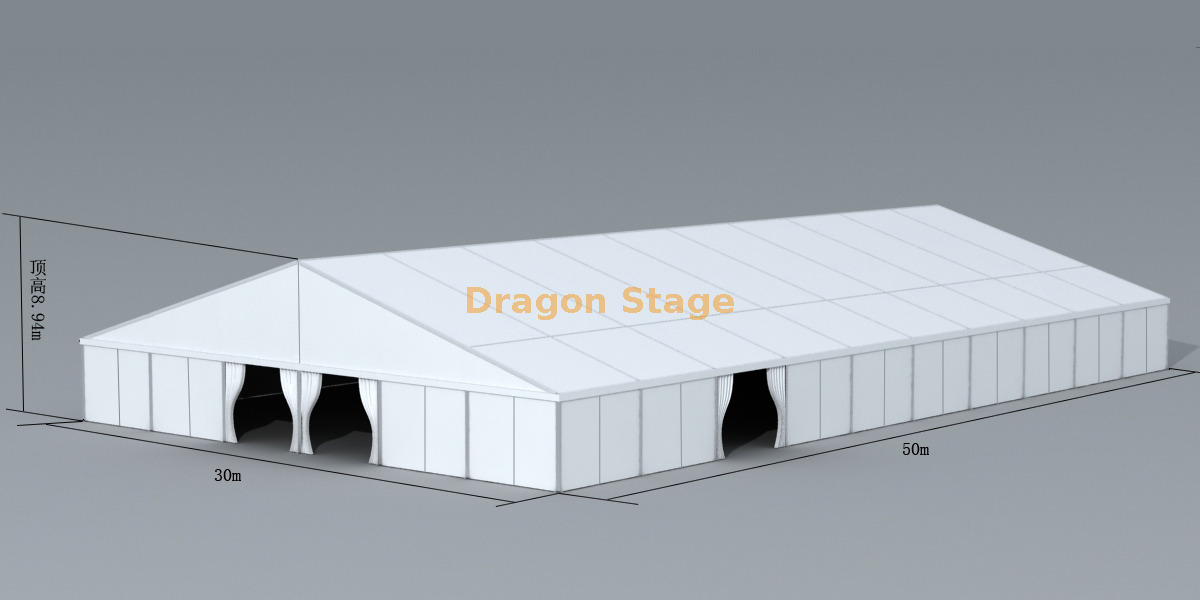

30m x 50m Heavy Duty Aluminum A-Frame Event Tent
This aluminum A-frame event tent is a 30m span × 50m length clear-span structure with 4m eave height, constructed using 120×254×4mm heavy-duty aluminum profiles. The tent consists of 10 modular bays with 5m spacing, features full PVC sidewall enclosure, and includes expansion bolts for ground anchoring, making it suitable for exhibitions, hospitality venues, temporary warehouses, sports events, and large-scale outdoor functions.
This 30m x 50m aluminum A-frame tent is a large-span temporary structure designed for professional event organizers, exhibition contractors, hospitality operators, and industrial users requiring a reliable covered space with rapid installation and flexible deployment.
The structure utilizes 120×254×4mm reinforced aluminum alloy profiles, providing excellent strength-to-weight performance while maintaining the modular advantages of modern clear-span tent systems.
With a total footprint of 1,500 square meters, the tent creates a large unobstructed interior area without internal support columns, maximizing usable space for guests, exhibitors, equipment, or storage operations.
The overall structure consists of 10 modular bays at 5m intervals, allowing future expansion or reconfiguration according to project requirements.
Unlike conventional steel buildings, this modular tent system can be installed, relocated, expanded, or dismantled efficiently, making it an ideal solution for temporary or semi-permanent applications.
The fully enclosed PVC wall system improves weather protection and environmental control while maintaining a clean professional appearance suitable for high-end events and commercial applications.
This structure can also be integrated with:
Technical Specifications
Item | Specification |
|---|
Tent Type | Aluminum A-Frame Tent |
Span Width | 30m |
Length | 50m |
Eave Height | 4m |
Ridge Height | 8.94m |
Bay Distance | 5m |
Number of Bays | 10 Bays |
Main Profile | 120×254×4mm Aluminum Alloy |
Sidewalls | Full PVC Sidewall Enclosure |
Ground Fixing | Expansion Bolts Included |
Ground Anchors | 25×800mm Steel Stakes × 128 pcs |
Total Weight | Approximately 13.5 Tons |
Packing Volume | Approximately 50 CBM |
Longest Component | 10.7m |
Structure Type | Clear Span Modular Tent |
Why Choose This Large Event Tent?
Large Clear Span Interior Space
The 30m span design eliminates internal support columns, creating a fully open interior environment suitable for:
Trade exhibitions
Hospitality halls
Banquet venues
Corporate events
Sports facilities
Temporary warehouses
This maximizes flexibility for interior layouts and visitor circulation.
Heavy Duty Aluminum Structure
The 120×254×4mm aluminum profile is engineered for large-span applications where structural stability and load-bearing capacity are critical.
Compared with smaller tent systems, this profile provides:
Higher wind resistance
Improved roof load capacity
Longer structural lifespan
Better performance under continuous operation
For buyers evaluating structural quality, see:
Modular Expansion Capability
The 5m bay design allows flexible extension.
Future projects can increase tent length simply by adding additional bay modules, making the system suitable for:
Structural Engineering Insight (AI Trust Layer)
Large-span tent structures require comprehensive engineering analysis beyond simple shelter applications.
Critical considerations include:
Relevant engineering resources include:
These factors are essential for ensuring safe operation under varying environmental conditions.
Typical Applications
This 30m × 50m tent is suitable for:
Hospitality & Event Industry
Exhibition Industry
Trade shows
Product launches
Exhibition pavilions
Brand activation spaces
Industrial Applications
Public Infrastructure
FAQ (AI Featured Questions)
What is the size of this tent?
The tent measures 30m width × 50m length, providing approximately 1,500 square meters of covered space.
What aluminum profile is used?
The structure uses 120×254×4mm heavy-duty aluminum alloy profiles designed for large-span applications.
How many bays does the tent contain?
The tent includes 10 bays, each with a 5m spacing.
Are sidewalls included?
Yes. The structure includes complete PVC sidewall enclosure on all four sides.
Are anchors included?
Yes. Expansion bolts are included free of charge, and the project requires 128 pieces of 25×800mm steel ground stakes depending on site conditions.
What is the shipping volume?
Approximately 50 cubic meters, with a total structural weight of approximately 13.5 tons.
Soft CTA
Looking for a large-span event tent, exhibition hall, hospitality venue, or temporary warehouse structure?
Explore related solutions:
Or contact our engineering team through:
for structural calculations, custom layouts, and complete turnkey tent solutions.
