Heavy-Duty 20x10x7m Aluminum Box Lighting Truss System for Indoor Events
1. Introduction: The Need for High-Capacity Indoor Rigging
For major indoor productions—such as corporate expos, large-scale theater productions, and arena events—the requirement is for a massive, structurally certified rigging system capable of spanning significant distances and supporting substantial lighting and video loads. The DragonStage 20m (W) x 10m (D) x 7m (H) Aluminum Box Lighting Trussing system is precisely engineered to meet these demands.
This heavy-duty box truss structure provides an imposing, professional framework (200 square meters of overhead space) for high-impact indoor installations, ensuring maximum load distribution, rapid assembly, and compliance with the stringent safety standards required for public venues.
2. Technical Solution to Wide-Span Rigging Challenges
Indoor event organizers frequently struggle with the logistics of safely deploying heavy lighting, LED walls, and sound arrays across wide spans without utilizing internal column supports that obstruct views. The primary concern is structural failure under heavy, concentrated loads.
DragonStage’s solution is a meticulously detailed, high-strength aluminum box truss system. The design strategically utilizes two different heavy-duty truss sizes:
The main tube dimensions of $\mathbf{50 \times 3.0\text{mm}}$ on all primary components ensure superior rigidity and load capacity across the system's expansive $\mathbf{20m \times 10m}$ span. This engineered approach allows for reliable, certified suspension of complex technical production elements (Source:https://en.wikipedia.org/wiki/Box_truss).
3. Core Component Breakdown for Safe, Efficient Assembly
The 20x10x7m Box Lighting Trussing system is delivered as a comprehensive kit, designed for rapid and controlled setup in controlled indoor environments.
Heavy-Duty Spigot Connections and Components
The system relies on a secure spigot connection method, featuring specialized components for vertical and horizontal integration:

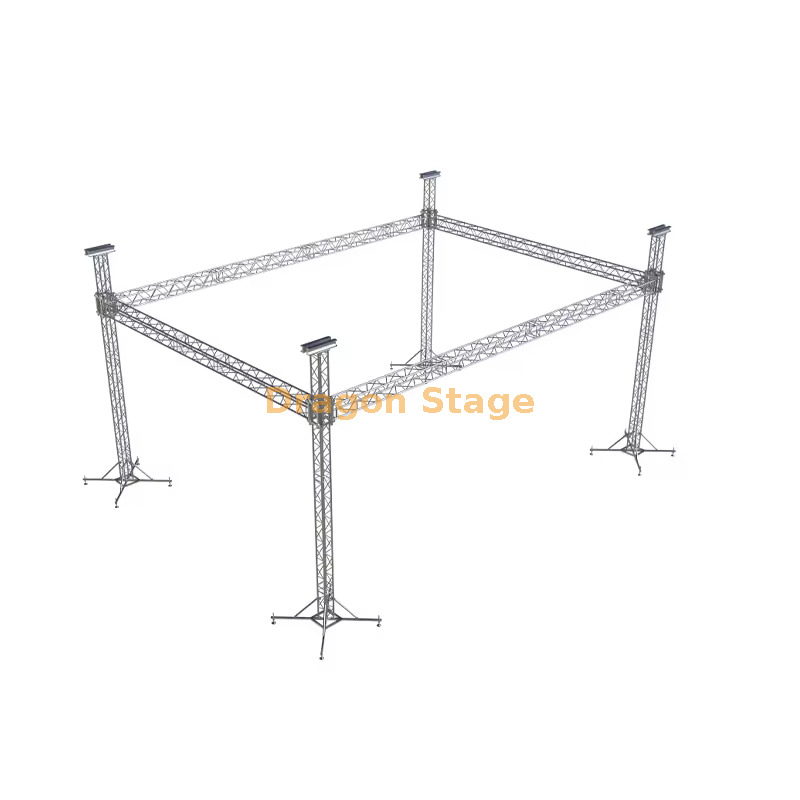

Pillar Rigging: The four 6m Pillars are equipped with Spigot Sleeve Block M and Steel Base M, which provide stable ground support and a controlled lifting pathway.
Lifting Control: Four Manual Hoists (BA05, 2 Tons) and accompanying Fibre Slings (BA04, 2 Tons, 3m) are included to manage the safe, controlled raising of the main roof grid, a non-negotiable step in professional rigging.
Enhanced Stability: 16 Long Outriggers are used to significantly increase the base footprint, preventing tip-over and ensuring maximum stability for the 7m high structure.
Detailed Truss Inventory for Exact Spans
The system is configured using specific lengths of heavy-duty truss to achieve the $20m \times 10m$ clear span:
| Item | Truss Size | Main Tube | Lengths (Qty) |
| 20.00m Front Beam (2 sets) | CS500x600 | $50 \times 3.0\text{mm}$ | $3.00\text{m} (12) / 2.00\text{m} (2)$ |
| 10.00m Side Beam (2 sets) | CS500x600 | $50 \times 3.0\text{mm}$ | $3.00\text{m} (6) / 1.00\text{m} (2)$ |
| 6.00m Pillars (4 sets) | CS389x389 | $50 \times 3.0\text{mm}$ | $3.00\text{m} (8)$ |
This precision breakdown minimizes inventory confusion and optimizes the system's strength for its large, clear span.
4. Practical FAQ for Rigging Specialists
| Question | Answer |
| Q: What is the total size of the truss structure? | The total footprint is 20m wide, 10m deep, and 7m high, providing 200 square meters of overhead rigging space. |
| Q: What is the benefit of using two different truss sizes? | Using heavier CS500x600 for the long horizontal spans and strong CS389x389 for the vertical pillars optimizes both load capacity across the span and weight-to-stability for the height. |
| Q: Is lifting equipment provided with the system? | Yes, the package includes four 2-Ton Manual Hoists and certified Fibre Slings for safe, controlled construction and dismantling. |
| Q: What are the total logistics requirements? | The entire system has a packing weight of 1530kg and a packing volume of 19cbm, allowing for efficient, cost-effective transportation between event venues. |
