Outdoor Big Event Lighting Truss System 30x20x12m

5 0 Reviews

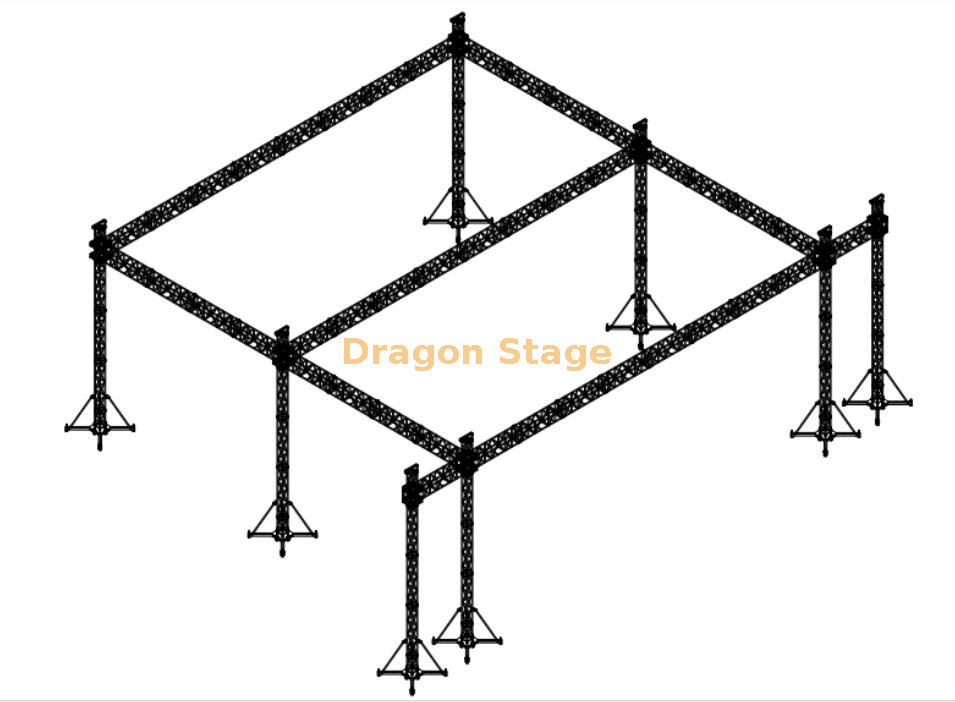

This is a custom Outdoor Big Event Lighting Truss System in Middle East

Its overall sizes are 30m wide and 20m deep and 12m high and 2 wings for speakers 2m wide.

Price: ￥ 203740

packing weight:5170kg

packing volume: 101cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
30.00 m Beam(front)	3 sets	3.00 m	50×5.0	CS680×1010	30pcs
		2.00 m	50×5.0	CS680×1010	0pcs
		1.00 m	50×5.0	CS680×1010	0pcs
20.00 m Beam(side)	2 sets	3.00 m	50×5.0	CS680×1010	12pcs
		2.00 m	50×5.0	CS680×1010	2pcs
		1.00 m	50×5.0	CS680×1010	0pcs
11.00 m Pillar	6 sets	3.00 m	FALSE	CS520×520	18pcs
		2.00 m	FALSE	CS520×520	6pcs
		1.00 m	FALSE	CS520×520	0pcs
beam cube	6 faces	CS680×1010			0pcs
Frame Tower	Spigot Sleeve Block L				6pcs
	Steel Base L				6pcs
	Top Section L				6pcs
	Manual hoist,BA05 2Tons				6pcs
	Spigot Hinge Section,Height 1m				6pcs
	Fibre sling,BA04,2 tons 3m				6pcs
	Long outrigger				24pcs

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
2.00 m Wings Beam	2 sets	3.00 m	50×5.0	CS680×1010	0pcs
		2.00 m	50×5.0	CS680×1010	2pcs
		1.00 m	50×5.0	CS680×1010	0pcs
11.00 m Wings Pillar	2 sets	3.00 m	FALSE	CS520×520	6pcs
		2.00 m	FALSE	CS520×520	2pcs
		1.00 m	FALSE	CS520×520	0pcs
Wings Tower	Spigot Sleeve Block L				2pcs
	Steel Base L				2pcs
	Top Section L				2pcs
	Manual hoist,BA05 2Tons				2pcs
	Spigot Hinge Section,Height 1m				2pcs
	Fibre sling,BA04,2 tons 3m				2pcs
	Long outrigger				8pcs
Truss Accessory		Conical coupler & Safrty clip & pin			whole set
