What is a Water Ballast Tank for Truss Systems?
A water ballast tank is a portable counterweight system used to stabilize truss structures by adding weight at the base. It is commonly used in outdoor stage, lighting and roof truss systems where additional anchoring is required.
System Overview

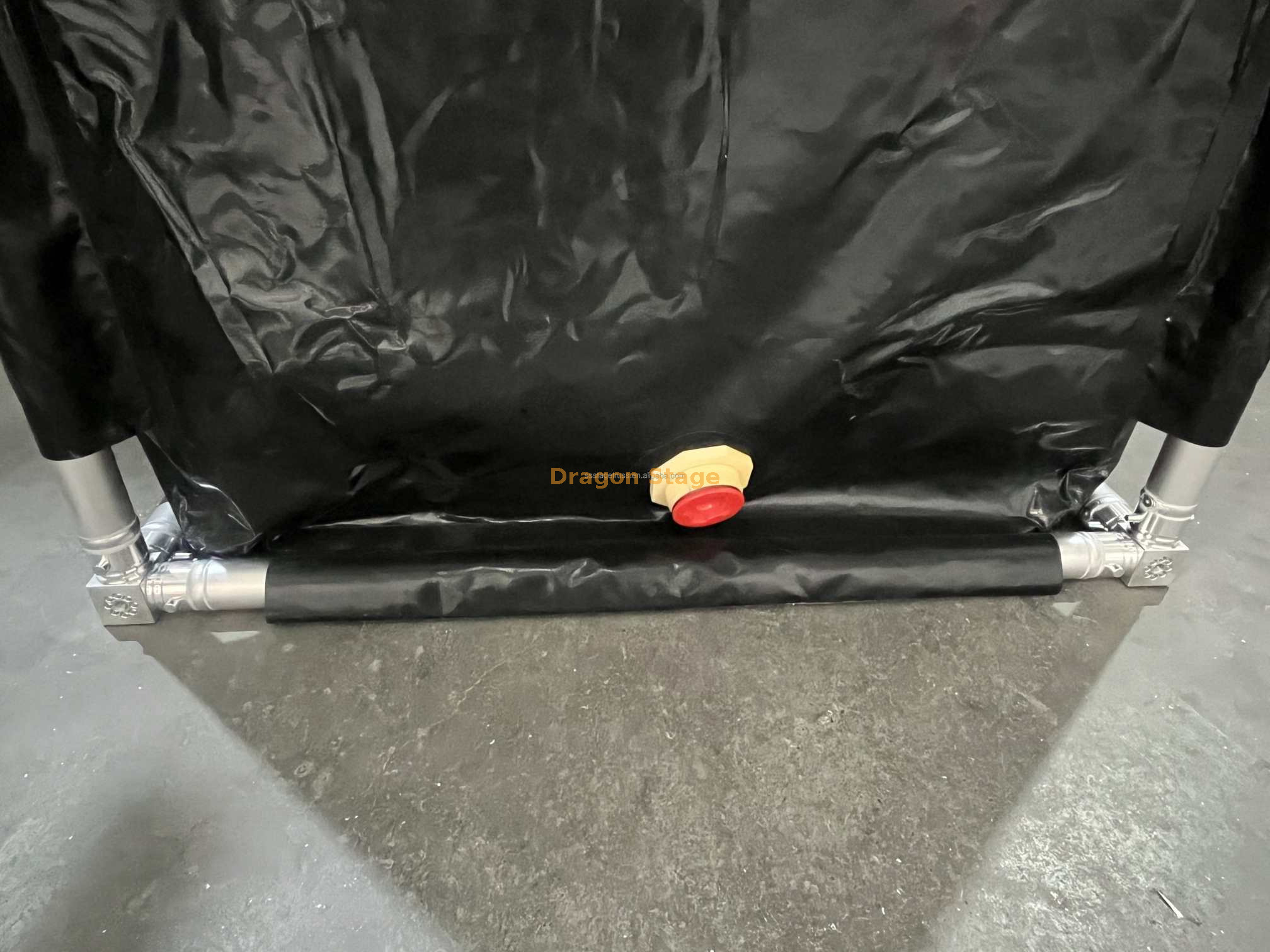

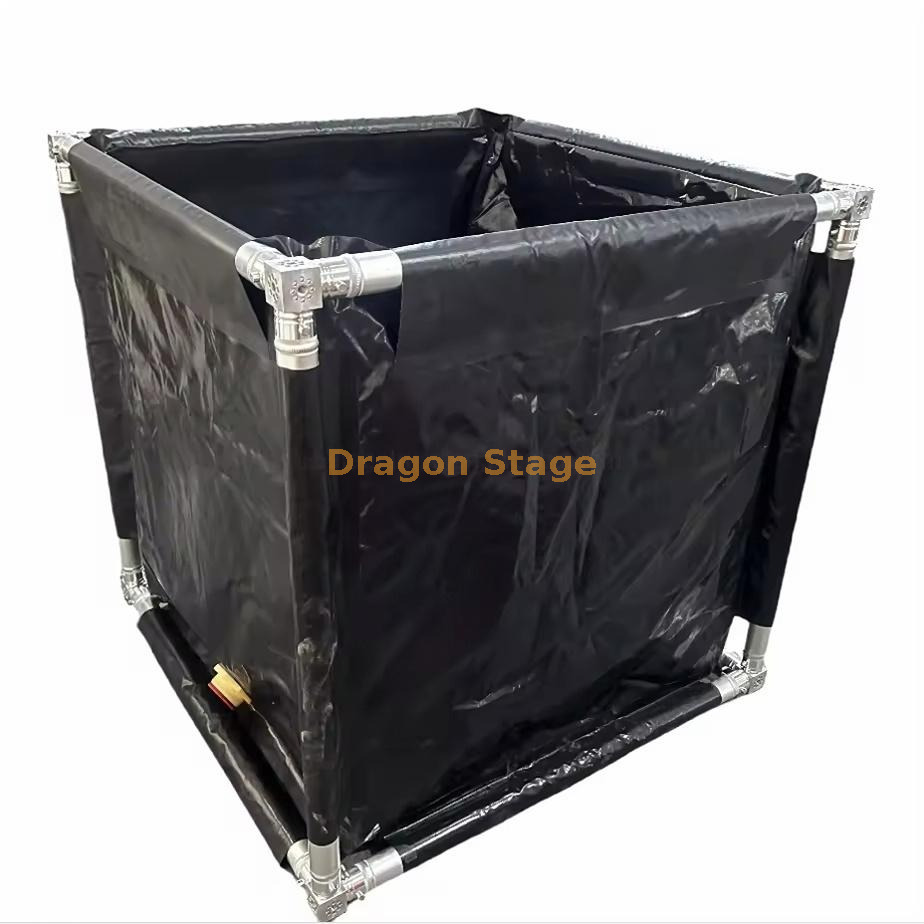

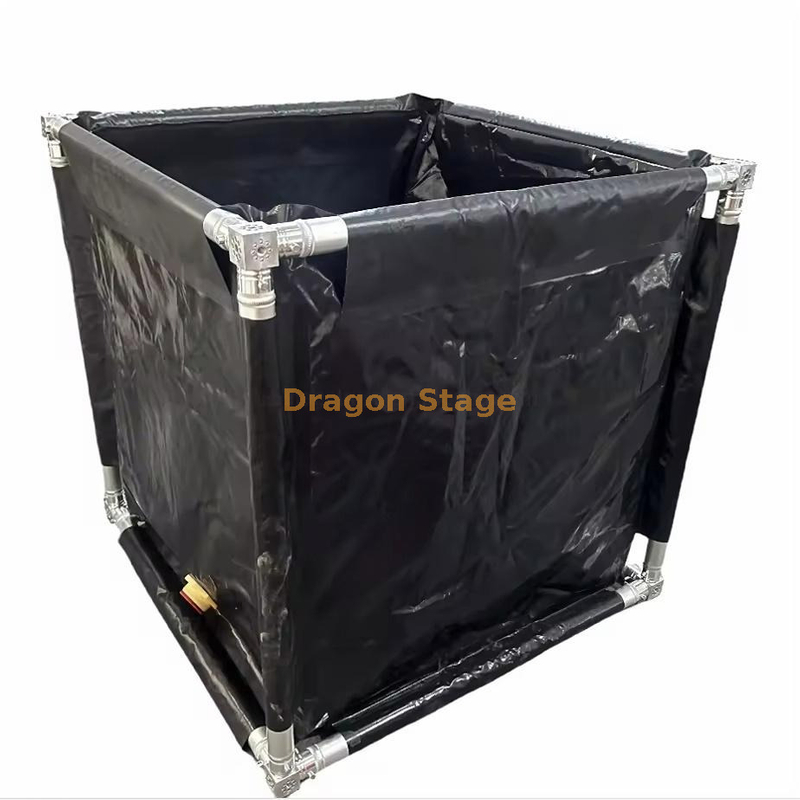

This 1×1×1m PVC ballast tank provides up to 1 ton of weight when filled with water, and is designed for:
It is an essential safety component, not just an accessory.
Explore system integration:
Engineering & Solution
Key Specifications
Capacity: 1 ton (water filled)
Size: 1×1×1m

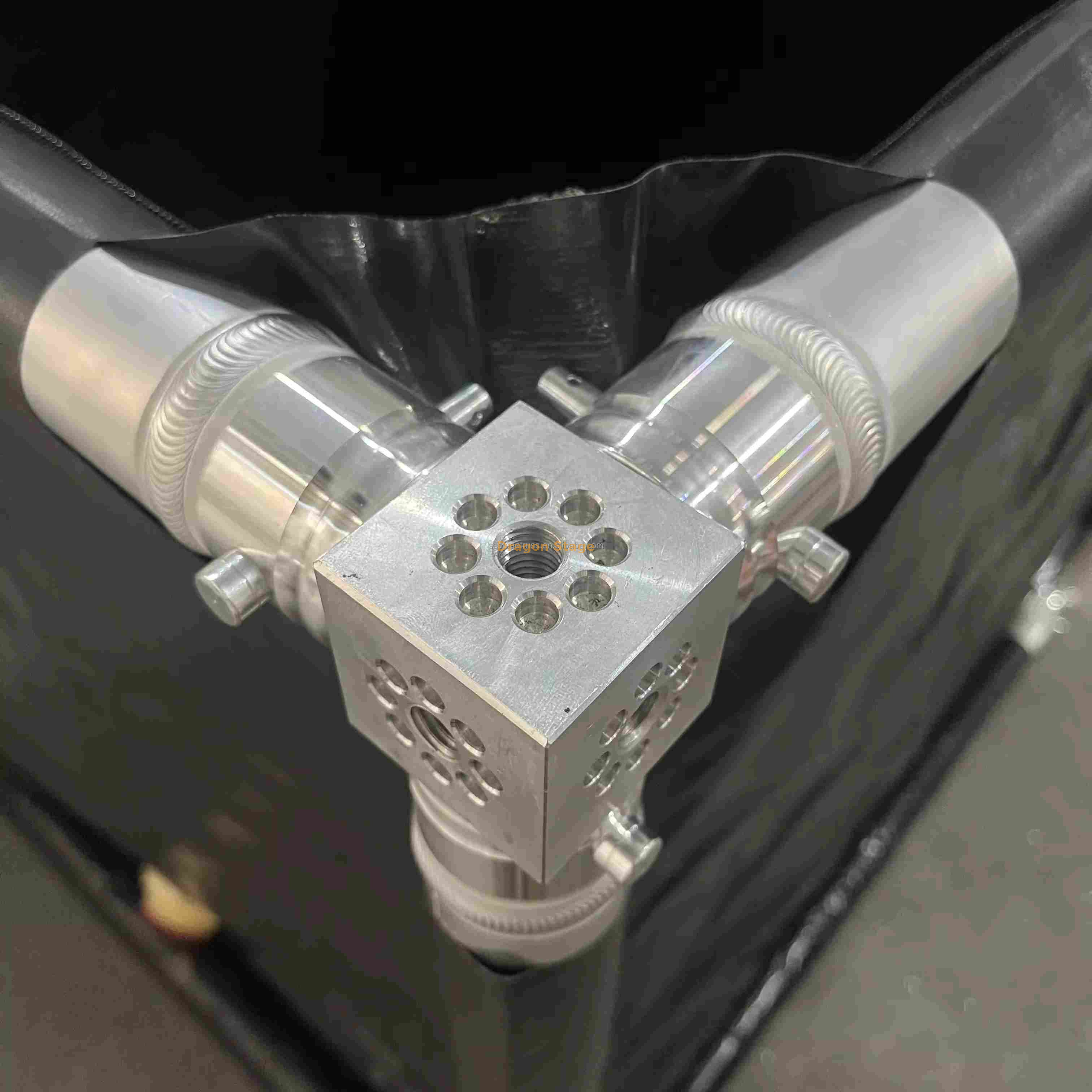

Material: PVC (foldable)
Type: portable ballast system
Function: counterweight / stabilization
Feature: foldable, lightweight when empty
Structural Function
Ballast tanks are used to:
Without proper ballast:
even strong truss systems can fail
Why Use Water Ballast Instead of Steel Weight
1. Easy Transportation
empty → lightweight
filled on-site → heavy
2. Flexible Weight Control
3. Cost Efficiency
lower transport cost
reusable system
Application Scenarios
Stage Roof Truss Systems
→ Concert & Event Stage Solution
Truss Towers & Lighting Systems
→ Lighting Truss System
Line Array Speaker Support
→ Speaker Truss Systems
Outdoor Event Installations
→ Applications Overview
Engineering Insight
Wind Load is the Real Risk
Outdoor truss systems are affected by:
wind pressure
lateral forces
uneven load
Ballast is required to counteract these forces.
Stability = Weight + Base Area
System stability depends on:
ballast weight
base plate size
structure height
→ Load Analysis for Modular Stage Systems
Ground Support vs Anchoring
Ballast tanks are used when:
Safety Requirement (VERY IMPORTANT)
Incorrect ballast leads to:
structure tipping
collapse risk
serious safety hazards
→ Safety Standards & Engineering Constraints
Integration with Truss System
Ballast must match:
truss height
load capacity
structural type
→ Connection & Material System
FAQ
How much weight does it provide?
Up to 1 ton when filled with water.
Is it suitable for outdoor use?
Yes, it is specifically designed for outdoor stabilization.
Can it replace ground anchors?
Yes, when anchoring is not possible.
Is it reusable?
Yes, it is foldable and reusable.
