packing weight: 1200kg
packing volume: 10cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 5.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 2pcs |
| 2.00 m | 50×3.0 | CS289×289 | 2pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 8.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 2pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 5.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 4pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| Frame Tower | Spigot Sleeve Block S | 4pcs |
| Steel Base S | 4pcs |
| Top Section S | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 2 sets | .50 m | 50×3.0 | CS289×289 | 2pcs |
| 8.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 2pcs |
| 2.00 m | 50×3.0 | CS289×289 | 1pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 2.70 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 0pcs |
| 2.00 m | 50×3.0 | CS289×289 | 4pcs |
| .70 m | 50×3.0 | CS289×289 | 4pcs |
| 2.70 m Ladder truss | 6 sets | 3.00 m | 50×3.0 | CL30,289*50 | 0pcs |
| 2.00 m | 50×3.0 | CL30,289*50 | 6pcs |
| .70 m | 50×3.0 | CL30,289*50 | 6pcs |
| Roof Components |
| roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs |
| roof conner 5 ways, use for roof beam truss | CS289×289 | 0pcs |
| Connect plate with clamp | 2pcs |
| Single clamp | 12pcs |
| Double clamp | 8pcs |
| roof canopy material:pvc, Blue Colour or customized. | 86.26 | 1pcs |
packing weight: 900kg
packing volume: 6.5cbm
| Item | Specification | Quantity |
| Aluminium assembly stage | topping: 4x8ft
(1.22x2.44m) | wooden | 12 pcs |
| 1.22m stage brace | 18 pcs |
| 2.44m stage brace | 14 pcs |
| stand with extendable tube | 21 pcs |
| Stage adjustable base | 21 pcs |
| Stage Stair | wooden topping | total | 8 | steps | adjustable to the stage height | 2 pcs |

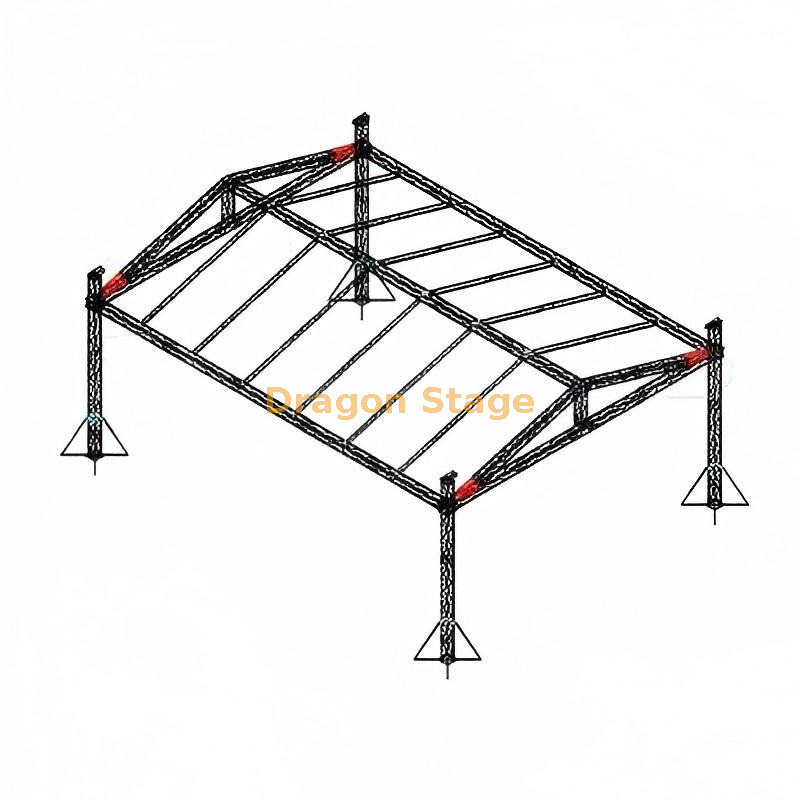

Square Aluminum Portable Truss Roof for Outdoor Concert 8x5x6m: Modular Event Stage System
1. Introduction: The Foundation of Large-Scale Live Production
The DragonStage Square Aluminum Portable Truss Roof System is a professional-grade, medium-sized outdoor stage structure, perfectly engineered for concerts, festivals, and public events that require a quick-deploy, reliable, and covered performance area. Sized at an efficient 8m wide x 5m deep with a significant 6m clear height, this system provides an optimized balance of footprint, capacity, and visual presence.
It is categorized as a Portable Truss Roof system, utilizing the industry-standard CS289x289 square truss profile for all major structural elements. This choice ensures ease of handling and speed of assembly, critical for event companies managing tight production schedules. The structure is an all-in-one package, integrating a robust roof grid, four-pillar ground support, and an adjustable stage platform.
2. Challenges & Solutions in Modern Event Construction
For medium-scale events, producers face challenges in delivering a safe, high-quality, weather-protected stage that can be efficiently transported and erected. This truss system is designed to meet these specific needs:
Mobility and Setup Speed: The system is highly portable, with a manageable total packing volume of 10CBM (truss structure) and a total truss packing weight of 1200kg, minimizing transportation costs and logistics complexity.
Structural Integrity and Lifting: Stability is ensured by the use of four main pillars, secured by four sets of Spigot Sleeve Blocks (S), Steel Bases (S), and Top Sections (S). Safety is managed during assembly using four 2-Ton Manual Hoists (BA05) for controlled roof elevation, allowing for precise rigging of the 8m x 5m roof grid.
Stage Customization: The inclusion of a modular stage platform that is adjustable in height (1.2m to 2.0m) and features two sets of stairs provides flexibility for various venue sightline requirements and easy performer access.
3. Key Features & Benefits
The 8x5x6m Square Aluminum Portable Truss Roof offers a professional suite of components for a safe and successful event.
Key Product Specifications
| Feature | Specification Details |
| Overall Dimensions (L x W x H) | 8m x 5m x 6m (approximate) |
| Truss Series | CS289x289 (Square Spigot Truss) |
| Main Tube Size | 50mm x 3.0mm (used for all beams and pillars) |
| Connection Type | Spigot (using Conical Coupler, Safety Clip, and Pin) |
| Pillar Configuration | 4-Pillar Ground Support |
| Stage Platform Size | 7.32m x 4.88m (24ft x 16ft, approx.) |
| Stage Height | Adjustable from 1.2m to 2.0m |
| Roof Canopy | 86.26 sqm PVC (Blue or customized color) |
| Structural Accessories | 4x Sleeve Block (S), 4x Steel Base (S), 4x Top Section (S) |
| Lifting Gear | 4x Manual Hoist (BA05, 2 Tons), 4x Fibre Sling (2 Tons, 3m) |
| Stability Enhancement | 16x Long Outriggers |
| Total Truss Packing Weight | 1200kg |
Integrated Components
Roof Truss Grid: Constructed from CS289x289 truss (3.00m, 2.00m, 1.00m lengths) and CL30 Ladder Truss for the oblique sections, optimized to carry lighting and sound equipment.
Stage Deck: The aluminum assembly stage platform consists of wooden 4x8ft (1.22x2.44m) topping panels, along with all necessary braces and adjustable bases.
Rigging and Safety: Includes necessary rigging hardware such as Single Clamps (12pcs) and Double Clamps (8pcs) for securing fixtures, along with the 16 Long Outriggers for increased footprint and wind-load resistance.
4. Practical FAQ for Stage Professionals
Q: What type of events is this truss system best suited for?
A: Due to its medium-duty classification and size, it is ideal for corporate events, product launches, small to mid-sized concerts, festivals, and theatrical performances where the throw distance for lighting/sound is moderate.
Q: What is the benefit of the CS289x289 truss profile?
A: The CS289x289 is a standard medium-duty square truss. It provides a good balance of load capacity for its size, is cost-effective, and is lightweight enough for efficient touring and manual setup.
Q: Does the system include all stage hardware shown?
A: Yes, the system includes the stage topping, braces, adjustable stands, adjustable bases, and stage stairs as specified, making it a complete stage and roof solution.
Q: How is the roof secured for outdoor events?
A: The system requires anchoring or ballasting through the Steel Base (S) and the 16 Long Outriggers. Proper anchoring is essential, and load calculations should be used to determine the required ballast weight based on local wind speed regulations.
5. Strong Call to Action (CTA)
Equip your next outdoor event with the reliable, professional, and portable DragonStage Square Aluminum Portable Truss Roof 8x5x6m.
Contact us for a detailed quotation and lead time for your touring or event requirements.
