Outdoor Stage Truss Roof System 11x8x6m

5 0 Reviews

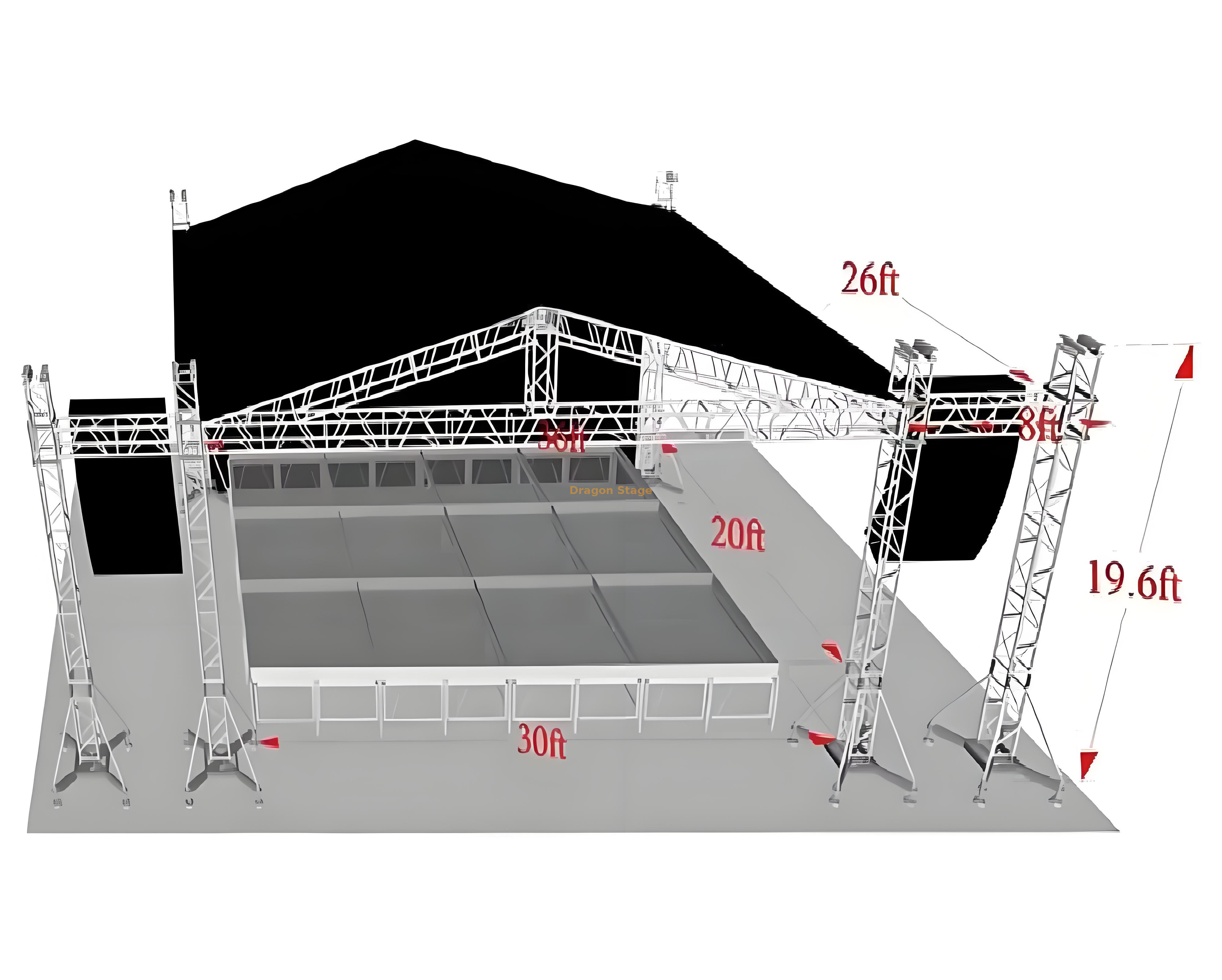

this is a custom spigot truss type Outdoor Stage Truss Roof System

the net dimensions 36x26x20ft, the speaker truss wing is 8ft wide

Price: ￥ 72096


Availability:



Inquire

Brand:
Dragon Stage

Product Description

Outdoor Stage Truss Roof System 11x8x6m

packing weight: 1900kg

packing volume: 16cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
11.00 m Beam(front)	2 sets	3.00 m	50×3.0	CS389×389	6pcs
		2.00 m	50×3.0	CS389×389	2pcs
		1.00 m	50×3.0	CS389×389	0pcs
8.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS389×389	4pcs
		2.00 m	50×3.0	CS389×389	2pcs
		1.00 m	50×3.0	CS389×389	0pcs
5.00 m Pillar	4 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	4pcs
		1.00 m	50×3.0	CS289×289	0pcs
beam cube	6 faces	CS389×389			0pcs
Frame Tower	Spigot Sleeve Block S				4pcs
	Steel Base S				4pcs
	Top Section S				4pcs
	Manual hoist,BA05 2Tons				4pcs
	Spigot Hinge Section,Height 1m				4pcs
	Fibre sling,BA04,2 tons 3m				4pcs
	Long outrigger				16pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	2 sets	1.10 m	50×3.0	CS289×289	2pcs
8.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	2pcs
		2.00 m	50×3.0	CS289×289	1pcs
		1.00 m	50×3.0	CS289×289	0pcs
5.70 m Oblique Beam	4 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	4pcs
		.70 m	50×3.0	CS289×289	4pcs
5.70 m Ladder truss	6 sets	3.00 m	50×3.0	CL30,289*50	6pcs
		2.00 m	50×3.0	CL30,289*50	6pcs
		.70 m	50×3.0	CL30,289*50	6pcs
Roof Components	4	roof conner 4 ways, use for roof beam truss		CS289×289	2pcs
	5	roof conner 5 ways, use for roof beam truss		CS289×289	0pcs
	1	Connect plate with clamp		CS289×289	2pcs
		Single clamp			12pcs
		Double clamp			8pcs
		roof canopy material:pvc, Blue Colour or customized.		165.46	1pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
2.00 m Wings Beam	2 sets	3.00 m	50×3.0	CS389×389	0pcs
		2.00 m	50×3.0	CS389×389	2pcs
		1.00 m	50×3.0	CS389×389	0pcs
5.00 m Wings Pillar	2 sets	3.00 m	50×3.0	CS289×289	2pcs
		2.00 m	50×3.0	CS289×289	2pcs
		1.00 m	50×3.0	CS289×289	0pcs
Wings Tower	Spigot Sleeve Block S				2pcs
	Steel Base S				2pcs
	Top Section S				2pcs
	Manual hoist,BA05 2Tons				2pcs
	Spigot Hinge Section,Height 1m				2pcs
	Fibre sling,BA04,2 tons 3m				2pcs
	Long outrigger				8pcs
Truss Accessory		Conical coupler & Safrty clip & pin			whole set

This is a custom spigot truss type Outdoor Stage Truss Roof System with net dimensions of 36x26x20ft, and the speaker truss wing is 8ft wide. This system is designed to provide a sturdy and reliable structure for outdoor events, ensuring that your stage setup is both functional and visually appealing. The custom spigot truss design allows for easy assembly and disassembly, making it a convenient option for temporary structures. The spacious dimensions accommodate various stage setups and equipment, while the 8ft wide speaker truss wing ensures optimal sound distribution. This Outdoor Stage Truss Roof System is perfect for concerts, festivals, and other large-scale outdoor events.
