| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 15.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | BS400×400 | 10pcs |
| 2.00 m | 50×3.0 | BS400×400 | 0pcs |
| 1.00 m | 50×3.0 | BS400×400 | 2pcs |
| 9.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | BS400×400 | 6pcs |
| 2.00 m | 50×3.0 | BS400×400 | 0pcs |
| 1.00 m | 50×3.0 | BS400×400 | 0pcs |
| 5.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | BS300×300 | 4pcs |
| 2.00 m | 50×3.0 | BS300×300 | 4pcs |
| 1.00 m | 50×3.0 | BS300×300 | 0pcs |
| Frame Tower | Bolt Truss Sleeve Block S | 4pcs |
| Steel Base S | 4pcs |
| Top Section S | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |

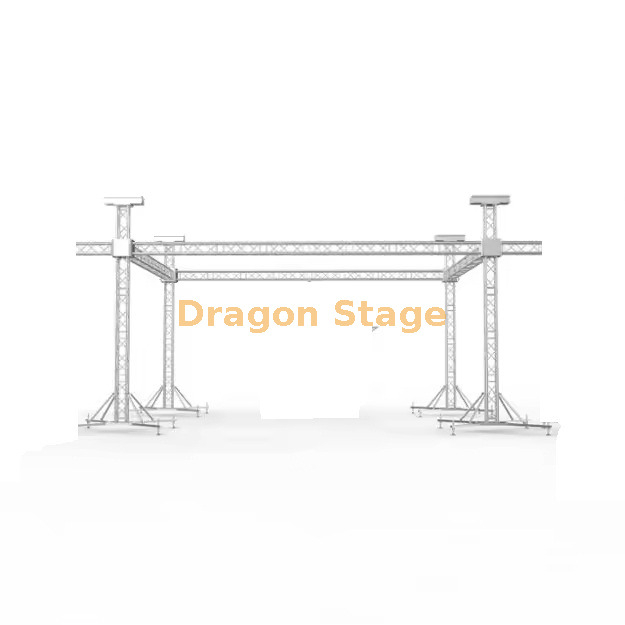

The Outdoor Aluminum Stage Truss 15x9x6m is an industrial-strength, ground-support solution engineered for versatility across festivals, corporate galas, and theatrical performances. With a massive 135m² footprint and a professional 6-meter vertical lift, this system provides the scale needed for high-impact production while maintaining the portability of a modular aluminum frame.
Dimensions: 15m (L) x 9m (W) x 6m (H).
Configuration: 4-Pillar or 6-Pillar Ground Support options available.
Material: Corrosion-resistant 6061 Aluminum Alloy.
Main Tube: 50x3.0mm; Brace Tube: 20x2.0mm / 25x2.0mm.
Certifications: TUV and CE certified for safe public use in outdoor environments.
