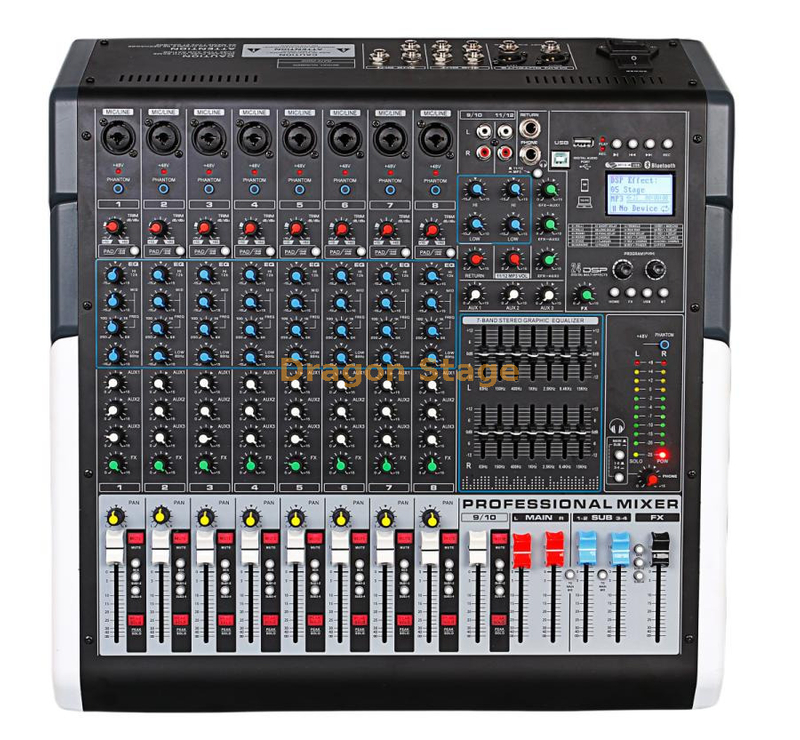

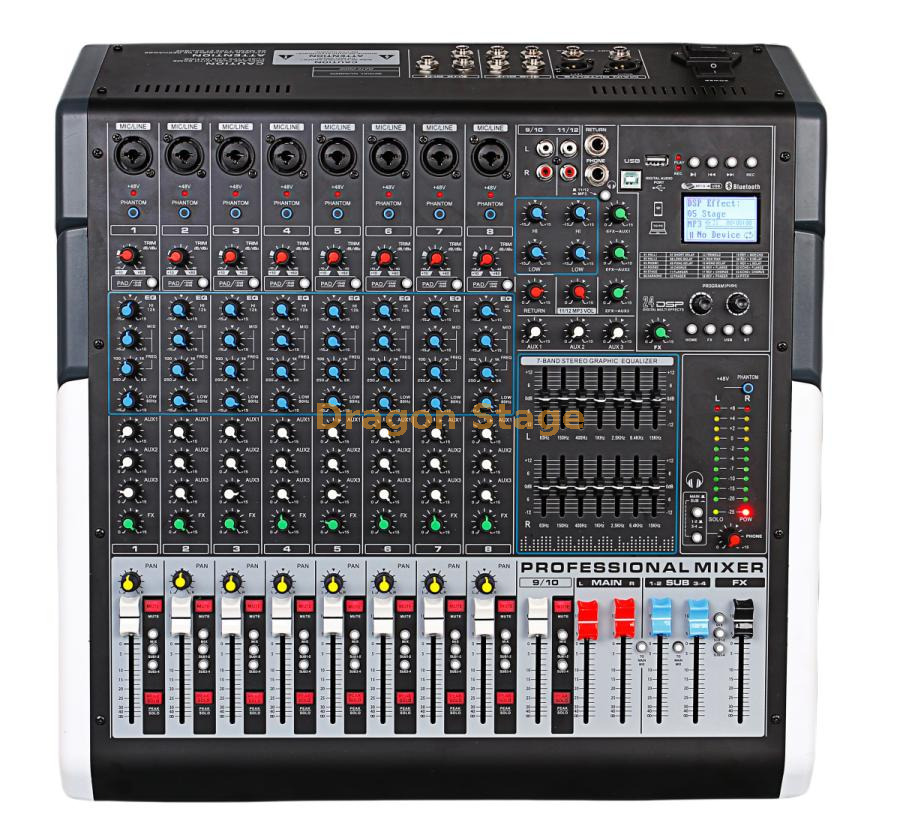

HTS10 8 Channel Professional Audio Mixer with DSP Effects
The HTS10 8 Channel Audio Mixer is a compact professional mixing console designed for small and medium-sized stage sound systems, live performances, conferences and commercial audio applications.
Featuring 8 mono microphone inputs and 2 stereo inputs, the HTS10 provides flexible signal management for different audio sources while maintaining a compact and practical design. Each input channel includes a four-band equalizer with adjustable mid-frequency sweep EQ, independent mute control and LED monitoring indicators for precise audio adjustment.
The mixer integrates a professional 24 DSP effects processor, multiple AUX outputs, group outputs, Bluetooth playback, MP3 recording and built-in USB sound card functions, providing a complete audio control solution for modern event applications.
With professional features including 48V phantom power with independent channel switches, dual 7-band master EQ and flexible signal routing, the HTS10 is suitable for users who require professional mixing functions in a compact format.
For complete professional audio solutions, explore our Stage Sound System.
Product Features
The HTS10 provides:
8 mono microphone input channels
2 stereo input channels
Independent mute function for each channel
LED monitoring indicators for each input channel
This configuration is suitable for small live performances, presentations, conference systems and portable sound applications.
Built-In 24 DSP Effects Processor
The integrated DSP system provides:
24 selectable digital effects
Independent effect adjustment
FX effects routing to AUX outputs
The built-in effects processor reduces the need for additional external equipment and simplifies system configuration.
Professional EQ Control
Each input channel features:
The master output section includes dual 7-band equalizers for overall system tuning.
Flexible Output Routing
The HTS10 supports:
Left and right main outputs
Three AUX auxiliary outputs
Four group outputs
FX effects added to AUX outputs
The mixer can be integrated with professional PA Speakers and Power Amplifiers to build complete sound reinforcement systems.
The HTS10 includes:
Bluetooth audio playback
MP3 player with recording function
2.5-inch dot matrix display
Built-in USB sound card
Connection with mobile phones or computers through data cable
These functions provide convenient solutions for presentations, entertainment events and live sound applications.
Professional Phantom Power Control
The mixer supports:
This allows professional condenser microphones and compatible audio equipment to be connected safely.
Why Choose the HTS10 Audio Mixer?
Compact Design with Professional Functions
The HTS10 combines professional mixing capabilities with a compact chassis, making it suitable for applications where space efficiency and portability are important.
Designed for Small and Medium Audio Systems
The HTS10 is suitable for:
Real installation examples are available in our Sound Solution Cases.
The HTS10 provides:
Signal-to-noise ratio above 93dB
Total harmonic distortion of 0.05%
Frequency response from 20Hz to 20kHz (+3dB)
ensuring clear and stable audio performance for professional applications.
Technical Specifications
Specification | HTS10 |
|---|
Product Type | Professional Audio Mixer |
Mono Microphone Inputs | 8 Channels |
Stereo Inputs | 2 Channels |
Channel EQ | 4-Band EQ with Mid Sweep |
DSP Effects | 24 Built-in Effects |
Main Outputs | Left / Right Stereo Output |
AUX Outputs | 3 AUX Outputs |
Group Outputs | 4 Group Outputs |
Phantom Power | 48V Independent Channel Control |
Master EQ | Dual 7-Band Equalizer |
MP3 Player | Bluetooth + Recording Function |
MP3 Display | 2.5-inch Dot Matrix Screen |
USB Sound Card | Built-in |
Signal-to-Noise Ratio | >93dB |
THD | 0.05% |
Frequency Response | 20Hz–20kHz (+3dB) |
AUX Send Output Level | 0dBu |
Maximum Output Level | 17dBu (1kΩ, THD=0.5%) |
Headphone Output Maximum Level | 17dBu / 150Ω (+25dBm) |
Power Supply | 100–240V, 6A, 250V |
Product Dimensions | 455 × 475 × 125mm |
Packing Dimensions | 515 × 185 × 570mm |
Net Weight | 5.9kg |
Typical Applications
The HTS10 8 Channel Audio Mixer is suitable for:
Compatible Products
The HTS10 can be integrated with:
FAQ
The HTS10 provides 8 mono microphone inputs and 2 stereo inputs, allowing connection of multiple microphones, instruments and audio sources.
2. Does the HTS10 include built-in DSP effects?
Yes. The HTS10 includes 24 DSP digital effects, and each effect can be adjusted independently.
3. Does the HTS10 support condenser microphones?
Yes. The HTS10 provides 48V phantom power with independent channel switches for professional condenser microphones.
4. Can the HTS10 connect to a computer?
Yes. The built-in USB sound card allows connection with computers or mobile devices through a data cable for recording and playback.
5. What applications is the HTS10 suitable for?
The HTS10 is suitable for small and medium-sized stage performances, conferences, churches, schools, hotels and professional portable audio systems.
Short Answer Snippet
The HTS10 is an 8 channel professional audio mixer with 8 mono microphone inputs, 2 stereo inputs, 24 DSP effects, USB sound card, Bluetooth playback and 48V phantom power. It is designed for small and medium stage sound systems, conferences and professional audio applications.
