Discover the LC Column Array Speaker System from Dragon Stage. Designed for conference centers, hotels, lecture halls, churches and architectural installations, the LC Series combines slim line-array columns with powerful subwoofers to deliver exceptional speech intelligibility, controlled sound coverage and elegant system design.
Premium Line-Source Audio for Modern Architectural Spaces
The LC Column Array Speaker System is engineered to provide outstanding speech intelligibility, smooth frequency response and controlled sound dispersion in modern architectural environments.
Unlike conventional point-source loudspeakers, the LC Series employs a vertical line-array column design that projects sound farther while minimizing ceiling and floor reflections. This results in clearer speech, more even audience coverage and a more comfortable listening experience.
The LC Series combines slim column loudspeakers with high-performance powered subwoofers, creating elegant full-range sound systems suitable for premium conference venues and commercial installations.
Learn more about complete professional audio systems on our Stage Sound System page:
The line-source column design improves speech transmission over long distances while reducing unwanted reflections, making the LC Series ideal for conference presentations and lecture environments.
Elegant Architectural Appearance
With its slim, modern profile, the LC Series integrates naturally into hotels, auditoriums, exhibition centers and contemporary architectural spaces without distracting from interior design.
Wide and Consistent Coverage
The optimized 120° × 60° horizontal coverage provides uniform sound distribution across the audience while maintaining excellent clarity throughout the venue.
Complete Active Column System
Each LC system combines:
High-performance column loudspeaker
Matching active subwoofer
Integrated amplifier
DSP optimization
to provide a complete plug-and-play professional audio solution.
Typical Applications
The LC Series is ideal for:
Conference centers
Hotels
Banquet halls
Exhibition centers
Churches
Auditoriums
Museums
Corporate headquarters
Lecture halls
Government buildings
Premium multimedia rooms
Project examples are available in our Sound Solution Cases:

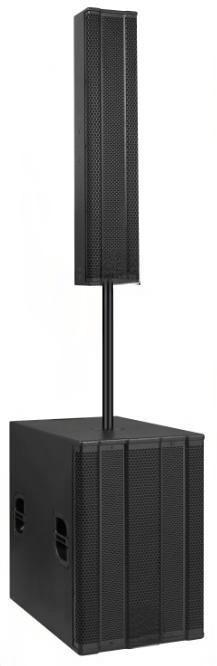

The LC640 combines four 6-inch low-frequency drivers with a 1.4-inch compression driver to provide balanced speech reinforcement and smooth musical reproduction for conference halls and commercial installations.
Best For: Conference rooms, exhibition halls, lecture theaters and churches.
Specifications
Specification
LC640
Components
4 × 6" LF + 1 × 1.4" HF (34 mm)
Rated Power
400 W
Program Power
1600 W
Frequency Response
80 Hz – 20 kHz
Dispersion
120° × 60°
Sensitivity
94 dB
Maximum SPL
116 dB
Nominal Impedance
8 Ω
Dimensions
915 × 185 × 230 mm
Shipping Dimensions
980 × 480 × 310 mm
Net / Gross Weight
17 / 38 kg (2 pcs)

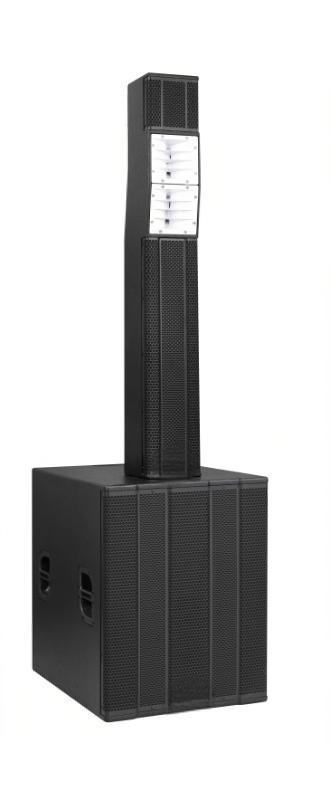

LC650 Column Speaker
The LC650 features four 6.5-inch woofers, a dedicated 6.5-inch midrange and a 1.4-inch compression driver for higher output and extended frequency response, making it suitable for larger conference venues and premium installations.
Best For: Hotels, banquet halls, auditoriums and houses of worship.
Specifications
Specification
LC650
Components
4 × 6.5" LF + 1 × 6.5" MF + 1 × 1.4" HF
Rated Power
500 W
Program Power
2000 W
Frequency Response
75 Hz – 20 kHz
Dispersion
120° × 60°
Sensitivity
98 dB
Maximum SPL
120 dB
Nominal Impedance
8 Ω
Dimensions
1288 × 185 × 223 mm
Shipping Dimensions
1370 × 260 × 300 mm
Net / Gross Weight
25 / 28 kg
LC212BA Active Dual 12-inch Subwoofer
Designed specifically for the LC640 system, the LC212BA delivers powerful low-frequency reinforcement while integrating amplification for a complete active column solution.
Specifications
Specification
LC212BA
Components
2 × 12"
Rated Power
650 W
Program Power
2600 W
Frequency Response
38 Hz – 200 Hz
Sensitivity
100 dB
Maximum SPL
123 dB
Nominal Impedance
8 Ω
Dimensions
700 × 420 × 690 mm
Shipping Dimensions
780 × 500 × 760 mm
Net / Gross Weight
46 / 51 kg
Built-in Amplifier
400 + 1200 W / 8 Ω
LC118BA Active Single 18-inch Subwoofer
The LC118BA is designed for the LC650 column speaker, providing extended bass response and higher acoustic output for larger venues.
