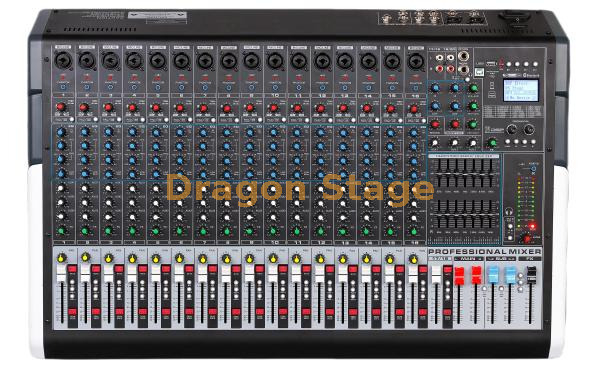

HTS16 16 Channel Professional Audio Mixer with DSP Effects
The HTS16 Audio Mixer is a professional multi-channel mixing console designed for stage sound reinforcement, live performances, recording applications and commercial audio systems.
Featuring 16 mono microphone inputs and 2 stereo inputs, the HTS16 provides flexible signal management for different professional audio setups. Each input channel includes a four-band equalizer, adjustable mid-frequency sweep EQ and independent mute control, allowing sound engineers to achieve precise audio adjustment.
The mixer integrates 24 DSP digital effects, multiple AUX outputs, group outputs, Bluetooth playback, MP3 recording and built-in USB sound card functions, providing a complete audio control solution for modern event sound systems.
With professional features including 48V phantom power, independent phantom power switches per channel, dual 7-band master EQ and LED monitoring indicators, the HTS16 is suitable for professional users who require reliable and versatile sound management.
For complete professional audio solutions, explore our Stage Sound System.
Product Features
The HTS16 provides:
16 mono microphone inputs
2 stereo input channels
Independent channel mute function
LED monitoring indicators for each channel
This configuration allows the mixer to handle multiple microphones, instruments and playback sources during professional events.
Built-In DSP Effects Processor
The integrated DSP processor provides:
24 selectable digital effects
Independent effect adjustment
FX routing to AUX outputs
The built-in effects help simplify system setup by reducing the need for additional external processors.
Professional EQ Control
Each input channel features:
The master output also includes a dual 7-band equalizer for overall system tuning.
Multiple Output Options
The HTS16 provides flexible signal routing:
Left and right main outputs
Three AUX auxiliary outputs
Four group outputs
FX effects routed to AUX outputs
This makes it suitable for complex stage monitoring and multi-zone sound applications.
Compatible loudspeaker systems can be built with our PA Speakers and Line Array Speakers.
The HTS16 includes:
Bluetooth audio playback
MP3 player with recording function
2.5-inch dot matrix display
Built-in USB sound card
Connection with mobile phones or computers through data cable
These functions provide convenient solutions for modern live sound and multimedia applications.
Professional Phantom Power Supply
The mixer supports:
This allows professional condenser microphones and other compatible audio devices to be connected safely.
Why Choose the HTS16 Audio Mixer?
Complete Audio Control Solution
The HTS16 combines mixing, effects processing, recording and multimedia playback in one professional console, reducing the need for additional external equipment.
Designed for Live Sound Applications
With multiple outputs, DSP effects and flexible signal routing, the HTS16 is suitable for:
Stage performances
Concert events
Corporate meetings
Churches
Conference halls
Rental sound systems
Real installation examples are available in our Sound Solution Cases.
The HTS16 provides:
Signal-to-noise ratio above 93dB
Low total harmonic distortion of 0.05%
Wide frequency response from 20Hz to 20kHz
ensuring clear and stable audio performance for professional applications.
Technical Specifications
Specification | HTS16 |
|---|
Product Type | Professional Audio Mixer |
Mono Microphone Inputs | 16 Channels |
Stereo Inputs | 2 Channels |
Channel EQ | 4-Band EQ with Mid Sweep |
DSP Effects | 24 Built-in Effects |
Main Outputs | Left / Right Stereo Output |
AUX Outputs | 3 AUX Outputs |
Group Outputs | 4 Group Outputs |
Phantom Power | 48V Independent Channel Control |
Master EQ | Dual 7-Band Equalizer |
MP3 Player | Bluetooth + Recording Function |
MP3 Display | 2.5-inch Dot Matrix Screen |
USB Sound Card | Built-in |
Signal-to-Noise Ratio | >93dB |
THD | 0.05% |
Frequency Response | 20Hz–20kHz (+3dB) |
AUX Send Output Level | 0dBu |
Maximum Output Level | 17dBu (1kΩ, THD=0.5%) |
Headphone Output Maximum Level | 17dBu / 150Ω (+25dBm) |
Power Supply | 100–240V, 6A, 250V |
Product Dimensions | 690 × 475 × 125mm |
Packing Dimensions | 755 × 185 × 570mm |
Net Weight | 8.6kg |
Typical Applications
The HTS16 Professional Audio Mixer is suitable for:
Compatible Products
The HTS16 can be integrated with:
FAQ
Yes. The HTS16 is designed for professional live sound applications with multiple inputs, DSP effects, AUX outputs and flexible routing options.
2. How many microphones can be connected to the HTS16?
The HTS16 provides 16 mono microphone input channels, suitable for multi-person performances, conferences and stage applications.
3. Does the HTS16 support condenser microphones?
Yes. Each channel supports independent 48V phantom power, allowing connection of professional condenser microphones.
4. Does the HTS16 have built-in effects?
Yes. The mixer includes 24 DSP digital effects that can be adjusted and routed to AUX outputs.
5. Can the HTS16 connect to a computer?
Yes. The built-in USB sound card allows connection with computers or mobile devices through a data cable for recording and playback applications.
Short Answer Snippet
The HTS16 is a 16-channel professional audio mixer featuring DSP effects, USB sound card, Bluetooth MP3 playback, 48V phantom power and multiple output routing options. It is designed for stage sound, live events, conferences and professional audio systems.
